RCCN>>Product>>Bushings>> GROMMET

GROMMET

  GROMMET

GROMMET

GROMMET GROMMET

Material: PVC

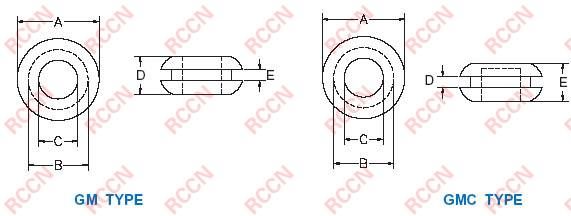

Item No. A B C D E
Packing
OPEN CLOSED
GM-0603 GMC-0603 8.5 6.0 3.0 4.7 1.7 100pcs
GM-0705 GMC-0705 10.2 7.2 5.0 4.4 1.7
GM-1006 GMC-1006 13.3 10.0 6.4 6.3 1.7
GM-1410 GMC-1410 19.5 13.9 10.5 6.4 3.4
GM-2015 GMC-2015 23.7 20.1 15.5 6.1 1.7
GM-2518 GMC-2518 29.9 25.1 18.9 7.2 1.5
GM-3225 GMC-3225 38.1 31.7 25.0 7.8 1.5
