Snap Bushing-rsb

 Snap Bushing-rsb

Snap Bushing-rsb



Snap Bushing-rsb Snap Bushing-rsb

Material: . approved Nylon 66, 94V-2 (Black)

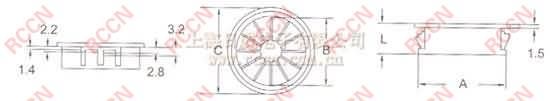

Item No.
Mounting
Hole
A
B
C
L
Packing
RSB-16 15.9 13.2 20.4 10.3
100pcs
RSB-19 19 14.7 24.0 9.9
RSB-21 20.6 16.7 24.3 9.9
RSB-22 22.2 18.3 25.4 11.5
RSB-25 25.4 19 27 11.5
RSB-28 27.8 20.6 29.4 11.5
RSB-35 34.9 25.4 36.5 11.5
