RCCN AC Adjustable Cable Clamp

RCCN  AC Adjustable Cable Clamp



RCCN  AC Adjustable Cable Clamp


RCCN  AC Adjustable Cable Clamp RCCN  AC Adjustable Cable Clamp

UL approved NYLON 66(natural),fireproof 94V-2 Material:
,with 3M tape
Color:natural
Page number :B60

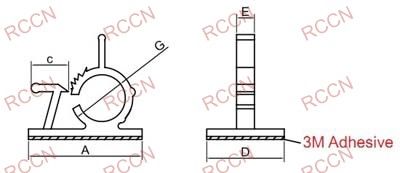

Item No.
Wire harness
range G
A
B
C
D
E


Packing


AC-0810 7.5-9.5 24.6 10.2 8.0 18.5 10.0
100pcs
AC-1113 11-13.5 24.9 12.2 7.25 14.9 10.0
AC-1518 15-18 34.3 15.0 8.8 18.5 12.7
AC-1621 16-21 35.8 17.1 10.1 18.7 12.7
AC-1925 19-25 39.4 19.8 10.2 19.4 13.0





RCCN  AC Adjustable Cable Clamp
