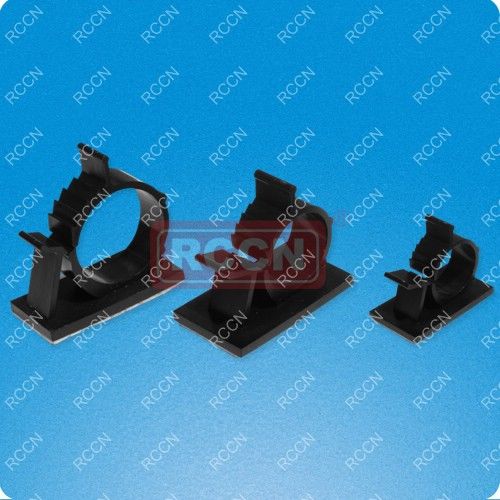

RCCN AP Adjustable Cable Clamp

RCCN  AP Adjustable Cable Clamp



RCCN  AP Adjustable Cable Clamp

RCCN  AP Adjustable Cable Clamp RCCN  AP Adjustable Cable Clamp

Material:UL approved NYLON 66(black),fireproof 94V-2
 with adhesive tape
Color:black
Page number :B61

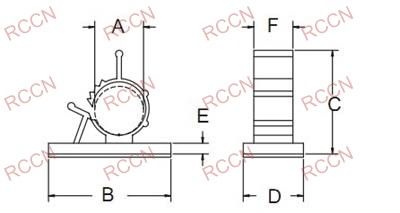

Item No.
Wire harness
A
B
C
D
E
F

Packing
AP-0810 7.9~10.3 25.4 22.2 19.1 1.6 10.2

100pcs

AP-1013 10.0~12.5 31.8 27.8 19.1 1.6 10.2
AP-1316 12.6~15.4 37.0 31.8 18.4 3.0 12.1
AP-1720 16.5~20.1 42.0 37.0 25.0 3.0 12.7
AP-2225 22.2~25.4 41.8 43.5 21.5 3.0 11.3





RCCN  AP Adjustable Cable Clamp
