RCCN UC Cable Clamp

RCCN  UC Cable Clamp



RCCN  UC Cable Clamp


RCCN  UC Cable Clamp RCCN  UC Cable Clamp

Material:UL approved NYLON 66(natural),fireproof 94V-2
Page number :B59

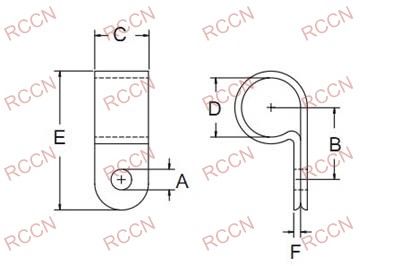

Item No.

Thread
hole
A

B

Width
C

Band dia.(inner)
D

Length
E

Thickness
F

Packing

Natural Black
UC-0
UC-0B 4.8 8.0 9.6 3.2(1/8")1分 17 1.2
每包100pcs
UC-0.5
UC-0.5B
4.8 9.2 9.6 5.0(3/16")分半 18.6 1.2
UC-1
UC-1B
4.6 10.0 10.0 6.35(1/4")2分 20.0 1.4
UC-1.5
UC-1.5B
4.6 12.0 10.0 7.9(5/16")2分半 22.0 1.5
UC-2
UC-2B
4.6 12.5 12.0 9.5(3/8")3分 24.0 1.5
UC-3
UC-3B 5.0 15.2 12.0 12.7(1/2")4分 31.0 1.5
UC-4
UC-4B 4.6 18.2 12.0 15.8(5/8")5分 34.3 1.5
UC-5
UC-5B
4.6 18.2 12.0 19.4(3/4")6分 35.0 1.5
UC-6
UC-6B
4.6 22.0 12.0 25.4(1")1寸 43.0 1.8
UC-6.5
UC-6.5B 4.6 24.0 12.0 27.5(1 1/16") 50.0 1.8
UC-7
UC-7B 4.6 26.2 12.0 31.8(1 1/4")1寸 2分 50.0 1.8
UC-9
UC-9B
4.6 30.0 12.0 36.7(1 1/2")1寸 4分 50.0 1.8





RCCN  UC Cable Clamp
