RCCN N Cable Marker


RCCN N Cable Marker

RCCN N Cable Marker





Material:rigid P.V.C.(natural).
Features:coat this cable marker after wiring,uneasy to fall off
Use:marked cables after installing
Order part no.:N-1(0) ,means marking with“0”
Page number :B24

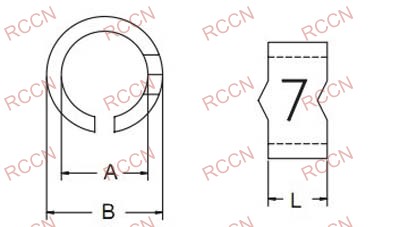

ITEM No.		 Suitable cable
in square
mm2		 Size
Std.Markings		 Packing
L A B
N-1 0.75 3.0 2.7 3.9 0,1,2,...9
A,B,C,D..Z
+,-,Blank		 30 pcs
per stick
1.0
1.25
N-2 2.0 3.0 3.2 4.6
3.5
N-3 3.5 3.0 4.4 5.8
5.5
