RCCN HVDR Narrow Slot Wiring Duct

 RCCN HVDR Narrow Slot Wiring Duct

RCCN HVDR Narrow Slot Wiring Duct

American standard Narrow slot/finger design provides more slots to closer fit the spacing of high-density terminal locks
and other hardware used countries such as USA,
Certificates:UL:E306674 CE:EN50085 RoHS,REACH。
Made of rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Work Temperature:-40°C to 65°C
RCCN HVDR Narrow Slot Wiring Duct

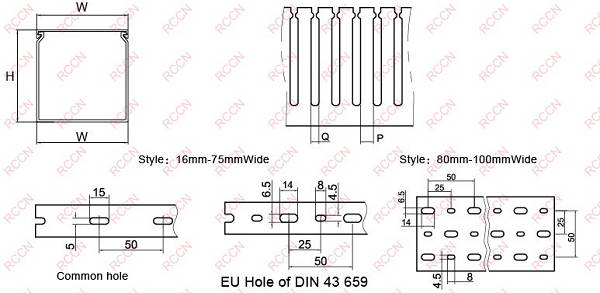

Item No.

W*H

Q

 P

Wire
capability
/2.0sp

Pack/M
Gray White Blue Black
HVDR1616 HVDR1616W HVDR1616E HVDR1616B 16*16 5 8 3~10pcs

300M
HVDR1525 HVDR1525W HVDR1525E HVDR1525B 15*25 5 8 5~15pcs 260M
HVDR2025 HVDR2025W HVDR2025E HVDR2025B 20*20 5 8 5~15pcs 200M
HVDR2525 HVDR2525W HVDR2525E HVDR2525B 25*25 5 8 10~25pcs 200M
HVDR3025 HVDR3025W HVDR3025E HVDR3025B 30*25 5 8 12~28pcs 160M
HVDR2530 HVDR2530W HVDR2530E HVDR2530B 25*30 5 8 25~35pcs 160M
HVDR3030 HVDR3030W HVDR3030E HVDR3030B 30*30 5 8 25~35pcs 140M
HVDR4030 HVDR4030W HVDR4030E HVDR4030B 40*30 5 8 30~40pcs 100M
HVDR3535 HVDR3535W HVDR3535E HVDR3535B 35*35 5 8 35~45pcs 112M
HVDR5035 HVDR5035W HVDR5035E HVDR5035B 50*35 5 8 40~60pcs 88M
HVDR2540 HVDR2540W HVDR2540E HVDR2540B 25*40 5 8 20~25pcs 112M
HVDR4040 HVDR4040W HVDR4040E HVDR4040B 40*40 5 8 60~70pcs 100M
HVDR6040 HVDR6040W HVDR6040E HVDR6040B 60*40 5 8 100~115pcs 68M
HVDR8040 HVDR8040W HVDR8040E HVDR8040B 80*40 5 8 120~135pcs 48M
HVDR10040 HVDR10040W HVDR10040E HVDR10040B 100*40 5 8 120~135pcs 32M
HVDR2545 HVDR2545W HVDR2545E HVDR2545B 25*45 5 8 20~25pcs 104M
HVDR3345 HVDR3345W HVDR3345E HVDR3345B 33*45 5 8 40~55pcs 108M
HVDR4545 HVDR4545W HVDR4545E HVDR4545B 45*45 5 8 60~70pcs 72M
HVDR6545 HVDR6545W HVDR6545E HVDR6545B 65*45 5 8 110~120pcs 56M
HVDR2550 HVDR2550W HVDR2550E HVDR2550B 25*50 5 8 20~30pcs 100M
HVDR3050 HVDR3050W HVDR3050E HVDR3050B 30*50 5 8 25~40pcs 84M
HVDR3550 HVDR3550W HVDR3550E HVDR3550B 35*50 5 8 40~60pcs 80M
HVDR4050 HVDR4050W HVDR4050E HVDR4050B 40*50 5 8 60~70pcs 68M
HVDR4550 HVDR4550W HVDR4550E HVDR4550B 45*50 5 8 70~80pcs 60M
HVDR5050 HVDR5050W HVDR5050E HVDR5050B 50*50 5 8 80~90pcs 50M
HVDR6050 HVDR6050W HVDR6050E HVDR6050B 60*50 5 8 100~120pcs 48M
HVDR8050 HVDR8050W HVDR8050E HVDR8050B 80*50 5 8 160~180pcs 40M
HVDR10050 HVDR10050W HVDR1005E HVDR10050B 100*50 5 8 200~250pcs 26M
HVDR2560 HVDR2560W HVDR2560E HVDR2560B 25*60 5 8 40~50pcs 100M
HVDR3060 HVDR3060W HVDR3060E HVDR3060B 30*60 5 8 60~80pcs 80M
HVDR4060 HVDR4060W HVDR4060E HVDR4060B 40*60 5 8 100~115pcs 60M
HVDR4560 HVDR4560W HVDR4560E HVDR4560B 45*60 5 8 110~125pcs 30M
HVDR5060 HVDR5060W HVDR5060E HVDR5060B 50*60 5 8 120~135pcs 60M
HVDR6060 HVDR6060W HVDR6060E HVDR6060B 60*60 5 8 120~135pcs 48M
HVDR8060 HVDR8060W HVDR8060E HVDR8060B 80*60 5 8 180~210pcs 36M
HVDR10060 HVDR10060W HVDR10060E HVDR10060B 100*60 5 8 240~290pcs 28M
HVDR11060 HVDR11060W HVDR11060E HVDR11060B 110*60 5 8 250~300pcs 48M
HVDR2565 HVDR2565W HVDR2565E HVDR2565B 25*65 5 8 40~50pcs 88M
HVDR3365 HVDR3365W HVDR3365E HVDR3365B 33*65 5 8 40~70pcs 80M
HVDR4565 HVDR4565W HVDR4565E HVDR4565B 45*65 5 8 110~120pcs 52M
HVDR6565 HVDR6565W HVDR6565E HVDR6565B 65*65 5 8 180~200pcs 44M
HVDR2580 HVDR2580W HVDR2580E HVDR2580B 25*80 5 8 100~120pcs 72M
HVDR3080 HVDR3080W HVDR3080E HVDR3080B 30*80 5 8 110~125pcs 56M
HVDR3580 HVDR3580W HVDR3580E HVDR3580B 35*80 5 8 110~130pcs 56M
HVDR4080 HVDR4080W HVDR4080E HVDR4080B 40*80 5 8 140~160pcs 48M
HVDR4580 HVDR4580W HVDR4580E HVDR4580B 45*80 5 8 140~160pcs 40M
HVDR5080 HVDR5080W HVDR5080E HVDR5080B 50*80 5 8 160~180pcs 40M
HVDR5580 HVDR5580W HVDR5580E HVDR5580B 55*80 5 8 160~180pcs 32M
HVDR6080 HVDR6080W HVDR6080E HVDR6080B 60*80 5 8 180~210pcs 32M
HVDR8080 HVDR8080W HVDR8080E HVDR8080B 80*80 5 8 240~290pcs 24M
HVDR10080 HVDR10080W HVDR10080E HVDR10080B 100*80 5 8 260~350pcs 24M
HVDR12080 HVDR12080W HVDR12080E HVDR12080B 120*80 5 8 280~380pcs 16M
HVDR14080 HVDR14080W HVDR14080E HVDR14080B 140*80 5 8 350~450pcs 16M
HVDR25100 HVDR25100W HVDR25100E HVDR25100B 25*100 5 8 110~160pcs 60M
HVDR33100 HVDR33100W HVDR33100E HVDR33100B 33*100 5 8 130~175pcs 44M
HVDR40100 HVDR40100W HVDR40100E HVDR40100B 40*100 5 8 130~175pcs 40M
HVDR50100 HVDR50100W HVDR50100E HVDR50100B 50*100 5 8 220~250pcs 40M
HVDR60100 HVDR60100W HVDR60100E HVDR60100B 60*100 5 8 240~290pcs 32M
HVDR75100 HVDR75100W HVDR75100E HVDR75100B 75*100 5 8 260~350pcs 24M
HVDR80100 HVDR80100W HVDR80100E HVDR80100B 80*100 5 8 260~350pcs 24M
HVDR100100 HVDR100100W HVDR100100E HVDR100100B 100*100 5 8 300~400pcs 24M






RCCN HVDR Narrow Slot Wiring Duct



RCCN HVDR Narrow Slot Wiring Duct



RCCN HVDR Narrow Slot Wiring Duct



RCCN HVDR Narrow Slot Wiring Duct








RCCN  Din Rails



RCCN HVDR Narrow Slot Wiring Duct        RCCN HVDR Narrow Slot Wiring Duct


RCCN HVDR Narrow Slot Wiring Duct

RCCN HVDR Narrow Slot Wiring Duct



Material:high quality and strength cold rolled steel with electroplate
EN50022 Product standard: EN50022
Color: yellow plated nickle,silver plated zinc
Operated temperature:-40°C standing heat to 100°C
Use way: fixed on the panel then installed with electric parts
Features: perfect design,with huge pressure,exactly dia., rust resistant
Special length or special hole come with MOQ., Rohs approved products are available.
TS-35/7.5/1/1M/R Environment-friendly goods’ part no.:TS-35/7.5/1/1M/ROHS





Item No.
Outer width/Outer height/
Thickness/Length 		 Material Length
per pcs		 Packing/
carton
TS-35/7.5   Series
TS-35/7.5/1.0/1M Color zinc steel 1M 50M
TS-35/7.5/1.0/1M-ROHS ROHS silver zinc plated steel 1M 50M
TS-35/7.5/1.0/2M Color zinc steel 2M 100M
TS-35/7.5/1.0/2M-ROHS ROHS silver zinc plated steel 2M 100M
TS-35/15  Series
TS-35/15/1.5/1M Color zinc steel 1M 30M
TS-35/15/1.5/1M-ROHS ROHS silver zinc plated steel 1M 30M
TS-35/15/1.5/2M Color zinc steel 2M 60M
TS-35/15/1.5/2M-ROHS ROHS silver zinc plated steel 2M 60M
LSC-35/7.5/1.1  Series
LSC-35/7.5/1.1/1M ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M ROHS Aluminum metal 2M 100M
LSC-35/7.5/1.1/1M-No bottom ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M-No bottom ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5 Series
LS-35/7.5/1.5/1M ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5/1M-No bottom ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M-No bottom ROHS Aluminum metal 2M 100M
