RCCN>>Product>>PCB Support>> RCCN CS Circuit Board Support

RCCN CS Circuit Board Support

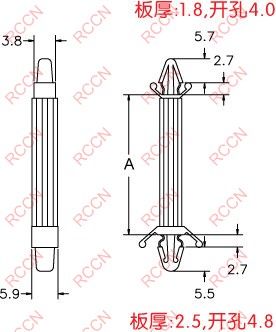

Thickness:1.8,Hole 4.0

RCCN CS Circuit Board Support

RCCN CS Circuit Board Support

Material：UL approved NYLON66(natural)，fireproof 94V-2，good insulation,
good aging resistant
Page number:B77

Item No.	Distance A	Packing
CS-5	5.0(3/16")	1000pcs
CS-10	9.6(1/4")
CS-13	12.7(3/8")
CS-19	19.1(1/2")
CS-28	28.5(5/8")
CS-35	35.0(3/4")

Prev：RCCN SP Miniature Support Post
Next：RCCN RS Reverse Locking Circuit Board Support
