P.C.B. Track-BT

P.C.B. Track-BT



P.C.B. Track-BT

P.C.B. Track-BT P.C.B. Track-BT


P.C.B. Track-BT P.C.B. Track-BT

Material: . approved Nylon 66, 94V-2
To be fixed by 2 sets of 3MM flat-head screw

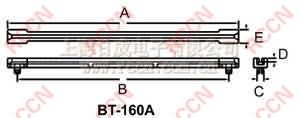

Item No.
A
B
C
D
E
F
G
Packing
BT-90A 89 77 1.9 4.5 9.5 1.5 3
100pcs
BT-90 89 64.5 1.9 4.5 9.5 1.5 3
BT-120 119 94.5 1.9 4.5 9.5 1.5 3
BT-140 140 115.0 1.9 4.5 9.5 1.5 3
BT-160 160 134.5 1.9 4.5 9.5 1.5 3
BT-160A 163 149.5 1.9 6.5 9.5 2.2 2.3
