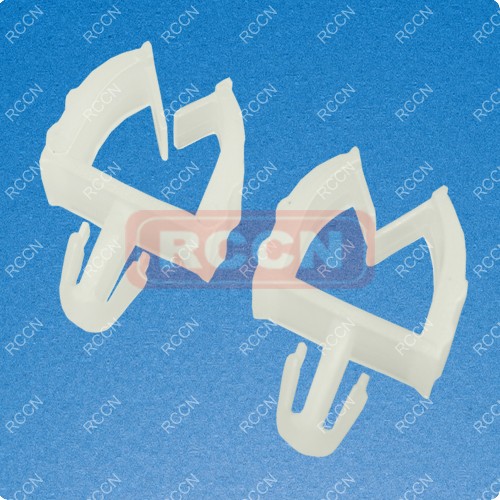

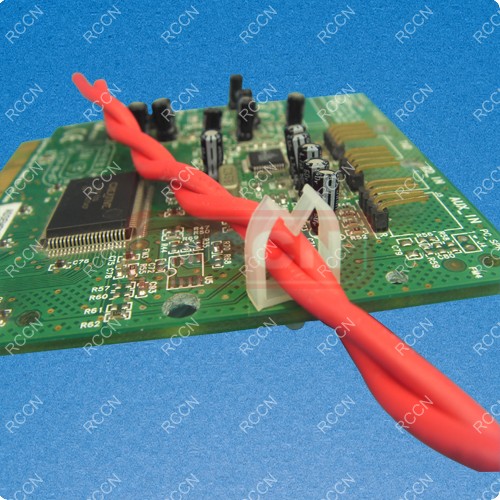

日成PC板夹线套-MWS
  |
|
材 质：日成PC板夹线套-MWS-A2型.合格之NYLON66(本色)，防火等级94V-2，不易老化，绝缘度高。 目录页码：B94 |
| 型号 Item No. |
A | B | 孔径 Hole dia. |
板厚 Board thickness |
包装 Packing |
| MWS-A-7.3 | 7.3 | 6.7 | 3.0 | 1.6 | 1000pcs |
| MWS-A-9.1 | 9.1 | 8.2 | 3.0 | 1.6 | |
| MWS-A-11.2 | 11.2 | 9.4 | 3.0 | 1.6 | |
| MWS-A-13.0 | 13.0 | 9.4 | 3.0 | 1.6 | |
| MWS-B-7.3 | 7.3 | 6.7 | 3.0 | 2.4 | |
| MWS-B-9.1 | 9.1 | 8.2 | 3.0 | 2.4 | |
| MWS-B-11.2 | 11.2 | 9.4 | 3.0 | 2.4 | |
| MWS-B-13.0 | 13.0 | 9.4 | 3.0 | 2.4 |
| 型号 Item No. |
A | B | 孔径 Hole dia. |
板厚 Board thickness |
包装 Packing |
| MWS-A2-7.3 | 7.3 | 6.7 | 3.5 | 1.6 | 1000pcs |
| MWS-A2-9.1 | 9.1 | 8.2 | 3.5 | 1.6 | |
| MWS-A2-11.2 | 11.2 | 9.4 | 3.5 | 1.6 | |
| MWS-A2-13.0 | 13.0 | 9.4 | 3.5 | 1.6 | |
| MWS-B2-7.3 | 7.3 | 6.7 | 3.5 | 2.4 | |
| MWS-B2-9.1 | 9.1 | 8.2 | 3.5 | 2.4 | |
| MWS-B2-11.2 | 11.2 | 9.4 | 3.5 | 2.4 | |
| MWS-B2-13.0 | 13.0 | 9.4 | 3.5 | 2.4 |
