日成PC板尼龙螺丝-NSCH型
  |
|
材质：UL合格之NYLON66(本色). 目录页码：B103页 |

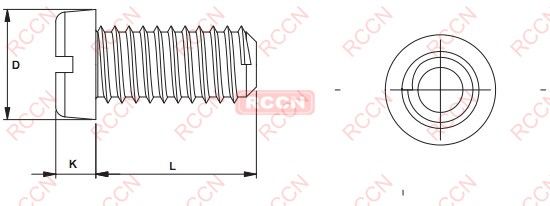

| 型号 Item No. |
螺牙 Thread |
L | D | K | 包装 Packing |
| NSCH-M204 | M2 | 4 | 3.8 | 1.4 | 1000pcs |
| NSCH-M205 | M2 | 5 | 3.8 | 1.4 | |
| NSCH-M206 | M2 | 6 | 3.8 | 1.4 | |
| NSCH-M208 | M2 | 8 | 3.8 | 1.4 | |
| NSCH-M210 | M2 | 10 | 3.8 | 1.4 | |
| NSCH-M212 | M2 | 12 | 3.8 | 1.4 | |
| NSCH-M216 | M2 | 16 | 3.8 | 1.4 | |
| NSCH-M220 | M2 | 20 | 3.8 | 1.4 | |
| NSCH-M225 | M2 | 25 | 3.8 | 1.4 | |
| NSCH-M2.5-6 | M2.5 | 6 | 4.5 | 1.8 | 1000pcs |
| NSCH-M2.5-8 | M2.5 | 8 | 4.5 | 1.8 | |
| NSCH-M2.5-10 | M2.5 | 10 | 4.5 | 1.8 | |
| NSCH-M2.5-12 | M2.5 | 12 | 4.5 | 1.8 | |
| NSCH-M2.5-16 | M2.5 | 16 | 4.5 | 1.8 | |
| NSCH-M2.5-20 | M2.5 | 20 | 4.5 | 1.8 | |
| NSCH-M2.5-25 | M2.5 | 25 | 4.5 | 1.8 | |
| NSCH-M304 | M3 | 4 | 5.5 | 2.0 | 1000pcs |
| NSCH-M305 | M3 | 5 | 5.5 | 2.0 | |
| NSCH-M306 | M3 | 6 | 5.5 | 2.0 | |
| NSCH-M308 | M3 | 8 | 5.5 | 2.0 | |
| NSCH-M310 | M3 | 10 | 5.5 | 2.0 | |
| NSCH-M312 | M3 | 12 | 5.5 | 2.0 | |
| NSCH-M316 | M3 | 16 | 5.5 | 2.0 | |
| NSCH-M320 | M3 | 20 | 5.5 | 2.0 | |
| NSCH-M325 | M3 | 25 | 5.5 | 2.0 | |
| NSCH-M330 | M3 | 30 | 5.5 | 2.0 | |
| NSCH-M342 | M3 | 42 | 5.5 | 2.0 |
| 型号 Item No. |
螺牙 Thread |
L | D | K | 包装 Packing |
| NSCH-M406 | M4 | 6 | 7.0 | 2.6 | 1000pcs |
| NSCH-M408 | M4 | 8 | 7.0 | 2.6 | |
| NSCH-M410 | M4 | 10 | 7.0 | 2.6 | |
| NSCH-M412 | M4 | 12 | 7.0 | 2.6 | |
| NSCH-M416 | M4 | 16 | 7.0 | 2.6 | |
| NSCH-M420 | M4 | 20 | 7.0 | 2.6 | |
| NSCH-M425 | M4 | 25 | 7.0 | 2.6 | |
| NSCH-M430 | M4 | 30 | 7.0 | 2.6 | |
| NSCH-M435 | M4 | 35 | 7.0 | 2.6 | |
| NSCH-M440 | M4 | 40 | 7.0 | 2.6 | |
| NSCH-M506 | M5 | 6 | 8.5 | 3.3 | 1000pcs |
| NSCH-M508 | M5 | 8 | 8.5 | 3.3 | |
| NSCH-M510 | M5 | 10 | 8.5 | 3.3 | |
| NSCH-M512 | M5 | 12 | 8.5 | 3.3 | |
| NSCH-M516 | M5 | 16 | 8.5 | 3.3 | |
| NSCH-M518 | M5 | 18 | 8.5 | 3.3 | |
| NSCH-M520 | M5 | 20 | 8.5 | 3.3 | |
| NSCH-M525 | M5 | 25 | 8.5 | 3.3 | |
| NSCH-M530 | M5 | 30 | 8.5 | 3.3 | |
| NSCH-M535 | M5 | 35 | 8.5 | 3.3 | |
| NSCH-M540 | M5 | 40 | 8.5 | 3.3 | |
| NSCH-M550 | M5 | 50 | 8.5 | 3.3 | |
| NSCH-M606 | M6 | 6 | 10 | 3.9 | 500pcs |
| NSCH-M6-6.5 | M6 | 6.5 | 10 | 3.9 | |
| NSCH-M608 | M6 | 8 | 10 | 3.9 | |
| NSCH-M610 | M6 | 10 | 10 | 3.9 | |
| NSCH-M612 | M6 | 12 | 10 | 3.9 | |
| NSCH-M616 | M6 | 16 | 10 | 3.9 | |
| NSCH-M620 | M6 | 20 | 10 | 3.9 | |
| NSCH-M625 | M6 | 25 | 10 | 3.9 | |
| NSCH-M630 | M6 | 30 | 10 | 3.9 | |
| NSCH-M640 | M6 | 40 | 10 | 3.9 | |
| NSCH-M650 | M6 | 50 | 10 | 3.9 | |
| NSCH-M660 | M6 | 60 | 10 | 3.9 |
