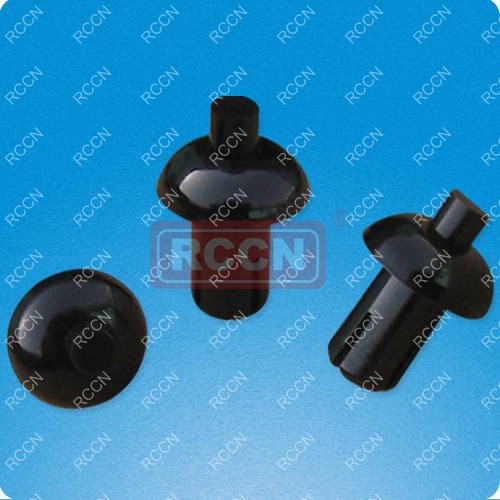

RCCN SRS Short Push Snap Rivet

 RCCN SRS Short Push Snap Rivet

RCCN SRS Short Push Snap Rivet

RCCN SRS Short Push Snap Rivet RCCN SRS Short Push Snap Rivet

Material:NYLON66 UL approved,fireproof 94V-2
Good quality,easy to install
Page number:B39

Item No. Hole Dia Panel Thick A B C D E Fig.No.
SRS3045 3.1 2.0-3.0 8.5 2.0 4.5 3.0 5.8 No.1
SRS3055 3.1 3.0-4.0 8.5 2.0 5.5 3.0 5.8
SRS4050 4.1 2.5-3.5 8.0 2.2 5.0 4.0 8.0 No.2
SRS4060 4.1 3.5-4.5 8.0 2.2 6.0 4.0 8.0
SRS4070 4.1 4.5-5.5 8.0 2.2 7.0 4.0 11.2
SRS4080 4.1 5.5-6.5 8.0 2.2 8.0 4.0 11.2
SRS5050 5.1 2.0-3.0 9.5 2.8 5.0 5.0 9.6
SRS5060 5.1 3.0-4.0 9.5 2.8 6.0 5.0 9.6
SRS5070 5.1 4.0-5.0 9.5 2.8 7.0 5.0 11.6
SRS5080 5.1 5.0-6.0 9.5 2.8 8.0 5.0 11.6
SRS5090 5.1 6.0-7.0 9.5 2.8 9.0 5.0 13.6
SRS5100 5.1 7.0-8.0 9.5 2.8 10.0 5.0 13.6
SRS5120 5.1 8.5-10.0 9.5 2.8 12.0 5.0 16.0
SRS6060 6.1 2.5-4.0 11.0 1.5 6.0 6.0 9.4
