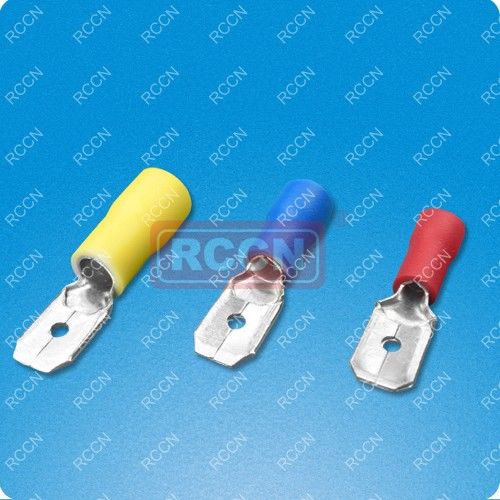

Note:installed by crimp tool YYT-1

Insulated square：0.5～1.5mm2(22～16)Max. cunrrent：lmax=10A

Item No.	NEMA-TAB	Thickness	DIMENSION
			B	dφ	Dφ	L	H
	mm	mm	mm	mm	mm	mm	mm
LVB 1.25-110(5)	0.5×2.8	0.5	2.8	1.70	4.3	17.7	10.0
LVB 1.25-110(8)	0.8×2.8	0.8	2.8	1.70	4.3	17.7
LVB 1.25-187(5)	0.5×4.75	0.5	4.75	1.70	4.3	20.0
LVB 1.25-187(8)	0.8×4.75	0.8	4.75	1.70	4.3	18.5
LVB 1.25-250	0.8×6.35	0.4	6.35	1.70	4.3	21.0

Insulated square：1.5～2.5mm2(16～14)Max. cunrrent：lmax=15A

Item No.	NEMA-TAB	Thickness	DIMENSION
			B	dφ	Dφ	L	H
	mm	mm	mm	mm	mm	mm	mm
LVB 2-187(5)	0.5×4.75	0.5	4.75	2.3	4.3	20.0	10.0
LVB 2-187(8)	0.8×4.75	0.8	4.75	2.3	4.3	18.5
LVB 2-250	0.8×6.35	0.4	6.35	2.3	4.3	21.0

Insulated square：4～6mm2(12～10)Max. cunrrent：lmax=24A

Item No.	NEMA-TAB	Thickness	DIMENSION
			B	dφ	Dφ	L	H
	mm	mm	mm	mm	mm	mm	mm
LVB 5.5-250	0.8×6.35	0.4	6.35	3.4	5.7	25.0	13.5

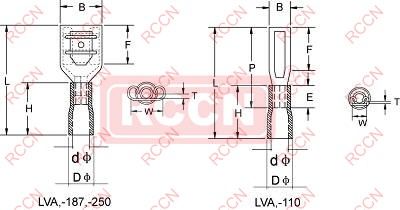

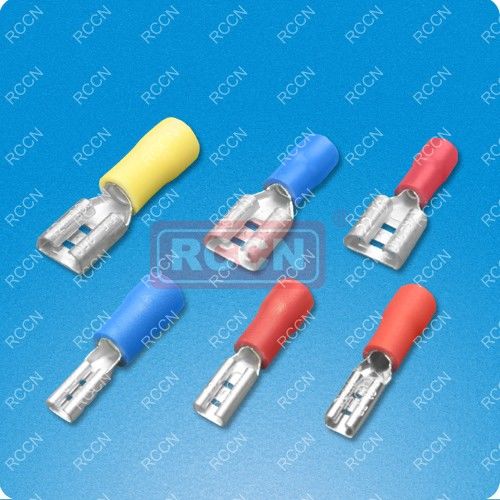

RCCN LVA Insulated Female Terminals








Note:installed by crimp tool YYT-1

 Insulated square：0.5～1.5mm2(22～16)Max. cunrrent：lmax=10A

Item No.	NEMA-TAB T*W	Thickness	DIMENSION
			B	dφ	Dφ	L	H
	mm	mm	mm	mm	mm	mm	mm
LVA 1.25-110(5)	0.5×2.8	0.3	3.8	1.7	3.8	19.0	10.0
LVA 1.25-110(8)	0.8×2.8	0.3	3.8	1.7	3.8	19.0
LVA 1.25-187(5)	0.5×4.75	0.35	5.6	1.7	3.8	19.0
LVA 1.25-187(8)	0.8×4.75	0.35	5.6	1.7	3.8	19.0
LVA 1.25-205	0.5×5.2	0.35	6.5	1.7	3.8	20.0
LVA 1.25-250	0.8×6.35	0.4	7.4	1.7	3.8	21.0

Insulated square：1.5～2.5mm2(16～14)Max. cunrrent：lmax=15

Item No.	NEMA-TAB T*W	Thickness	DIMENSION
			B	dφ	Dφ	L	H
	mm	mm	mm	mm	mm	mm	mm
LVA 2-110(5)	0.5×2.8	0.3	3.8	2.3	4.3	19.0	10.0
LVA 2-110(8)	0.8×2.8	0.3	3.8	2.3	4.3	19.0
LVA 2-187(5)	0.5×4.75	0.35	5.6	2.3	4.3	19.0
LVA 2-187(8)	0.8×4.75	0.35	5.6	2.3	4.3	19.0
LVA 2-205	0.5×5.2	0.35	6.5	2.3	4.3	20.0
LVA 2-250	0.8×6.35	0.4	7.4	2.3	4.3	21.0
LVA 2-312	0.8×8.0	0.4	9.0	2.3	4.3	23.0

Insulated square：4～6mm2(12～10)Max. cunrrent：lmax=24A

Item No.	NEMA-TAB T*W	Thickness	DIMENSION
			B	dφ	Dφ	L	H
	mm	mm	mm	mm	mm	mm	mm
LVA 5.5-250	0.5×6.35	0.4	7.4	3.4	5.7	25.0	14.0
LVA 5.5-312	1.2×9.4	0.5	10.9	3.4	5.7	29.6	13.5
