RCCN>>Product>>Terminal>> Male And Female Full-insulating Joint(Nylon)(PNB Type)

Male And Female Full-insulating Joint(Nylon)(PNB Type)

Male And Female Full-insulating Joint(Nylon)(PNB Type)


Male And Female Full-insulating Joint(Nylon)(PNB Type)





Male And Female Full-insulating Joint(Nylon)(PNB Type) Male And Female Full-insulating Joint(Nylon)(PNB Type) Male And Female Full-insulating Joint(Nylon)(PNB Type)



max current:10A  Material:purple copper  Insulating material:nylon

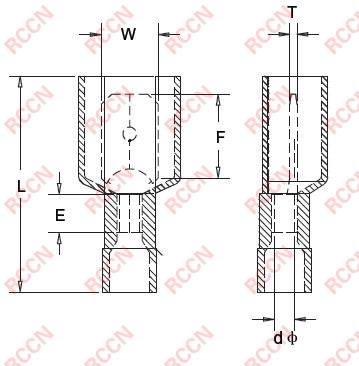

Item No. NEMA TAB
T×W
 DIMENSION color
W F E L
PN 1.25-250B 0.8×6.35 6.35 9.0 5.0 1.7 24
red

max current:15A  Material:purple copper  Insulating material:nylon


Item No.
NEMA TAB
T×W
DIMENSION color
W F E L
PN 2-250B 0.8×6.35 6.35 9.0 5.0 2.3 24 blue

max current:24A  Material:purple copper  Insulating material:nylon

Item No. NEMA TAB
T×W
 DIMENSION color
W F E L
PN5.5-250B 0.8×6.35 6.35 9.0 6.0 3.4 26.0 yellow



Male And Female Full-insulating Joint(Nylon)(PNB Type)
