RCCN>>Product>>Terminal>> RCCN PINF Insulated Terminals

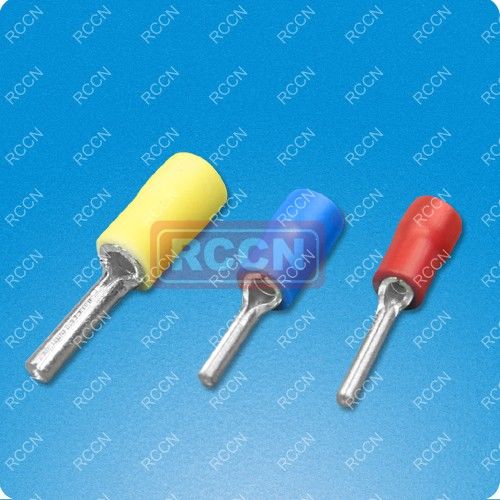

RCCN PINF Insulated Terminals

RCCN  PINF Insulated Terminals

RCCN  PINF Insulated Terminals





RCCN  PINF Insulated Terminals RCCN  PINF Insulated Terminals

Note:installed by crimp tool YYT-1



Insulated square:0.5~1.5mm2(AWG22~16) Max. cunrrent:lmax=19A

Item No



Dimension
Color
PVC材质 尼龙材质 L H
red
PINF1.25-9 PINF1.25-9N 1.9 19.0 11.0 4.0
PINF1.25-10 PINF1.25-10N 1.9 20.0 11.0 4.0
PINF1.25-12 PINF1.25-12N 1.9 22.0 11.0 4.0
PINF1.25-13 PINF1.25-13N 1.9 23.0 11.0 4.0
PINF1.25-18 PINF1.25-18N 1.9 28.0 11.0 4.0


Insulated square:1.5~2.5mm2(AWG16~14) Max. cunrrent:lmax=27A

Item No
Dimension
Color
L H
mm mm mm mm
PVC材质

尼龙材质
    10.0 4.9
blue
PINF 2-9 PINF 2-9N 1.9 19.0
PINF 2-10 PINF 2-10N 1.9 20.0
PINF 2-12 PINF 2-12N 1.9 22.0
PINF 2-13 PINF 2-13N 1.9 23.0
PINF 2-18 PINF 2-18N 1.9 28.0


Insulated square:2.5~4mm2(AWG14~12)Max. cunrrent:lmax=37A

Item No

DIMENSION color
PVC材质 尼龙材质 L H Black
PINF3.5-10 PINF3.5-10N 2.8 20.5 13.5 6.4
PINF3.5-13 PINF3.5-13N 2.8 25.5 13.5 6.4



Insulated square:4~6mm2(AWG12~10) Max. cunrrent:lmax=48A

Item No.

DIMENSION color
PVC材质 尼龙材质 L H Yellow
PINF5.5-13 PINF5.5-13N 2.8 25.5 13.5 6.4





RCCN  PINF Insulated Terminals
