RCCN HUP45/HUP90 Cable Lugs, Copper

Features:tube size is for small wire,HUP standard
VDE60228(such as VDE0295 bno.5、6）.
HUP inside hole enlarged, easy to insert cables.
Without inspection hole terminal,
part no.:HUP35-8/N,
Advantage:keep perfect stability when it was
strong mechanical strain or shake,less amending,
used more widely

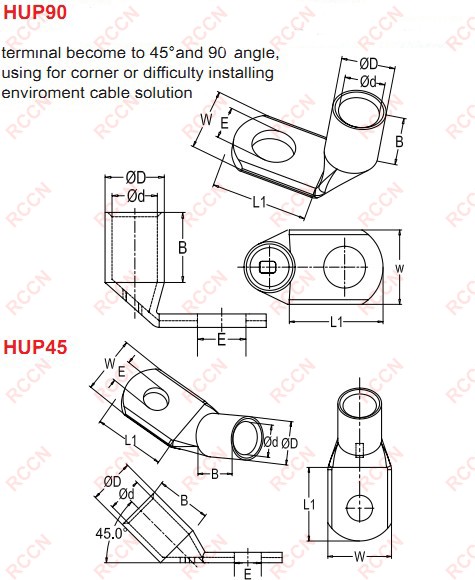

terminal become to 45°and 90°angle,
using for corner or difficulty installing
enviroment cable solution

Item No.	DIMENSION
Item No.	E	DΦ	dΦ	W	B	L1
HUP45-10/5	5.3	8.0	5.5	12	14	13.5
HUP45-10/6	6.5	8.0	5.5	12	14	13.5
HUP45-10/8	8.5	8.0	5.5	12	14	185
HUP45-10/10	10.5	8.0	5.5	16	14	22.5
HUP45-10/12	13.0	8.0	5.5	19	14	22.5
HUP45-16/5	5.3	9.5	6.6	13	15	13.5
HUP45-16/6	6.5	9.5	6.6	3	15	13.5
HUP45-16/8	8.5	9.5	6.6	16	15	20
HUP45-16/10	10.5	9.5	6.6	17	15	24
HUP45-16/12	13.0	9.5	6.6	19	15	24
HUP45-25/5	5.3	11	7.9	15	17	15
HUP45-25/6	6.5	11	7.9	15	17	15
HUP45-25/8	8.5	11	7.9	17	17	20
HUP45-25/10	10.5	11	7.9	17	17	24
HUP45-25/12	13.0	11	7.9	19	17	24
HUP45-35/6	6.5	12.5	9.2	17	19	15
HUP45-35/8	8.5	12.5	9.2	18	19	20
HUP45-35/10	10.5	12.5	9.2	18	19	24
HUP45-35/12	13.0	12.5	9.2	19	19	24
HUP45-35/14	15.0	12.5	9.2	21	19	24
HUP45-50/6	6.5	15	11	21	21	20
HUP45-50/8	8.5	15	11	21	21	20
HUP45-50/10	10.5	15	11	21	21	24
HUP45-50/12	13.0	15	11	21	21	26
HUP45-50/14	15.0	15	11	23	21	26
HUP45-50/16	17.0	15	11	28	21	26
HUP45-70/8	8.5	17	13	25	25	20
HUP45-70/10	10.5	17	13	25	25	24
HUP45-70/12	13.0	17	13	25	25	26
HUP45-70/14	15.0	17	13	25	25	26
HUP45-70/16	17.0	17	13	25	25	26
HUP45-95/8	8.5	19	14.5	28	26	24
HUP45-95/10	10.5	19	14.5	28	26	24
HUP45-95/12	13.0	19	14.5	28	26	26
HUP45-95/14	15.0	19	14.5	28	26	26
HUP45-95/16	17.0	19	14.5	28	26	26
HUP45-120/8	8.5	21	16.2	30	30	28
HUP45-120/10	10.5	21	16.2	30	30	28
HUP45-120/12	13.0	21	16.2	30	30	30
HUP45-120/14	15.0	21	16.2	30	30	30
HUP45-120/16	17.0	21	16.2	30	30	30
HUP45-120/20	21.0	21	16.2	30	30	30
HUP45-150/8	8.5	23	18	34	32	31
HUP45-150/10	10.5	23	18	34	32	31
HUP45-150/12	13.0	23	18	34	32	34
HUP45-150/14	15.0	23	18	34	32	37
HUP45-150/16	17.0	23	18	34	32	37
HUP45-150/20	21.0	23	18	40	32	37
HUP45-185/10	10.5	26	20.6	39	35	40
HUP45-185/12	13.0	26	20.6	39	35	40
HUP45-185/14	15.0	26	20.6	39	35	40
HUP45-185/16	17.0	26	20.6	39	35	40
HUP45-185/20	21.0	26	20.6	39	35	40
HUP45-240/10	10.5	28	23.1	41	44	33
HUP45-240/12	13.0	28	23.1	41	44	33
HUP45-240/14	15.0	28	23.1	41	44	39
HUP45-240/16	17.0	28	23.1	41	44	39
HUP45-240/20	21.0	28	23.1	41	44	39
HUP45-300/12	13.0	32	26.1	47	44	41
HUP45-300/14	15.0	32	26.1	47	44	41
HUP45-300/16	17.0	32	26.1	47	44	41
HUP45-300/20	21.0	32	26.1	47	44	41

Item No.	DIMENSION
Item No.	E	DΦ	dΦ	W	B	L1
HUP90-10/5	5.3	8.0	5.5	12	14	13.5
HUP90-10/6	6.5	8.0	5.5	12	14	13.5
HUP90-10/8	8.5	8.0	5.5	12	14	185
HUP90-10/10	10.5	8.0	5.5	16	14	22.5
HUP90-10/12	13.0	8.0	5.5	19	14	22.5
HUP90-16/5	5.3	9.5	6.6	13	15	13.5
HUP90-16/6	6.5	9.5	6.6	3	15	13.5
HUP90-16/8	8.5	9.5	6.6	16	15	20
HUP90-16/10	10.5	9.5	6.6	17	15	24
HUP90-16/12	13.0	9.5	6.6	19	15	24
HUP90-25/5	5.3	11	7.9	15	17	15
HUP90-25/6	6.5	11	7.9	15	17	15
HUP90-25/8	8.5	11	7.9	17	17	20
HUP90-25/10	10.5	11	7.9	17	17	24
HUP90-25/12	13.0	11	7.9	19	17	24
HUP90-35/6	6.5	12.5	9.2	17	19	15
HUP90-35/8	8.5	12.5	9.2	18	19	20
HUP90-35/10	10.5	12.5	9.2	18	19	24
HUP90-35/12	13.0	12.5	9.2	19	19	24
HUP90-35/14	15.0	12.5	9.2	21	19	24
HUP90-50/6	6.5	15	11	21	21	20
HUP90-50/8	8.5	15	11	21	21	20
HUP90-50/10	10.5	15	11	21	21	24
HUP90-50/12	13.0	15	11	21	21	26
HUP90-50/14	15.0	15	11	23	21	26
HUP90-50/16	17.0	15	11	28	21	26
HUP90-70/8	8.5	17	13	25	25	20
HUP90-70/10	10.5	17	13	25	25	24
HUP90-70/12	13.0	17	13	25	25	26
HUP90-70/14	15.0	17	13	25	25	26
HUP90-70/16	17.0	17	13	25	25	26
HUP90-95/8	8.5	19	14.5	28	26	24
HUP90-95/10	10.5	19	14.5	28	26	24
HUP90-95/12	13.0	19	14.5	28	26	26
HUP90-95/14	15.0	19	14.5	28	26	26
HUP90-95/16	17.0	19	14.5	28	26	26
HUP90-120/8	8.5	21	16.2	30	30	28
HUP90-120/10	10.5	21	16.2	30	30	28
HUP90-120/12	13.0	21	16.2	30	30	30
HUP90-120/14	15.0	21	16.2	30	30	30
HUP90-120/16	17.0	21	16.2	30	30	30
HUP90-120/20	21.0	21	16.2	30	30	30
HUP90-150/8	8.5	23	18	34	32	31
HUP90-150/10	10.5	23	18	34	32	31
HUP90-150/12	13.0	23	18	34	32	34
HUP90-150/14	15.0	23	18	34	32	37
HUP90-150/16	17.0	23	18	34	32	37
HUP90-150/20	21.0	23	18	40	32	37
HUP90-185/10	10.5	26	20.6	39	35	40
HUP90-185/12	13.0	26	20.6	39	35	40
HUP90-185/14	15.0	26	20.6	39	35	40
HUP90-185/16	17.0	26	20.6	39	35	40
HUP90-185/20	21.0	26	20.6	39	35	40
HUP90-240/10	10.5	28	23.1	41	44	33
HUP90-240/12	13.0	28	23.1	41	44	33
HUP90-240/14	15.0	28	23.1	41	44	39
HUP90-240/16	17.0	28	23.1	41	44	39
HUP90-240/20	21.0	28	23.1	41	44	39
HUP90-300/12	13.0	32	26.1	47	44	41
HUP90-300/14	15.0	32	26.1	47	44	41
HUP90-300/16	17.0	32	26.1	47	44	41
HUP90-300/20	21.0	32	26.1	47	44	41
