RCCN>>Product>>Terminal>> RCCN YFN Nylon Insulated Spade Terminals

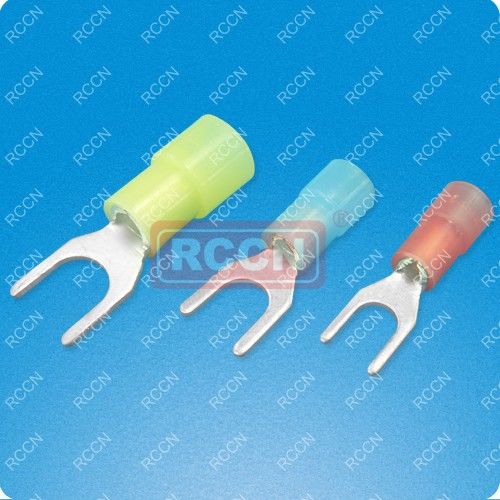

RCCN YFN Nylon Insulated Spade Terminals

RCCN YFN Nylon Insulated Spade Terminals



RCCN YFN Nylon Insulated Spade Terminals


RCCN YFN Nylon Insulated Spade Terminals RCCN YFN Nylon Insulated Spade Terminals

Use note: installed by tool YYT-1



Insulation square:0.5~1.5mm2(AWG22~16)Max current:Imax=19A

Item No.

DIMENSION

color

America
Bolt no.

Dia. of bolt B L F H D Φ

D2 mm mm mm mm mm
YF1.25-3N #4 3.2mm 5.7 22 6.5 11.0 4.0 Red
YFS1.25-3.5N #6 3.7mm 5.7 22 6.5
YFL1.25-3.5N #6 3.7mm 6.4 22 6.5
YFS1.25-4N #8 4.3mm 6.4 22 6.5
YFM1.25-4N #8 4.3mm 7.2 22 6.5
YFL1.25-4N #8 4.3mm 8.1 22 6.5
YFS1.25-5N #10 5.3mm 8.1 22 6.5
YFL1.25-5N #10 5.3mm 9.5 22 6.5
YFS1.25-6N 1/4 6.4mm 9.5 22 6.5
YFL1.25-6N 1/4 6.4mm 12.0 28 11.0


Insulation square:1.5~2.5mm2(AWG16~14)Max current:lmax=27A

Item No.

DIMENSION

color

America
bolt no.

Dia. of bolt B L F H D Φ


D2 mm mm mm mm mm
YF2-3N #4 3.2mm 5.7 22 6.5 11.0 4.5 Blue
YFS2-3.5N #6 3.7mm 5.7 22 6.5
YFL2-3.5N #6 3.7mm 6.0 22 6.5
YFS2-4N #8 4.3mm 6.4 22 6.5
YFM2-4N #8 4.3mm 7.2 22 6.5
YFL2-4N #8 4.3mm 7.9 22 6.5
YFS2-5N #10 5.3mm 7.9 22 6.5
YFL2-5N #10 5.3mm 9.3 22 6.5
YFS2-6N 1/4 6.4mm 9.3 22 6.5
YFL2-6N 1/4 6.4mm 12.0 28 11.0



Insulation square:4~6mm2(AWG12~10)Max current:lmax=37A

Item No.

DIMENSION

color

America
bolt no.

Dia. of bolt B L F H

D Φ



D2 mm mm mm mm mm
 YF3.5-3N  #4 3.2mm 5.7 25.7 7.0 13.4 6.4 Yellow
 YF3.5-4N  #8 4.3mm 8 25.7 7.0
 YF3.5-5N  #10 5.3mm 8 25.7 7.0
 YF3.5-6N  1/4 6.5mm 12 28.7 7.0




Insulation square:4~6mm2(AWG12~10)Max current:lmax=48A

Item No.

DIMENSION

color

America
bolt no.

Dia. of bolt B L F H D Φ


D2 mm mm mm mm mm
YFS5.5-3.5N #6 3.7mm 7.2 24.4 7.5 13.4 6.4 Yellow
YF5.5-3.5N #6 3.7mm 8.3 25.5 7.0
YFS5.5-4N #8 4.3mm 8.3 25.5 7.0
YFL5.5-4N #8 4.3mm 9.0 25.5 7.0
YF5.5-5N #10 5.3mm 9.0 25.5 7.0
YFS5.5-6N 1/4 6.5mm 9.0 25.5 7.0
YFL5.5-6N 1/4 6.5mm 12.0 31.5 12.0
YF5.5-8N 5/16 8.4mm 14.0 30.5 10.5
