RCCN KW Mid-Way Wire Connector

RCCN KW Mid-Way Wire Connector     RCCN KW Mid-Way Wire Connector

RCCN KW Mid-Way Wire Connector

RCCN KW Mid-Way Wire Connector RCCN KW Mid-Way Wire Connector
Material:UL approved NYLON66,
fireproof 94V-2。
Page number:B57

AWG&mm2
(square data)
refered sheet
AWG 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32
mm2 33.4 20.8 13.2 8.4 5.3 3.3 2.1 1.3 0.83 0.52 0.33 0.21 0.13 0.08 0.05 0.03


Item No.

Wire Suitable

Packing

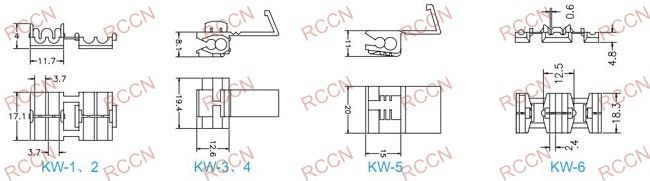

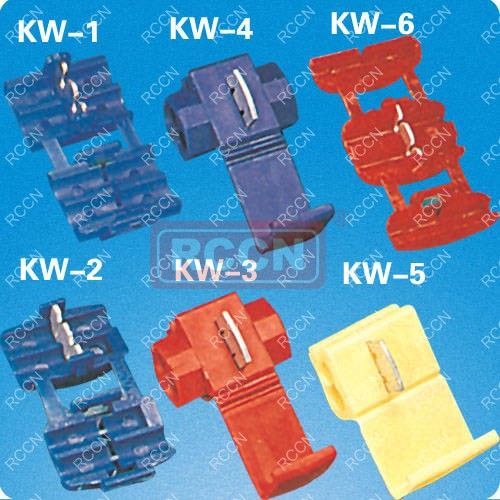

KW-1
18AWG-14AWG
100PCS
(1000PCS)
KW-2
18AWG-14AWG
KW-3
22AWG-18AWG
KW-4
18AWG-14AWG
KW-5
12AWG-10AWG
KW-6
22AWG-20AWG
KW-6L
18AWG-14AWG

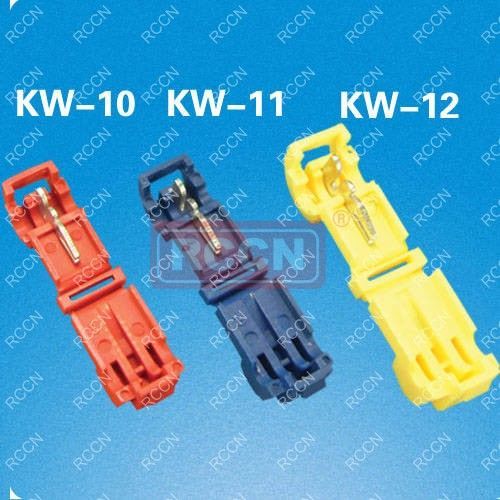

KW-10
22AWG-18AWG
KW-11
16AWG-14AWG
KW-12
12AWG-10AWG
