RCCN PA Terminal Blocks
  |
| Material: UL approved NYLON66(natural)，fireproof 94V-2，nickel coated copper bottom，zinc coated steel screw Operate T:-30℃ to 110℃。 Use: Used in electric equipement、lights and so on Page number:B56 |
| AWG&mm2 (square data) refered sheet |
AWG | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 |
| mm2 | 33.4 | 20.8 | 13.2 | 8.4 | 5.3 | 3.3 | 2.1 | 1.3 | 0.83 | 0.52 | 0.33 | 0.21 | 0.13 | 0.08 | 0.05 | 0.03 |
|
Item No. |
Dimension |
Cable |
Max. |
Suitable |
Screw |
Spl it |
Packing |
||||||

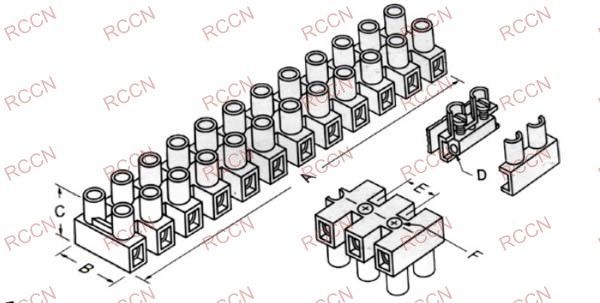

| A | B | C | D | E | F | ||||||||
| Flat type | 50PCS | ||||||||||||
| PA-1.5 | 96.2 | 16.3 | 12.7 | 2.8 | 8.2 | 2.9 | 1.5 | 17.5A |
450V |
M2.6*5 | 5 | ||
| PA-2.5 | 116.5 | 20.2 | 15.8 | 3.2 | 10 | 3.6 | 2.5 | 24A | 450V | M3*6 | 6.5 | ||
| Flat type with fleixble | |||||||||||||
| PA-1.5DS | 96.2 | 16.3 | 12.7 | 2.8 | 8.2 | 2.9 | 1.5 | 17.5A | 450V | M2.6*5 | 5 | ||
| PA-2.5DS | 116.5 | 20.2 | 15.8 | 3.2 | 10 | 3.6 | 2.5 | 24A | 450V | M3*6 | 6.5 | ||
