RCCN BGN Conduit Connector


RCCN BGN Conduit Connector
RCCN BGN Conduit Connector


RCCN BGN Conduit Connector

Thread:Metric,G,NPT

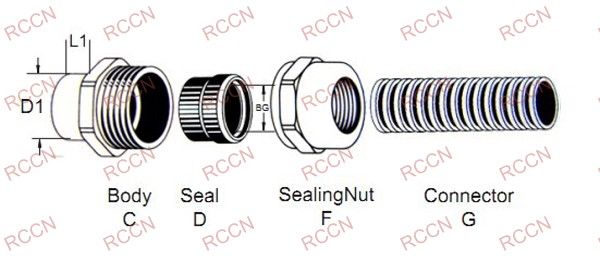

Material:C.E are made of zinc metal plated with nickel.D is made of rubber
Certificates:CE,ROHS.
Protect rate:in bayonet scope,usd with O ring,screw down lock nut,can be up to IP68
Product characterstics:Special design of part D and E,used with part F, can save your time,
large spread of cable sealing,good re-tensile,waterproof,ashproof,re-salty,
withstand impregnant like acid,alkali,alcohol,oil,grease









Item No .

Thread



Cable
Range
Φ

BG


BG


Thread
O.D.
D1

Panle
Mounting
Hole

Thread
Length
L1

Std.Pkg.
pcs


Thread length BGN-M

BGN-M12(BG07) M12*1.5 3-6 BG-07 10.0 12 12-12.3 6 10PCS
BGN-M12(BG07) M12*1.5 3-6 BG-07 10.0 12 12-12.3 6
BGN-M16(BG10) M16*1.5 4-8 BG-10 13.0 16 16-16.3 7
BGN-M18(BG12) M18*1.5 6-10 BG-12 15.8 18 18-18.3 8
BGN-M20(BG12) M20*1.5 8-12 BG-12 15.8 20 20-20.3 8
BGN-M20(BG15) M20*1.5 8-12 BG-15 18.5 20 20-20.3 8
BGN-M20(BG17) M20*1.5 8-12 BG-17 21.2 20 20-20.3 8
BGN-M22(BG17) M22*1.5 10-14 BG-17 21.2 22 22-22.3 9 10PCS
BGN-M24(BG17) M24*1.5 10-14 BG-17 21.2 24 24-24.3 10
BGN-M25(BG17) M25*1.5 10-14 BG-17 21.2 25 25-25.4 10
BGN-M25(BG23) M25*1.5 10-14 BG-23 28.5 25 25-25.4 10
BGN-M27(BG23) M27*1.5 13-18 BG-23 28.5 27 27-27.4 11
BGN-M30(BG29) M30*1.5 13-18 BG-29 34.5 30 30-30.4 11
BGN-M32(BG29) M32*1.5 15-22 BG-29 34.5 32 32-32.4 11
BGN-M33(BG29) M33*1.5 15-22 BG-29 34.5 33 33-33.4 11
BGN-M36(BG29) M36*1.5 18-25 BG-29 34.5 36 36-36.4 11
BGN-M40(BG36) M40*1.5 18-25 BG-36 42.5 40 40-40.4 12
BGN-M50(BG48) M50*1.5 26-32 BG-48 54.5 50 50-50.4 13
BGN-M63(BG48) M63*1.5 37-44 BG-48 54.5 63 63-63.4 14
