RCCN M Brass Cable Gland
  |

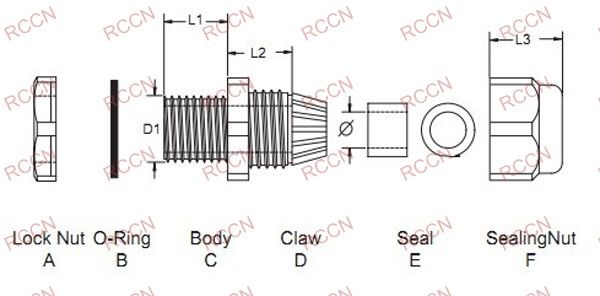

| Thread:Metric。 Material:A.C.F are made of brass.D is made of insulated rubber.B.E are made of rubber NBR。 Protect grade is up to IP67 in the suitable use way Operate temperature:-40°C to 100°C Product characterstics:Special design of part D and E,used with part F, can save your time, large spread of cable sealing,good re-tensile,waterproof,ashproof,re-salty, withstand impregnant like acid,alkali,alcohol,oil,grease More choice:Length added gland,many other sizes of seal,glands made of rubber EPDM for outdoor use |
|
|
||||||||
| Item No. | Thread | CableRange ￠ |
Thread O.D. D1 |
Panel Mounting Hole |
Thread Length L1 |
Joint Length L2+L3 |
Spanner size A&F |
Std.Pkg. pcs |
| M12×1.5 | M12×1.5 | 3-6 | 12 | 12-12.3 | 6 | 19 | 16 | 100PCS |
| M16×1.5 | M16×1.5 | 4-8 | 16 | 16-16.3 | 7 | 20 | 18 | |
| M20×1.5 | M20×1.5 | 8-12 | 20 | 20-20.3 | 8 | 23 | 22 | |
| M25×1.5 | M25×1.5 | 10-14 | 25 | 25-25.4 | 10 | 23 | 28 | 50PCS |
| M32×1.5 | M32×1.5 | 15-22 | 32 | 32-32.4 | 11 | 32 | 36 | |
| M40×1.5 | M40×1.5 | 18-25 | 40 | 40-40.4 | 12 | 32 | 42 | 10PCS |
| M50×1.5 | M50×1.5 | 26-32 | 50 | 50-50.4 | 13 | 38 | 56 | |
| M63×1.5 | M63×1.5 | 37-44 | 63 | 63-63.4 | 14 | 38 | 70 | |
| M72×2.0 | M72×2.0 | 42-52 | 72 | 72-72.4 | 15 | 38 | 75 | 5PCS |
| M88×2.0 | M88×2.0 | 55-62 | 88 | 88-88.4 | 20 | 45 | 80 | |
| M100×2.0 | M100×2.0 | 78-84 | 100 | 102 | 20 | 50 | 90 | |
|
Item No |
Thread |
CableRange Φ |
Cable |
Thread |
Panel |
Thread |
Spanner |
Std.Pkg |
| M12*1.5 | M12*1.5 | 3-6 | 12 | 12-12.3 | 7 | 19 | 16 | 100PCS |
| M14*1.5 | M14*1.5 | 3-6 | 14 | 14-14.3 | 7 | 19 | 16 | |
| M16*1.5 | M16*1.5 | 4-8 | 16 | 16-16.3 | 8 | 20 | 18 | |
| M18*1.5 | M18*1.5 | 6-10 | 18 | 18-18.3 | 8 | 22 | 20 | |
| M20*1.5 | M20*1.5 | 8-12 | 20 | 20-20.3 | 8 | 23 | 22 | |
| M22*1.5 | M22*1.5 | 10-14 | 22 | 22-22.3 | 9 | 23 | 24 | |
| M24*1.5 | M24*1.5 | 10-14 | 24 | 24-24.3 | 10 | 23 | 27 | 50PCS |
| M25*1.5 | M25*1.5 | 11-16 | 25 | 25-25.4 | 11 | 23 | 28 | |
| M27*2.0 | M27*2.0 | 13-18 | 27 | 27-27.4 | 11 | 28 | 30 | |
| M30*2.0 | M30*2.0 | 14-20 | 30 | 30-30.4 | 11 | 28 | 32 | |
| M32*1.5 | M32*1.5 | 15-22 | 32 | 32-32.4 | 11 | 32 | 36 | |
| M33*2.0 | M33*2.0 | 15-22 | 33 | 33-33.4 | 11 | 32 | 36 | |
| M36*2.0 | M36*2.0 | 18-25 | 36 | 36-36.4 | 11 | 32 | 42 | |
| M40*1.5 | M40*1.5 | 22-28 | 40 | 40-40.4 | 12 | 32 | 45 | 10PCS |
| M42*2.0 | M42*2.0 | 24-30 | 42 | 42-42.4 | 12 | 36 | 48 | |
| M48*2.0 | M48*2.0 | 25-32 | 48 | 48-48.4 | 13 | 38 | 52 | |
| M50*1.5 | M50*1.5 | 28-36 | 50 | 50-50.4 | 13 | 38 | 56 | 5PCS |
| M54*2.0 | M54*2.0 | 32-38 | 54 | 54-54.4 | 14 | 38 | 60 | |
| M56*2.0 | M56*2.0 | 32-38 | 56 | 56-56.4 | 14 | 38 | 60 | |
| M60*2.0 | M60*2.0 | 37-44 | 60 | 60-60.4 | 14 | 38 | 64 | |
| M63*1.5 | M63*1.5 | 37-44 | 63 | 63-63.4 | 14 | 38 | 70 | |
| M64*2.0 | M64*2.0 | 37-44 | 64 | 64-64.4 | 14 | 38 | 68 | |
| M72*2.0 | M72*2.0 | 42-52 | 72 | 72-72.4 | 15 | 40 | 77 | |
| M76*2.0 | M76*2.0 | 45-55 | 72 | 76-76.4 | 15 | 40 | 77 | |
| M80*2.0 | M80*2.0 | 50-60 | 80 | 80-80.4 | 18 | 44 | 88 | |
| M88*2.0 | M88*2.0 | 60-70 | 88 | 88-88.4 | 20 | 45 | 80 | |
| Bigger dia. zinc metal nickel coated cable gland | ||||||||
| M100*2.0 | M100*2.0 | 70-80 | 100 | 102 | 20 | 50 | 90 | 1PCS |
| M125*3.0 | M125*3.0 | 90-100 | 100 | 122 | 25 | 60 | 90 | |
| M150*3.0 | M150*3.0 | 120-130 | 100 | 152 | 25 | 65 | 90 | |
