RCCN>>Product>>Cable Gland>> RCCN MGA-EMC Brass Cable Gland

RCCN MGA-EMC Brass Cable Gland

EMC防电磁

Thread:Metric
Material:A.C.F are made of copper with nickel .D is made of copper,B.E are made of NBR
Certificates:CE,EX
Operate temperature:-50°C to 250°C
Protection:IP68。

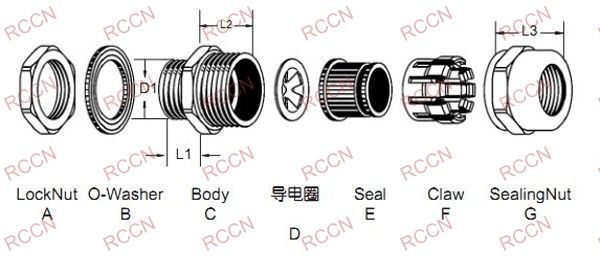

Product characterstics:Special design of part D and E,used with part F, can save your time,
large spread of cable sealing,good re-tensile,waterproof,ashproof,re-salty,
withstand impregnant like acid,alkali,alcohol,oil,grease,EMC cable gland looked like a normal gland,
but with its metal intermediate contact disc which can contact the screen of shielded cable,
helps to achieve an optimum low-resistance EMC bonding and to be attached to withstand electromagenetic interference.

Item No	CableRange Φ	Thread O.D. D1	Panel Mounting Hole	Thread Length L1	Joint Length L2+L3	Spanner size A&F	Std.Pkg Pcs
MGA12*1.5-6EMC	3-6	12	12-12.3	6	19	16	100PCS
MGA12*1.5-8EMC	4-8	12	12-12.3	6	19	18
MGA16*1.5-8EMC	4-8	16	16-16.3	7	20	18
MGA16*1.5-10EMC	6-10	16	16-16.3	7	20	20
MGA18*1.5-8EMC	4-8	18	18-18.3	8	22	18
MGA18*1.5-10EMC	6-10	18	18-18.3	8	22	20
MGA20*1.5-8EMC	4-8	20	20-20.3	8	22	18
MGA20*1.5-10EMC	6-10	20	20-20.3	8	22	20
MGA22*1.5-14EMC	10-14	22	22-22.3	9	23	24	50PCS
MGA24*1.5-14EMC	10-14	24	24-24.3	10	23	24
MGA25*1.5-14EMC	10-14	25	25-25.4	10	23	24
MGA25*1.5-18EMC	13-18	25	25-25.4	10	23	30
MGA27*2.0-18EMC	13-18	27	27-27.4	11	28	30
MGA30*2.0-18EMC	13-18	30	30-30.4	11	28	30	10PCS
MGA32*1.5-18EMC	13-18	32	32-32.4	11	32	30
MGA32*1.5-25EMC	18-25	32	32-32.4	11	32	42
MGA33*2.0-25EMC	18-25	33	33-33.4	11	32	42
MGA36*2.0-25EMC	18-25	36	36-36.4	11	32	42
MGA40*1.5-25EMC	18-25	40	40-40.4	12	32	42
MGA40*1.5-32EMC	25-32	40	40-40.4	12	32	42
MGA42*2.0-25EMC	18-25	42	42-42.4	12	36	42
MGA48*2.0-32EMC	25-32	48	48-48.4	13	38	52	5PCS
MGA50*1.5-32EMC	25-32	50	50-50.4	13	38	60
MGA50*1.5-40EMC	30-40	50	50-50.4	13	38	60
MGA54*2.0-40EMC	30-40	54	54-54.4	14	38	60
MGA56*2.0-40EMC	30-40	56	56-56.4	14	38	60
MGA60*2.0-54EMC	44-54	60	60-60.4	14	38	77
MGA63*1.5-54EMC	44-54	63	63-63.4	14	38	77
