RCCN ELM Enlarging Metal Fittings


RCCN ELM Enlarging Metal Fittings
RCCN ELM Enlarging Metal Fittings


RCCN ELM Enlarging Metal Fittings RCCN ELM Enlarging Metal Fittings RCCN ELM Enlarging Metal Fittings

Thread:Metric.PG.NPT
Material:copper coated nickel
Operate T.:-40°C to 100°C,
short time to 120°C
Colors:silver/yellow
Features:small thread outside
transfer to big thread inside
More choice:speical length
can be produced
such as:REM-M32/M20
Order part no.:ELM-M12/M16
Remarks:not included locknut

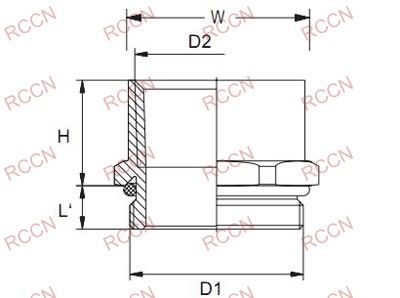

Item No.
D2
D1

Thread
length
L

Height
H

W. across
flats
W

Std.Pkg.
pcs
ELM-M
ELM-M12/M16
M16*1.5
M12*1.5
6.0
8.5
19
50
ELM-M16/M20
M20*1.5
M16*1.5
6.0
8.5
23
50
ELM-M20/M25
M25*1.5
M20*1.5
6.5
9.0
28
50
ELM-M25/M32
M32*1.5
M25*1.5
7.5
20
35
25
ELM-M32/M40
M40*1.5
M32*1.5
8.0
10.0
45
25
ELM-M40/M50
M50*1.5
M40*1.5
9.0
12.5
55
10
ELM-M50/M63
M63*1.5
M50*1.5
10.0
14.0
67
5
ELM-P
ELM-PG7/PG9
PG9
PG7
6.0
8.5
19
50
ELM-PG9/PG11
PG11
PG9
6.5
8.5
21
50
ELM-PG11/PG13.5
PG13.5
PG11
6.5
8.5
23
50
ELM-PG13.5/PG16
PG16
PG13.5
6.5
9.0
25
50
ELM-PG16/PG21
PG21
PG16
7.5
9.5
32
25
ELM-PG21/PG29
PG29
PG21
8.0
10.0
41
25
ELM-PG29/PG36
PG36
PG29
9.0
11.5
52
25
ELM-PG36/PG42
PG42
PG36
10.0
12.5
58
10
ELM-PG42/PG48
PG48
PG42
10.0
14
64
5
ELM-N
ELM-NPT38/NPT12
NPT1/2"
NPT3/8"
6.5
9.0
24
50
ELM-NPT12/NPT34
NPT3/4"
NPT1/2"
6.5
9.0
29
25
ELM-NPT34/NPT1
NPT 1"
NTP3/4"
7.5
10.0
36
10
ELM-NPT1/NPT1-1/4
NPT1 1/4"
NPT 1"
8.0
11.5
46
10
