CONDUIT FITTINGS-NBG
ALL products
Language

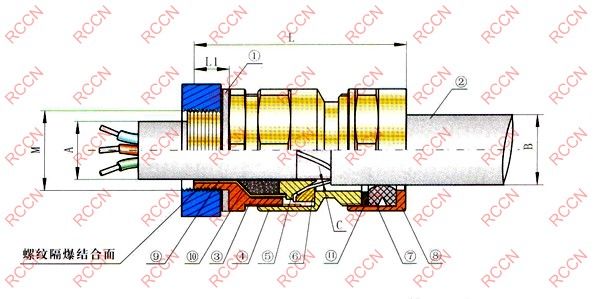

Item No |
Thread |
Panel |
Thread |
CableRange |
CableRange |
C |
L |
EX2-M20*1.5 | 20 | 20-20.3 | 15 | 3-8.5 | 8-13.5 | 0.85 | 73.5 |
EX2-M25*1.5 | 25 | 25-25.4 | 15 | 6-125 | 11.5-16 | 0.85 | 73.5 |
EX2-M25*1.5D | 25 | 25-25.4 | 15 | 6-125 | 15-21 | 0.9 | 73.5 |
EX2-M32*1.5 | 32 | 32-32.4 | 15 | 11-18.5 | 20.5-27.5 | 1.25 | 83 |
EX2-M40*1.5 | 40 | 40-40.4 | 16 | 17-25 | 26-34 | 1.4 | 89 |
EX2-M50*1.5 | 50 | 50-50.4 | 16 | 22-31.5 | 31-40.5 | 1.4 | 91 |
EX2-M50*1.5D | 50 | 50-50.4 | 16 | 29.5-36.5 | 36.5-46.5 | 1.4 | 95 |
EX2-M63*1.5 | 63 | 63-63.4 | 19 | 35.5-42.5 | 43-53 | 1.4 | 107 |
EX2-M63*1.5D | 63 | 63-63.4 | 19 | 40-50 | 49-59.5 | 1.5 | 107 |
EX2-M75*2.0 | 75 | 75-75.4 | 20 | 47-56 | 58-66 | 1.5 | 115 |
EX2-M75*2.0D | 75 | 75-75.4 | 20 | 53-62 | 60.5-72 | 1.5 | 115 |
EX2-M80*2.0 | 80 | 80-80.4 | 20 | 59-68 | 65-78.5 | 1.5 | 121 |
