RCCN EX Brass Cable Gland

RCCN EX Brass Cable Gland    RCCN EX Brass Cable Gland

RCCN EX Brass Cable Gland


RCCN EX Brass Cable Gland RCCN EX Brass Cable Gland
Thread:Metric),G
Material:body is made of copper coated nickel,seal is made of NBR
Certificates:CE,EX
Operate temperature:-40°C to 100°C
Protect:IP65。
Features:used in dangerouse location，fix un-armour cables,explosion-proof equipment，oil projects

Item No

 Thread
Length
L1

Outer
sealing

Outer
sealing

Tape
braid

+Nut Max
platethick

 Joint
Length
H		 Spanne
SW

Std.Pkg
Pcs
Thread length M
EX-M16×1.5-13
16
 4-8.5  8.5-13.5  ≤0.35  ≤10.5
58
24
 50PCS
EX-M16×1.5-16
16
 8-11.5  11.5-16  ≤0.35  ≤10.5
58
24
 EX-M20×1.5-13
16
 4-8.5  8.5-13.5  ≤0.35  ≤10.5
58
24
EX-M20×1.5-16
16
 8-11.5  11.5-16  ≤0.35  ≤10.5
58
24
EX-M20×1.5-21
16
7-14
 15.5-21  ≤0.50  ≤10.5
58
30
 25PCS
EX-M25×1.5-28
16
 13-20  20-28  ≤0.50  ≤10.5
58
36
EX-M32×1.5-34
16
 19-26  26-34  ≤0.55  ≤10.5
65
44
EX-M40×1.5-41
16
 25-32  33-41  ≤0.80  ≤10.5
72
54
 1PCS
EX-M50×1.5-46
16
 32-38  39-46  ≤0.80  ≤10.5
73
64
EX-M50×1.5-53
16
 36-44  45-53  ≤0.80  ≤10.5
73
64
EX-M63×1.5-60
19
 42-50  52-60  ≤0.80  ≤13.5
76
81
EX-M63×1.5-66
19
 50-56  58-66  ≤0.80  ≤13.5
76
81
EX-M75×1.5-66
19
 54-62  64-72  ≤1.00  ≤13.5
82
96
EX-M75×1.5-78
19
 60-68  71-78  ≤1.00  ≤13.5
82
96
EX-M80×2.0-84
19
 62-72  77-84  ≤1.00  ≤13.5
110
110
EX-M80×2.0-90
19
 70-80  80-90  ≤1.00  ≤13.5
110
110
EX-M85×2.0-90
19
 70-80  80-90  ≤1.00  ≤13.5
110
110
 EX-M90×2.0-96
19
 74-84  88-96  ≤1.00  ≤13.5
110
110
EX-M90×2.0-100
19
 80-90  90-100  ≤1.00  ≤13.5
110
110
EX-M100 2.0-100
19
 80-90  90-100  ≤1.00  ≤13.5
110
110
Germany thread PG
 EX-PG9-13
16
 4-8.5  8.5-13.5  ≤0.35  ≤10.5
58
24
 100PCS
 EX-PG9-16
16
 8-11.5  11.5-16  ≤0.35  ≤10.5
58
24
 EX-PG13.5-13
16
 4-8.5  8.5-13.5  ≤0.35  ≤10.5
58
24
 EX-PG13.5-16
16
 8-11.5  11.5-16  ≤0.35  ≤10.5
58
24
 EX-PG13.5-21
16
7-14
 15.5-21  ≤0.50  ≤10.5
58
30
 25PCS
 EX-PG21-28
16
 13-20  20-28  ≤0.50  ≤10.5
58
36
 EX-PG29-34
16
 19-26  26-34  ≤0.55  ≤10.5
65
44
 EX-PG36-41
16
 25-32  33-41  ≤0.80  ≤10.5
72
54
 1PCS
 EX-PG42-46
16
 32-38  39-46  ≤0.80  ≤10.5
73
64
 EX-PG42-53
16
 36-44  45-53  ≤0.80  ≤10.5
73
64
 EX-PG48-60
19
 42-50  52-60  ≤0.80  ≤13.5
76
81
 EX-PG48-66
19
 50-56  58-66  ≤0.80  ≤13.5
76
81
America thread NPT
EX-NPT1/2-13
16
 4-8.5  8.5-13.5  ≤0.35  ≤10.5
58
24
 50PCS
EX-NPT1/2-16
16
 8-11.5  11.5-16  ≤0.35  ≤10.5
58
24
EX-NPT1/2-13
16
 4-8.5  8.5-13.5  ≤0.35  ≤10.5
58
24
EX-NPT1/2-16
16
 8-11.5  11.5-16  ≤0.35  ≤10.5
58
24
EX-NPT1/2-21
16
7-14
 15.5-21  ≤0.50  ≤10.5
58
30
 25PCS
EX-NPT3/4-28
16
 13-20  20-28  ≤0.50  ≤10.5
58
36
EX-NPT1-34
16
 19-26  26-34  ≤0.55  ≤10.5
65
44
EX-NPT1-1/4-41
16
 25-32  33-41  ≤0.80  ≤10.5
72
54
 1PCS
EX-NPT1-1/2-46
16
 32-38  39-46  ≤0.80  ≤10.5
73
64
EX-NPT1-1/2-53
16
 36-44  45-53  ≤0.80  ≤10.5
73
64
EX-NPT2-60
19
 42-50  52-60  ≤0.80  ≤13.5
76
81
EX-NPT2-66
19
 50-56  58-66  ≤0.80  ≤13.5
76
81
EX-NPT2-1/2-66
19
 54-62  64-72  ≤1.00  ≤13.5
82
96
EX-NPT2-1/2-78
19
 60-68  71-78  ≤1.00  ≤13.5
82
96
 EX-NPT3-96
19
 74-84  88-96  ≤1.00  ≤13.5
110
110
 EX-NPT3-100
19
 80-90  90-100  ≤1.00  ≤13.5
110
110
 EX-NPT3-1/2-100
19
 80-90  90-100  ≤1.00  ≤13.5
110
110
English thread G
EX-G1/2-13
16
 4-8.5  8.5-13.5  ≤0.35  ≤10.5
58
24
 50PCS
EX-G1/2-16
16
 8-11.5  11.5-16  ≤0.35  ≤10.5
58
24
EX-G1/2-13
16
 4-8.5  8.5-13.5  ≤0.35  ≤10.5
58
24
EX-G1/2-16
16
 8-11.5  11.5-16  ≤0.35  ≤10.5
58
24
EX-G1/2-21
16
7-14
 15.5-21  ≤0.50  ≤10.5
58
30
 25PCS
EX-G3/4-28
16
 13-20  20-28  ≤0.50  ≤10.5
58
36
EX-G1-34
16
 19-26  26-34  ≤0.55  ≤10.5
65
44
EX-G1-1/4-41
16
 25-32  33-41  ≤0.80  ≤10.5
72
54
 1PCS
EX-G1-1/2-46
16
 32-38  39-46  ≤0.80  ≤10.5
73
64
EX-G1-1/2-53
16
 36-44  45-53  ≤0.80  ≤10.5
73
64
EX-G2-60
19
 42-50  52-60  ≤0.80  ≤13.5
76
81
EX-G2-66
19
 50-56  58-66  ≤0.80  ≤13.5
76
81
EX-G2-1/2-66
19
 54-62  64-72  ≤1.00  ≤13.5
82
96
EX-G2-1/2-78
19
 60-68  71-78  ≤1.00  ≤13.5
82
96
EX-G3-96
19
 74-84  88-96  ≤1.00  ≤13.5
110
110
EX-G3-100
19
 80-90  90-100  ≤1.00  ≤13.5
110
110
EX-G3-1/2-100
19
 80-90  90-100  ≤1.00  ≤13.5
110
110



RCCN EX Brass Cable Gland

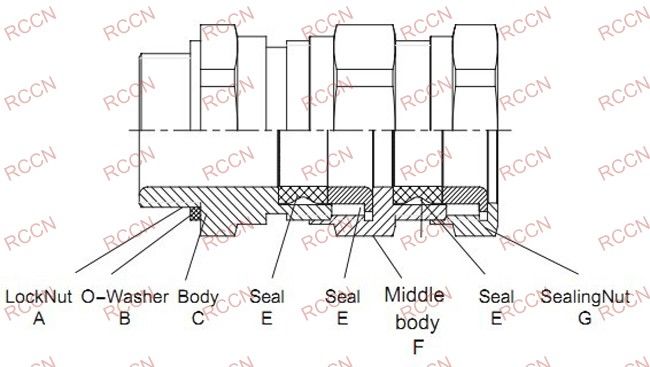

分解图
RCCN EX Brass Cable Gland


RCCN EX Brass Cable Gland
