RCCN G&NPT Brass Cable Gland
  |

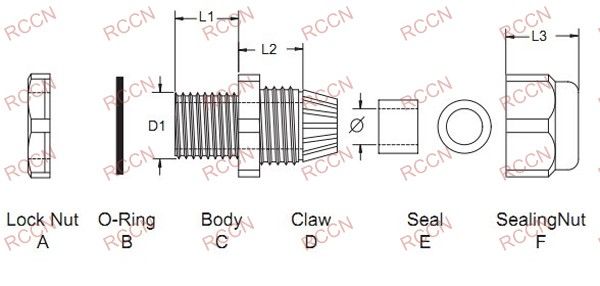

| Thread:DIN PG，G/PF，NPT Material:A.C.F are made of brass.D is made of insulated rubber.B.E are made of rubber NBR。 Protect grade is up to IP67 in the suitable use way Operate temperature:-40°C to 100°C Product characterstics:Special design of part D and E,used with part F, can save your time, large spread of cable sealing,good re-tensile,waterproof,ashproof,re-salty, withstand impregnant like acid,alkali,alcohol,oil,grease More choice:Length added gland,many other sizes of seal,glands made of rubber EPDM for outdoor use |
| Item No | CableRange Φ |
Thread Length |
+Nut Max platethick |
Joint Length L2+L3 |
Spanner size A&F |
Std.Pkg Pcs |
|
NPT
|
||||||
| A-NPT1/4-6.5 | 3-6.5 | 6 | ≤2.5 | 19 | 14/14 | 100PCS |
| A-NPT3/8-8 | 4-8 | 7 | ≤3.5 | 20 | 18/18 | |
| A-NPT3/8-10 | 5-10 | 7 | ≤3.5 | 22 | 20/20 | |
| A-NPT1/2-12 | 6-12 | 8 | ≤4.5 | 23 | 22/22 | |
| A-NPT1/2-14 | 10-14 | 8 | ≤4.5 | 23 | 24/24 | |
| A-NPT3/4-14 | 10-14 | 9 | ≤4.5 | 23 | 28/24 | 50PCS |
| A-NPT3/4-17 | 11-17 | 9 | ≤4.5 | 23 | 30/28 | |
| A-NPT3/4-18 | 13-18 | 9 | ≤4.5 | 23 | 30/30 | |
| A-NPT1-18 | 13-18 | 11 | ≤5.5 | 32 | 36/30 | |
| A-NPT1-21 | 15-21 | 11 | ≤5.5 | 32 | 36/36 | |
| A-NPT1-25 | 18-25 | 11 | ≤5.5 | 32 | 40/40 | |
| A-NPT1-1/4-25 | 18-25 | 11 | ≤5.5 | 32 | 44/40 | 5PCS |
| A-NPT1-1/4-28 | 19-28 | 11 | ≤5.5 | 32 | 44/44 | |
| A-NPT1-1/4-32 | 22-32 | 11 | ≤5.5 | 32 | 50/50 | |
| A-NPT1-1/2-32 | 22-32 | 11 | ≤5.5 | 32 | 50/50 | |
| A-NPT1-1/2-38 | 30-38 | 11 | ≤5.5 | 32 | 58/58 | |
| A-NPT2-44 | 34-44 | 14 | ≤8.5 | 38 | 64/64 | |
| A-NPT2-1/2-55 | 42-52 | 15 | ≤9.5 | 50 | 81/81 | 1PCS |
| A-NPT3-70 | 60-70 | 20 | ≤13.5 | 50 | 96/96 | |
| A-NPT3-1/2-80 | 70-80 | 20 | ≤13.5 | 50 | 110 | |
|
G
|
||||||
| A-G1/4-6.5 | 3-6.5 | 6 | ≤2.5 | 19 | 14/14 | 100PCS |
| A-G3/8-8 | 4-8 | 7 | ≤3.5 | 20 | 18/18 | |
| A-G3/8-10 | 5-10 | 7 | ≤3.5 | 22 | 18/18 | |
| A-G1/2-12 | 6-12 | 8 | ≤4.5 | 23 | 22/22 | |
| A-G1/2-14 | 10-14 | 8 | ≤4.5 | 23 | 24/24 | |
| A-G3/4-14 | 10-14 | 9 | ≤4.5 | 23 | 28/24 | 50PCS |
| A-G3/4-17 | 11-17 | 9 | ≤4.5 | 23 | 30/28 | |
| A-G3/4-18 | 13-18 | 9 | ≤4.5 | 23 | 30/30 | |
| A-G1-18 | 13-18 | 11 | ≤5.5 | 32 | 36/30 | |
| A-G1-21 | 15-21 | 11 | ≤5.5 | 32 | 36/36 | |
| A-G1-25 | 18-25 | 11 | ≤5.5 | 32 | 40/40 | |
| A-G1-1/4-25 | 18-25 | 11 | ≤5.5 | 32 | 44/40 | 5PCS |
| A-G1-1/4-28 | 19-28 | 11 | ≤5.5 | 32 | 44/44 | |
| A-G1-1/4-32 | 22-32 | 11 | ≤5.5 | 32 | 50/50 | |
| A-G1-1/2-32 | 22-32 | 11 | ≤5.5 | 32 | 50/50 | |
| A-G1-1/2-38 | 30-38 | 11 | ≤5.5 | 32 | 58/58 | |
| A-G2-44 | 34-44 | 14 | ≤8.5 | 38 | 64/64 | |
| A-G2-1/2-55 | 42-52 | 15 | ≤9.5 | 50 | 81/81 | 1PCS |
| A-G3-70 | 60-70 | 20 | ≤13.5 | 50 | 96/96 | |
| A-G3-1/2-80 | 70-80 | 20 | ≤13.5 | 50 | 110 | |
