RCCN GAS&NPTS Stainless Steel Cable Gland

RCCN GAS&NPTS  Stainless Steel Cable Gland
RCCN GAS&NPTS  Stainless Steel Cable Gland


RCCN GAS&NPTS  Stainless Steel Cable Gland

Thread:G/PF,NPT

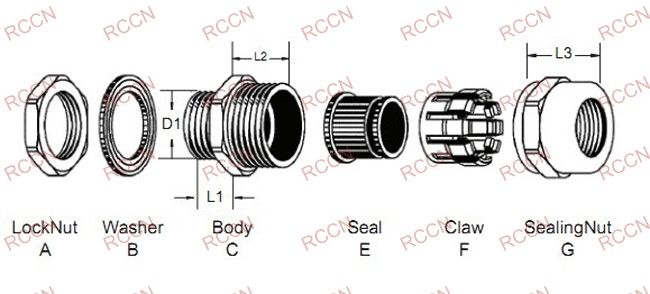

Mater ial :A.C.F are made of copper wi th nickel .B.E are made of NBR
Cer t i f icates:CE,EX
Operate temperature: -50°C to 250°C
Protect ion: IP68。
Product characterst ics:Special design of par t D and E,used wi th par t F, can save your t ime,
large spread of cable seal ing,good re- tensi le,waterproof ,ashproof , re-sal ty,
wi thstand impregnant l ike acid,alkal i ,alcohol ,oi l ,grease
Length added is avai lable, such as:PG13.5AS-10/L=15  Note:not includ lock nut ,but wi th O- r ing

Item No

Thread

Cable
Range
Φ

Thread
O.D.
D1

Panel
Mounting
Hole

Thread
Length
L1

Joint
Length
L2+L3

Spanner
size
F

Std.Pkg
Pcs


G Tube thread
100PCS
GS1/4 G1/4'' 3-6 13.2 13.2-13.4 6 19 16
GS3/8 G3/8'' 4-8 16.5 16.5-17.1 7 20 18
GS1/2 G1/2'' 8-12 21.3 21.0-21.3 8 23 22
GS3/4 G3/4'' 13-18 26.6 26.5-26.6 11 28 30 20PCS
GS1 G1'' 15-22 33.4 33.2-33.4 11 32 36
GS1 1/4 G1 1/4'' 22-28 42.1 41.9-42.1 12 36 48 10PCS
GS1 1/2 G1 1/2'' 26-32 47.8 47.8-48.0 13 38 52
GS2 G2'' 37-44 59.6 59.6-60.1 14 37 64
NPT America thread
100PCS
NPTS3/8'' NPT3/8'' 4-8 16.5 16.5-17.1 7 20 18
NPTS1/2'' NPT1/2'' 8-12 21.3 21.0-21/3 8 23 22
NPTS3/4'' NPT3/4'' 13-18 26.6 26.5-26.6 11 28 30
NPTS1'' NPT1'' 15-22 33.4 33.2-33.4 11 32 36 20PCS
NPTS1 1/4'' NPT1 1/4'' 22-28 42.1 41.9-42.1 12 36 48
NPTS1 1/2'' NPT1 1/2'' 26-32 47.8 47.8-48.0 13 38 52 10PCS
NPTS2'' NPT2'' 37-44 59.6 59.6-60.1 14 37 64
