RCCN M-S&M-D Brass Cable Gland
  |

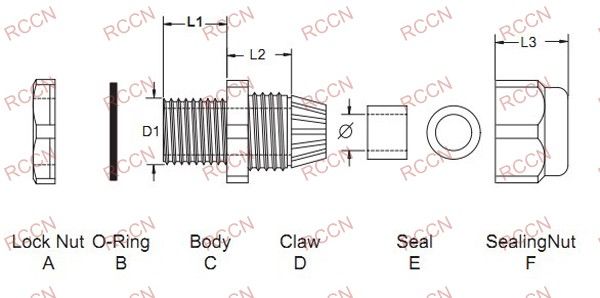

| Thread:Metric。 Material:A.C.F are made of brass.D is made of insulated rubber.B.E are made of rubber NBR。 Protect grade is up to IP67 in the suitable use way Operate temperature:-40°C to 100°C Product characterstics:Special design of part D and E,used with part F, can save your time, large spread of cable sealing,good re-tensile,waterproof,ashproof,re-salty, withstand impregnant like acid,alkali,alcohol,oil,grease |
| Item No | Thread | CableRange Φ |
Thread O.D. D1 |
Panel Mounting Hole |
Thread Length L1 |
Joint Length L2+L3 |
Spanner size A&F |
Std.Pkg Pcs |
|
特殊范围型：
|
||||||||
| M16*1.5S | M16*1.5 | 3-6 | 16 | 16-16.3 | 8 | 20 | 18 | 100PCS |
| M16*1.5D | M16*1.5 | 6-10 | 16 | 16-16.3 | 8 | 20 | 18 | |
| M20*1.5S | M20*1.5 | 6-10 | 20 | 20-20.3 | 8 | 23 | 22 | |
| M20*1.5D | M20*1.5 | 10-14 | 20 | 20-20.3 | 8 | 23 | 22 | |
| M24*1.5S | M24*1.5 | 8-12 | 24 | 24-24.3 | 10 | 23 | 27 | |
| M25*1.5S | M25*1.5 | 10-14 | 25 | 25-25.4 | 10 | 23 | 28 | 50PCS |
| M25*1.5D | M25*1.5 | 13-18 | 25 | 25-25.4 | 10 | 23 | 28 | |
| M27*2.0S | M27*2.0 | 10-16 | 27 | 27-27.4 | 11 | 28 | 30 | |
| M30*2.0S | M30*2.0 | 10-16 | 30 | 30-30.4 | 11 | 28 | 32 | |
| M32*1.5S | M32*1.5 | 13-18 | 32 | 32-32.4 | 11 | 32 | 36 | |
| M32*1.5D | M32*1.5 | 18-25 | 32 | 32-32.4 | 11 | 32 | 36 | |
| M36*2.0S | M36*2.0 | 15-22 | 36 | 36-36.4 | 11 | 32 | 42 | |
| M40*1.5S | M40*1.5 | 18-25 | 40 | 40-40.4 | 12 | 32 | 45 | 10PCS |
| M40*1.5D | M40*1.5 | 22-32 | 40 | 40-40.4 | 12 | 32 | 45 | |
|
特殊加长型：
|
||||||||
| M16*1.5LS | M16*1.5 | 3-6 | 16 | 16-16.3 | 10 | 20 | 18 | 100PCS |
| M16*1.5LD | M16*1.5 | 5-10 | 16 | 16-16.3 | 10 | 20 | 18 | |
| M20*1.5LS | M20*1.5 | 5-10 | 20 | 20-20.3 | 10 | 23 | 22 | |
| M20*1.5LD | M20*1.5 | 8-14 | 20 | 20-20.3 | 10 | 23 | 22 | |
| M24*1.5LS | M24*1.5 | 6-12 | 24 | 24-24.3 | 12 | 23 | 27 | |
| M25*1.5LS | M25*1.5 | 10-14 | 25 | 25-25.4 | 12 | 23 | 28 | |
| M25*1.5LD | M25*1.5 | 13-18 | 25 | 25-25.4 | 12 | 23 | 28 | |
| M27*2.0LS | M27*2.0 | 10-16 | 27 | 27-27.4 | 12 | 28 | 30 | 50PCS |
| M30*2.0LS | M30*2.0 | 10-16 | 30 | 30-30.4 | 12 | 28 | 32 | |
| M32*1.5LS | M32*1.5 | 13-18 | 32 | 32-32.4 | 12 | 32 | 36 | |
| M32*1.5LD | M32*1.5 | 18-25 | 32 | 32-32.4 | 12 | 32 | 36 | |
| M36*2.0LS | M36*2.0 | 15-22 | 36 | 36-36.4 | 12 | 32 | 42 | |
| M40*1.5LS | M40*1.5 | 18-25 | 40 | 40-40.4 | 15 | 32 | 45 | 10PCS |
| M40*1.5LD | M40*1.5 | 22-32 | 40 | 40-40.4 | 15 | 32 | 45 | |
