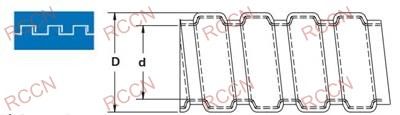

RCCN MCS Non-Jacket Metal Flexible Conduit
 |
| Material:Stainess steel tape CertificatesCE,RoHS Products Characteristics:econimic,soft and perfect fleixble,easy to install wires or cables Use domain:protect cable or wired in house, equipments and so on. Use way:insert the cables into the conduit Functions:protect wires and cables，insulated,waterproof Delivery time:1-2 weeks,come with MOQ |
|
Item No. |
Trade Sizes |
d |
D |
Bending Radius mm±10% |
Suitable metal connector NBG |
M |
|
|
Metric ø |
|||||||
| MCS-03 | 10 | 1/4" | 10.0 | 14.4 | 45 | NBG-03 | 100M |
| MCS-04 | 13 | 3/8" | 12.7 | 17.5 | 50 | NBG-04 | 100M |
| MCS-05 | 16 | 1/2" | 16.0 | 20.8 | 65 | NBG-05 | 100M |
| MCS-06 | 20 | 3/4" | 20.2 | 25.5 | 75 | NBG-06 | 50M |
| MCS-08 | 25 | 1" | 26.2 | 32.4 | 100 | NBG-08 | 50M |
| MCS-10 | 32 | 1 1/4" | 32.5 | 39.0 | 125 | NBG-10 | 25M |
| MCS-12 | 38 | 1 1/2 | 40.1 | 46.2 | 150 | NBG-12 | 25M |
| MCS-16 | 51 | 2" | 51.3 | 59.5 | 175 | NBG-16 | 25M |
MCT-1
