RCCN NBF Conduit Fittings
 |
|
Thread:G |
Item No. |
Thread G/M/PG |

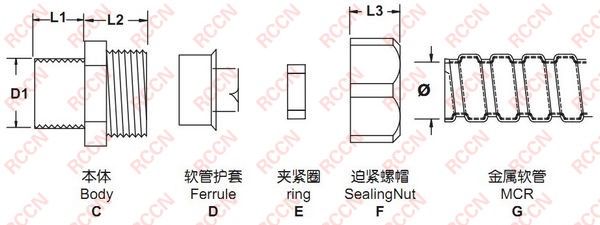

suitable RCCN metal flexible conduit MCR | Thread O.D. D1 |
Thread Length L1 |
Joint Length L2+L3 |
Packing pcs |
||
| Corresponding item no |
Metric ø | British | ||||||
|
NBG-G
|
||||||||
| NBF-04G | G3/8" | MCR-04 | 13 | 3/8" | 16.5 | 8 | 18 | 100 |
| NBF-05G | G1/2" | MCR-05 | 16 | 1/2" | 21.3 | 11 | 23 | 100 |
| NBF-06G | G3/4" | MCR-06 | 20 | 3/4" | 26.6 | 14 | 22 | 50 |
| NBF-08G | G1" | MCR-08 | 25 | 1" | 33.4 | 15 | 28 | 50 |
| NBF-10G | G1 1/4" | MCR-10 | 32 | 1 1/4" | 42.1 | 15 | 30 | 25 |
| NBF-12G | G1 1/2" | MCR-12 | 38 | 1 1/2" | 47.8 | 16 | 32 | 25 |
| NBF-16G | G2" | MCR-16 | 51 | 2" | 59.6 | 18 | 34 | 10 |
| NBF-20G | G2 1/2" | MCR-20 | 64 | 2 1/2" | 75.1 | 22 | 38 | 10 |
| NBF-24G | G3" | MCR-24 | 80 | 3" | 87.8 | 22 | 46 | 5 |
| NBF-32G | G4" | MCR-32 | 100 | 4" | 113 | 24 | 50 | 5 |
|
NBF-M
|
||||||||
| NBF-04M | M16*1.5 | MCR-04 | 13 | 3/8" | 16 | 8 | 18 | 100 |
| NBF-05M | M20*1.5 | MCR-05 | 16 | 1/2" | 20 | 11 | 23 | 100 |
| NBF-06M | M25*1.5 | MCR-06 | 20 | 3/4" | 25 | 14 | 22 | 50 |
| NBF-08M | M32*1.5 | MCR-08 | 25 | 1" | 32 | 15 | 28 | 50 |
| NBF-10M | M40*1.5 | MCR-10 | 32 | 1 1/4" | 40 | 15 | 30 | 25 |
| NBF-12M | M50*1.5 | MCR-12 | 38 | 1 1/2" | 50 | 16 | 32 | 25 |
| NBF-16M | M63*1.5 | MCR-16 | 51 | 2" | 63 | 18 | 34 | 10 |
