RCCN Metal Flexible Conduit Fittings
 |

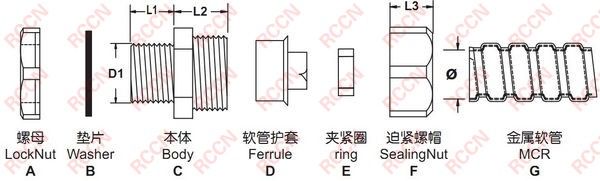

| Thread:G,Metric, PG Material:A.C.F are made from zincic metal.B.E are made of rubber NBR).D is made of sheet iron . Certificates:CE:C4M20412-4120-E-16 RoHS:SH549670 Color:Argentine Protect class:IP6 Work T.:-40°C to 100°C,120°C in a short time. Products characteristics: 1.thickness added zincic metal,good looking 2.conmmon impregnant resistant,such as water,salty,alcohol,oil, grease and so on. 3.we can adjust the sizes according to your request. Marks:The finished goods are including locknut and washer. |
Item No. |
Thread G/M/PG |
Suitable RCCN metal flexible conduit MCR | Thread O.D. D1 |
Thread Length L1 |
Joint Length L2+L3 |
Packing pcs |
||
| Corresponding item no |
Metric ø | British | ||||||
|
Tube thread NBG-G
|
||||||||
| NBG-01G | G1/4" | MCR-01 | 6 | 3/16" | 13.2 | 8 | 16 | 100 |
| NBG-02G | G1/4" | MCR-02 | 8 | 5/16" | 13.2 | 8 | 16 | 100 |
| NBG-03G | G3/8" | MCR-03 | 10 | 1/4" | 16.5 | 8 | 17 | 100 |
| NBG-04G | G3/8" | MCR-04 | 13 | 3/8" | 16.5 | 8 | 18 | 100 |
| NBG-05G | G1/2" | MCR-05 | 16 | 1/2" | 21.3 | 11 | 23 | 100 |
| NBG-06G | G3/4" | MCR-06 | 20 | 3/4" | 26.6 | 14 | 22 | 50 |
| NBG-08G | G1" | MCR-08 | 25 | 1" | 33.4 | 15 | 28 | 50 |
| NBG-10G | G1 1/4" | MCR-10 | 32 | 11/4" | 42.1 | 15 | 30 | 25 |
| NBG-12G | G1 1/2" | MCR-12 | 38 | 11/2" | 47.8 | 16 | 32 | 25 |
| NBG-16G | G2" | MCR-16 | 51 | 2 | 59.6 | 18 | 34 | 10 |
| NBG-20G | G2 1/2" | MCR-20 | 64 | 2 1/2" | 75.1 | 22 | 38 | 10 |
| NBG-24G | G3" | MCR-24 | 80 | 3" | 87.8 | 22 | 46 | 5 |
| NBG-32G | G4" | MCR-32 | 100 | 4" | 113 | 24 | 50 | 5 |
|
Metric thread NBG-M
|
||||||||
| NBG-01M | M14*1.5 | MCR-01 | 6 | 3/16" | M14*1.5 | 8 | 16 | 100 |
| NBG-02M | M14*1.5 | MCR-02 | 8 | 5/16" | M14*1.5 | 8 | 16 | 100 |
| NBG-03M | M16*1.5 | MCR-03 | 10 | 1/4 | M16*1.5 | 8 | 17 | 100 |
| NBG-04M | M16*1.5 | MCR-04 | 13 | 3/8" | M16*1.5 | 8 | 18 | 100 |
| NBG-05M | M20*1.5 | MCR-05 | 16 | 1/2" | M20*1.5 | 11 | 23 | 100 |
| NBG-06M | M25*1.5 | MCR-06 | 20 | 3/4" | M25*1.5 | 14 | 22 | 50 |
| NBG-08M | M32*1.5 | MCR-08 | 25 | 1" | M32*1.5 | 15 | 28 | 50 |
| NBG-10M | M40*1.5 | MCR-10 | 32 | 11/4" | M40*1.5 | 15 | 30 | 25 |
| NBG-12M | M50*1.5 | MCR-12 | 38 | 1 1/2 | M50*1.5 | 16 | 32 | 25 |
| NBG-16M | M63*1.5 | MCR-16 | 51 | 2" | M63*1.5 | 18 | 34 | 10 |
| NBG-20M | M76*2 | MCR-20 | 64 | 2 1/2" | M76*2 | 22 | 38 | 10 |
| NBG-24M | M88*2 | MCR-24 | 80 | 3" | M88*2 | 22 | 46 | 5 |
| NBG-32M | M114*2 | MCR-32 | 100 | 4" | M114*2 | 24 | 50 | 5 |
|
Metric thread NBG-PG
|
||||||||
| NBG-03P | PG9 | MCR-03 | 10 | 1/4" | 15.2 | 8 | 16 | 100 |
| NBG-04P | PG11 | MCR-04 | 13 | 3/8" | 18.6 | 9 | 17 | 100 |
| NBG-05P | PG13.5 | MCR-05 | 16 | 1/2" | 20.4 | 11 | 23 | 100 |
| NBG-06P | PG21 | MCR-06 | 20 | 3/4" | 28.3 | 14 | 23 | 50 |
| NBG-08P | PG29 | MCR-08 | 25 | 1" | 37.0 | 15 | 28 | 50 |
| NBG-10P | PG29 | MCR-10 | 32 | 1 1/4" | 37.0 | 15 | 30 | 25 |
| NBG-12P | PG36 | MCR-12 | 38 | 11/2" | 47.0 | 16 | 32 | 25 |
| NBG-16P | PG48 | MCR-16 | 51 | 2" | 59.3 | 18 | 34 | 10 |
