RCCN MCR Metal Flexible Conduit


RCCN MCR Metal Flexible Conduit RCCN MCR Metal Flexible Conduit
RCCN MCR Metal Flexible Conduit

RCCN MCR Metal Flexible Conduit

Material:(inner):zinc coated steel, special insulated processed.
              (outer):UL approved PVC
Certificates:CE:C4M20509-2473-E-16 RoHS:SH549670Fireproof class:UL94V-2,low smoking,
                  poison free
Color:black, gray
Work T.:-10℃ to +80℃,100℃ in a short time
Products Characteristics:1.good waterproof,insulated,retension
                                       2.PVC wrapped,PVC is UV and inflammation resistant
                                       3.uneasy to break and construction changing, for its special design
                                       4.smoonth inside, make the wire and cable install easily
Use domain:railway,communicate project,air-dondition,machines.roboticized equipments,power
                   plant ships and so on
Use way:insert the cables into the conduit, then fix the correct connectors.



Item No.

 Trade Sizes

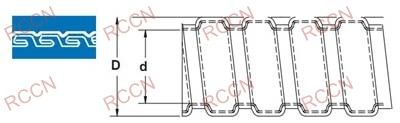

I.D.
d

O.D.
D


Bending Radius
mm±10%
Suitable metal
connector
NBG
Packing
M
Black Gray
Metric ø
British
MCR-01B MCR-01G 6 3/16'' 6.0±0.3 9.2±0.5 40 NBG-01 100M
MCR-02B MCR-02G 8 5/16'' 8.0±0.3 11.8±0.5 45 NBG-02 100M
MCR-03B MCR-03G 10 1/4'' 10.0±0.3 14.5±0.5 55 NBG-03 100M
MCR-04B MCR-04G 13 3/8'' 12.5±0.3 16.8±0.5 65 NBG-04 100M
MCR-05B MCR-05G 16 1/2'' 15.5±0.3 20.2±0.5 85 NBG-05 100M
MCR-06B MCR-06G 20 3/4'' 20.0±0.3 25.0±0.5 100 NBG-06 50M
MCR-08B MCR-08G 25 1'' 25.0±0.3 30.7±0.5 120 NBG-08 50M
MCR-10B MCR-10G 32 1 1/4'' 32.0±0.3 38.6±0.5 150 NBG-10 25M
MCR-12B MCR-12G 38 1 1/2'' 38.0±1.0 44.6±1.0 180 NBG-12 25M
MCR-16B MCR-16G 51 2'' 51.0±1.0 59.0±1.0 220 NBG-16 10M
MCR-20B MCR-20G 64 2 1/2'' 64.0±1.5 73.5±1.5 310 NBG-20 10M
MCR-24B MCR-24G 75 3'' 75.0±2.0 83.5±2.0 350 NBG-24 10M
MCR-32B MCR-32G 100 4'' 100.0±3.0 109.5±3.0 410 NBG-32 10M
MCR-36B MCR-36G 125 5'' 125.00±3.0 135.5±3.0 460 NBG-36 5M
MCR-38B MCR-38G 150 6'' 150.0±4.0 160.5±4.0 500 NBG-38 5M
