RCCN Strain Relief Cable Gland
 |

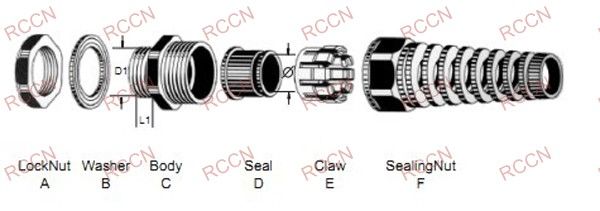

| Thread:Metric/EN50262,DIN STANDARD Materail:A.C.D.F made of Rohs approved NYLON66, B.E made of NBR Certificates:CE, SGS,REACH,REACH。 Fireproof class:UL94V-2。 Operate temperature:-50°C to 150°C。 Protect:IP68。 Color:light gray(RAL7035)、black(RAL9005) |
Item No. |
Thread |
CableRange Φ |
Thread O.D. D1 |
Panel Mounting Hole |
Thread Length L1 |
Spanner size A&F |
||||
| Black | White | |||||||||
| MG12A-05-SRB | MG12A-05-SRG | M12*1.5 | 3-5.3 | 12 | 12-12.3 | 8.5 | 18/19 | |||
| MG12A-08-SRB | MG12A-08-SRG | M12*1.5 | 4-8 | 12 | 12-12.3 | 8.5 | 18/19 | |||
| MG16A-07-SRB | MG16A-07-SRG | M16*1.5 | 4-7 | 16 | 16-16.3 | 15 | 22/22 | |||
| MG16A-10-SRB | MG16A-10-SRG | M16*1.5 | 6-10 | 16 | 16-16.3 | 15 | 22/22 | |||
| MG20A-11-SRB | MG20A-11-SRG | M20*1.5 | 6-11 | 20 | 20-20.3 | 15 | 27/27 | |||
| MG20A-14-SRB | MG20A-14-SRG | M20*1.5 | 9-14 | 20 | 20-20.3 | 15 | 27/27 | |||
| MG25A-16-SRB | MG25A-16-SRG | M25*1.5 | 10-6 | 25 | 25-25.3 | 15 | 33/33 | |||
| MG25A-18-SRB | MG25A-18-SRG | M25*1.5 | 13-18 | 25 | 25-25.3 | 15 | 33/33 | |||
|
PG
|
||||||||||
| PG7A-05-SRB | PG7A-05-SRG | PG7 | 3-5.5 | 12.5 | 12.5-12.8 | 8 | 17/19 | |||
| PG7A-08-SRB | PG7A-08-SRG | PG7 | 4-8 | 12.5 | 12.5-12.8 | 8 | 17/19 | |||
| PG9A-05-SRB | PG9A-05-SRG | PG9 | 3-5.5 | 15.2 | 15.2-15.5 | 8.2 | 22/19 | |||
| PG9A-08-SRB | PG9A-08-SRG | PG9 | 4-8 | 15.2 | 15.2-15.5 | 8.2 | 22/19 | |||
| PG11A-07-SRB | PG11A-07-SRG | PG11 | 4-7 | 18.6 | 18.6-18.9 | 10 | 24/22 | |||
| PG11A-10-SRB | PG11A-10-SRG | PG11 | 5-10 | 18.6 | 18.6-18.9 | 10 | 24/22 | |||
| PG13.5A-08-SRB | PG13.5A-08-SRG | PG13.5 | 4-8 | 20.4 | 20.4-20.7 | 10 | 27/24 | |||
| PG13.5A-12-SRB | PG13.5A-12-SRG | PG13.5 | 6-12.5 | 20.4 | 20.4-20.7 | 10 | 27/24 | |||
| PG16A-11-SRB | PG16A-11-SRG | PG16 | 6-11 | 22.5 | 22.5-22.8 | 10.8 | 30/27 | |||
| PG16A-14-SRB | PG16A-14-SRG | PG16 | 8.5-14 | 22.5 | 22.5-22.8 | 10.8 | 30/27 | |||
| PG21A-16-SRB | PG21A-16-SRG | PG21 | 10-16 | 28.3 | 28.3-28.7 | 12 | 36/33 | |||
| PG21A-18-SRB | PG21A-18-SRG | PG21 | 12.5-18 | 28.3 | 28.3-28.7 | 12 | 36/33 | |||
