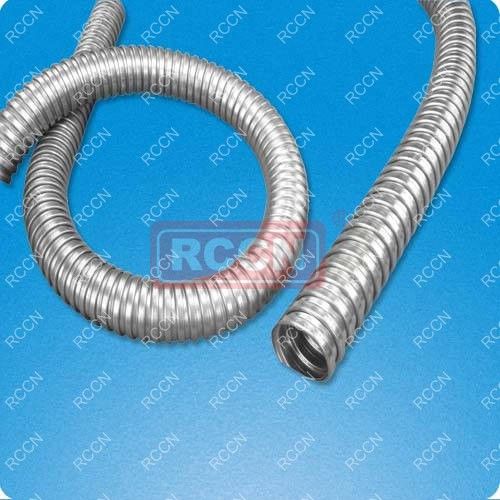

RCCN MC Non-Jacket Metal Flexible Conduit



RCCN MC Non-Jacket Metal Flexible Conduit


RCCN MC Non-Jacket Metal Flexible Conduit

RCCN MC Non-Jacket Metal Flexible Conduit

Material:(inner):zinc coated steel, special insulated processed.
Certificates:CE:C4M20509-2473-E-16 RoHS:SH549670
Use domain:railway,communicate project,air-dondition,machines.roboticized equipments,power plant
ships and so on
Use way:insert the cables into the conduit, then fix by the correct connectors.

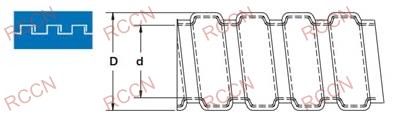

Item No.
 Trade Sizes
I.D.
d
O.D.
D
Bending Radius
mm±10%		 Suitable meta
connector
NBG
Packing
M

 -
Metric ø
British
MC-01 - 6 3/16" 6.0±0.3 9.2±0.5 40 NBG-01 200M
MC-02 - 8 5/16" 8.0±0.3 12.3±0.5 45 NBG-02 200M
MC-03 - 10 1/4" 10.0±0.3 15.0±0.5 50 NBG-03 100M
MC-04 - 13 3/8" 12.5±0.3 17.5±0.5 60 NBG-04 100M
MC-05 - 16 1/2" 15.5±0.3 21.2±0.5 75 NBG-05 100M
MC-06 - 20 3/4" 20.0±0.3 26.0±0.5 100 NBG-06 50M
MC-08 - 25 1" 25.0±0.3 31.5±0.5 100 NBG-08 50M
MC-10 - 32 1 1/4" 32.0±0.3 38.5±0.5 135 NBG-10 25M
MC-12 - 38 1 1/2 38.0±0.3 45.0±0.5 160 NBG-12 25M
MC-16 - 51 2" 50.0±0.3 58.6±0.5 190 NBG-16 25M
MC-20 - 64 2 1/2" 62.5±0.3 72.5±0.5 250 NBG-20 10M
MC-24 - 75 3" 73.0±0.3 83.5±0.5 320 NBG-24 10M
MC-32 - 100 4" 97.0±0.3 108.5±0.5 380 NBG-32 10M
