RCCN PG Nylon Cable Gland
    |

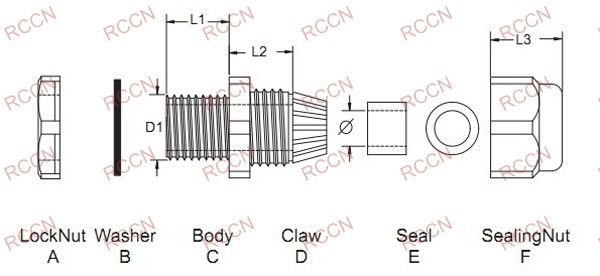

| Time saving, cable can be easily inserted into through the gland without dismantling the parts. *Suggested clearance hole for non-threaded mounting. *Suitable for fixing wires of machines, electrical applications, mechanical control boards/ boxes. *The gland can wihtstand the temp. up to140oC (284°F) in short time. *Material: Polyamide 6.6, UL94 V2 Neoprene for seal insert, with nut *Color: Black, light grey |
Item No. |
Thread | CableRange ￠ |
Thread O.D. D1 |
Panel Mounting Hole |
Thread Length L1 |
Spanner size A&F |
Std.Pkg. pcs |
|
White |
Black |
|||||||
|
Short thread
|
||||||||
| PG-7W | PG-7B | PG7 | 3-6.5 | 12.5 | 12.5-12.8 | 8 | 18/16 | 100PCS |
| PG-9W | PG-9B | PG9 | 4-8 | 15.2 | 15.2-15.8 | 8 | 22/19 | |
| PG-11W | PG-11B | PG11 | 5-10 | 18.6 | 18.6-18.9 | 8 | 24/22 | |
| PG-13.5W | PG-13.5B | PG13.5 | 6-12 | 20.4 | 20.4-20.7 | 9 | 27/24 | |
| PG-16W | PG-16B | PG16 | 10-14 | 22.5 | 22.5-22.8 | 10 | 30/27 | |
| PG-19W | PG-19B | PG19 | 12-15 | 24.1 | 24.1-24.5 | 10 | 30/27 | |
| PG-21W | PG-21B | PG21 | 13-18 | 28.3 | 28.3-28.7 | 10 | 36/33 | |
| PG-25W | PG-25B | PG25 | 16-21 | 30.1 | 30.1-30.3 | 11 | 37/36 | |
| PG-29W | PG-29B | PG29 | 18-25 | 37.0 | 37.0-37.4 | 12 | 46/42 | |
| PG-36W | PG-36B | PG-36 | 22-32 | 47.0 | 47.0-47.4 | 14 | 59/54 | |
| PG-42W | PG-42B | PG42 | 32-38 | 54.0 | 54.0-54.4 | 14 | 64/61 | 20PCS |
| PG-48W | PG-48B | PG-48 | 37-44 | 59.3 | 59.3-59.7 | 14 | 69/65 | |
| PG-63W | PG-63B | PG63 | 42-50 | 59.3 | 70.3-70.7 | 27 | 75/72 | |
|
Long thread
|
||||||||
| PG-7LW | PG-7LB | PG7 | 3-6.5 | 12.5 | 12.5-12.8 | 15 | 18/16 | 100PCS |
| PG-9LW | PG-9LB | PG9 | 4-8 | 15.2 | 15.2-15.8 | 15 | 22/19 | |
| PG-11LW | PG-11LB | PG11 | 5-10 | 18.6 | 18.6-18.9 | 15 | 24/22 | |
| PG-13.5LW | PG-13.5LB | PG13.5 | 6-12 | 20.4 | 20.4-20.7 | 15 | 27/24 | |
| PG-16LW | PG-16LB | PG16 | 10-14 | 22.5 | 22.5-22.8 | 15 | 30/27 | |
| PG-21LW | PG-21LB | PG21 | 13-18 | 28.3 | 28.3-28.7 | 15 | 36/33 | |
| PG-29LW | PG-29LB | PG29 | 18-25 | 37.0 | 37.0-37.4 | 18 | 46/42 | |
| PG-36LW | PG-36LB | PG-36 | 22-32 | 47.0 | 47.0-47.4 | 18 | 59/54 | 20PCS |
| PG-42LW | PG-42LB | PG42 | 32-38 | 54.0 | 54.0-54.4 | 18 | 64/61 | |
| PG-48LW | PG-48LB | PG-48 | 37-44 | 59.3 | 59.3-59.7 | 18 | 69/65 | |
加厚型夹紧圈尺寸参照表
|
Item No.
|
PG7
|
PG9
|
PG11
|
PG13.5
|
PG16
|
PG19
|
PG21
|
PG25
|
PG29
|
PG36
|
PG42
|
PG48
|
|
CableRange
￠ |
2-5
|
2-6
|
3-7
|
5-9
|
7-12
|
10-12
|
9-16
|
13-18
|
13-20
|
20-26
|
25-31
|
29-35
|
