RCCN PAH High Temperature Polyethylene Corrugated Tubing

 RCCN  PAH High Temperature Polyethylene Corrugated Tubing
RCCN  PAH High Temperature Polyethylene Corrugated Tubing

RCCN  PAH High Temperature Polyethylene Corrugated Tubing

Material:PA or PP。
Work temperature:-30℃ to 150℃
Color:black,and other colors come with MOQ
Certificates: CE, ROHS,REACH.
Characheristics:good luster of exterior,stronger
machinism loading, perfect flexible
Functions:insulated,protect cables and wires
Loading ability:uneasy to change shape,reshape
                       speedly without hurt body
Where to use:Equipment,machines,electricity sets,
                     and so on
How to use:insert cables or wires to RCCN flexible
                 conduit

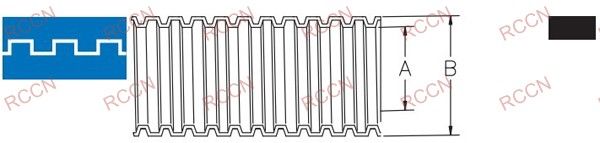

Item No .



Sizes





I.D.

A



O.D.

B



Packing

M

PA High temperature
resistant black
PA High temperature
resistant black split
PP High temperature
resistant black
PP High temperature
resistant black split
BG-07NBH BGR-07NBH BG-07PPBH BGR-07PPBH 1/4'' 6.5 10.0 100M
BG-10NBH BGR-10NBH BG-10PPBH BGR-10PPBH 5/16'' 10.0 13.0 100M
BG-12NBH BGR-12NBH BG-12PPBH BGR-12PPBH - 12.0 15.8 100M
BG-15NBH BGR-15NBH BG-15PPBH BGR-15PPBH 3/8'' 14.3 18.5 100M
BG-17NBH BGR-17NBH BG-17PPBH BGR-17PPBH 1/2'' 17.0 21.2 100M
BG-23NBH BGR-23NBH BG-23PPBH BGR-23PPBH 3/4'' 23.0 28.5 50M
BG-29NBH BGR-29NBH BG-29PPBH BGR-29PPBH 1'' 29.0 34.5 50M
BG-36NBH BGR-36NBH BG-36PPBH BGR-36PPBH 1 1/4'' 36.0 42.5 50M
BG-48NBH BGR-48NBH BG-48PPBH BGR-48PPBH 2'' 48.0 54.5 25M





RCCN  PAH High Temperature Polyethylene Corrugated Tubing
