RCCN PEV0 Polyethylene Corrugated Tubing
 |
| Material:PE (Polyethylene) Work Temperature:-30℃ to100℃,110℃ in short time Color:black,other color are available,come with MOQ Certificates: CE Inflaming retarding rate:V-0 Characheristics:good luster of exterior,stronger machinism loading, perfect flexible Functions:insulated,protect cables and wires Loading ability:uneasy to change shape,reshape speedly without hurt body Where to use:Equipment,machines,electricity sets, and so on How to use:insert cables or wires to RCCN flexible conduit Remarks:the items with * are available in stock. special packing length come with MOQ work temperature tested according to RCCN factory test machines |
|

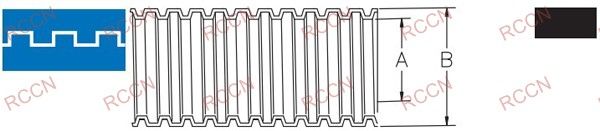

Item No . |
Sizes |
|
|
|
| BG-07BV0 | 1/4'' | 6.5 | 10.0 | 100M |
| BG-10BV0 | 5/16'' | 10.0 | 13.0 | 100M |
| BG-12BV0 | - | 12.0 | 15.8 | 100M |
| BG-15BV0 | 3/8'' | 14.3 | 18.5 | 100M |
| BG-17BV0 | 1/2'' | 17.0 | 21.2 | 100M |
| BG-23BV0 | 3/4'' | 23.0 | 28.5 | 50M |
| BG-29BV0 | 1'' | 29.0 | 34.5 | 50M |
| BG-36BV0 | 1 1/4'' | 36.0 | 42.5 | 50M |
| BG-48BV0 | 2'' | 48.0 | 54.5 | 25M |
| ROHS Model： | ||||
| BG-07BV0/ROHS | 1/4'' | 6.5 | 10.0 | 100M |
| BG-10BV0/ROHS | 5/16'' | 10.0 | 13.0 | 100M |
| BG-12BV0/ROHS | - | 12.0 | 15.8 | 100M |
| BG-15BV0/ROHS | 3/8'' | 14.3 | 18.5 | 100M |
| BG-17BV0/ROHS | 1/2'' | 17.0 | 21.2 | 100M |
| BG-23BV0/ROHS | 3/4'' | 23.0 | 28.5 | 50M |
| BG-29BV0/ROHS | 1'' | 29.0 | 34.5 | 50M |
| BG-36BV0/ROHS | 1 1/4'' | 36.0 | 42.5 | 50M |
| BG-48BV0/ROHS | 2'' | 48.0 | 54.5 | 25M |
