RCCN PGAL Brass Cable Gland
 |

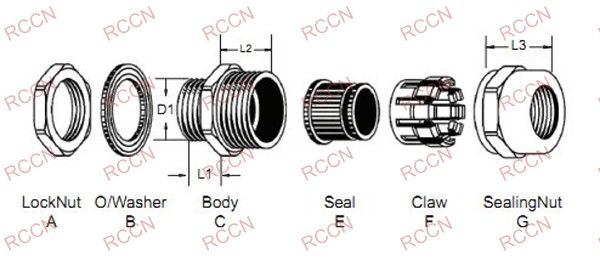

| Thread:DIN PG，G/PF，NPT Material :A.C.F are made of copper wi th nickel ,B.E are made of NBR Cert i f icates:CE,EX Operate temperature:-50°C to 250°C Protect ion: IP68。 Product characterst ics:Special design of part D and E,used wi th part F, can save your t ime, large spread of cable seal ing,good re-tensi le,waterproof ,ashproof ,re-sal ty, wi thstand impregnant l ike acid,alkal i ,alcohol ,oi l ,grease |
|
|
Thread |
Cable |
Thread |
Panel |
Thread |
Spanner |
Std.Pkg |
|
PG Germany thread
|
100PCS | ||||||
| PG7A-6L | PG-7 | 3-6 | 12.5 | 12.5-12.8 | 8 | 16 | |
| PG7A-8L | PG-7 | 4-8 | 12.5 | 12.5-12.8 | 8 | 16 | |
| PG9A-6L | PG-9 | 3-6 | 15.2 | 15.2-15.8 | 9 | 16 | |
| PG9A-8L | PG-9 | 4-8 | 15.2 | 15.2-15.8 | 9 | 16 | |
| PG11A-8L | PG-11 | 4-8 | 18.6 | 18.6-18.9 | 10 | 20 | |
| PG11A-10L | PG-11 | 6-10 | 18.6 | 18.6-18.9 | 10 | 20 | |
| PG13.5A-8L | PG-13.5 | 4-8 | 20.4 | 20.4-20.7 | 10 | 22 | |
| PG13.5A-10L | PG-13.5 | 6-10 | 20.4 | 20.4-20.7 | 10 | 22 | |
| PG16A-10L | PG-16 | 6-10 | 22.5 | 22.5-22.8 | 11 | 24 | |
| PG16A-14L | PG-16 | 10-14 | 22.5 | 22.5-22.8 | 11 | 24 | |
| PG21A-14L | PG-21 | 10-14 | 28.3 | 28.3-28.7 | 13 | 30 | 50PCS |
| PG21A-18L | PG-21 | 13-18 | 28.3 | 28.3-28.7 | 13 | 30 | |
| PG29A-18L | PG-29 | 13-18 | 37.0 | 37.0-37.4 | 13 | 42 | |
| PG29A-25L | PG-29 | 18-25 | 37.0 | 37.0-37.4 | 13 | 42 | |
| PG36A-25L | PG-36 | 18-25 | 47.0 | 47.0-47.4 | 15 | 52 | 10PCS |
| PG36A-32L | PG-36 | 25-32 | 47.0 | 47.0-47.4 | 15 | 52 | |
| PG42A-40L | PG-42 | 30-40 | 54.0 | 54.0-54.4 | 18 | 60 | |
| PG48A-54L | PG-42 | 44-54 | 59.3 | 59.3-59.7 | 18 | 64 | |
|
G Tube thread
|
100PCS | ||||||
| G1/4A-6L | G1/4'' | 3-6 | 13.2 | 13.2-13.4 | 8 | 16 | |
| G3/8A-8L | G3/8'' | 4-8 | 16.5 | 16.5-17.1 | 9 | 18 | |
| G1/2A-10L | G1/2'' | 6-10 | 21.3 | 21.0-21.3 | 11 | 22 | |
| G3/4A-18L | G3/4'' | 13-16 | 26.6 | 26.5-26.6 | 13 | 30 | 20PCS |
| G1A-25L | G1'' | 18-25 | 33.4 | 33.2-33.4 | 13 | 36 | |
| G1-1/4A-32L | G1 1/4'' | 25-32 | 42.1 | 41.9-42.1 | 15 | 48 | 5PCS |
| G1-1/2A-40L | G1 1/2'' | 30-40 | 47.8 | 47.8-48.0 | 18 | 52 | |
| G2A-54L | G2'' | 44-54 | 59.6 | 59.6-60.1 | 18 | 64 | |
|
NPT America thread
|
100PCS | ||||||
| NPT3/8A-6L | NPT3/8'' | 4-8 | 16.5 | 16.5-17.1 | 8 | 18 | |
| NPT1/2A-10L | NPT1/2'' | 6-10 | 21.3 | 21.0-21.3 | 10 | 22 | |
| NPT3/4A-18L | NPT3/4'' | 13-18 | 26.6 | 26.5-26.6 | 13 | 30 | 20PCS |
| NPT1A-25L | NPT1'' | 18-25 | 33.4 | 33.2-33.4 | 13 | 36 | |
| NPT1-1/4A-32L | NPT1 1/4'' | 25-32 | 42.1 | 41.9-42.1 | 15 | 48 | 5PCS |
| NPT1-1/2A-40L | NPT1 1/2'' | 30-40 | 47.8 | 47.8-48.0 | 18 | 52 | |
| NPT2A-54L | NPT2'' | 44-54 | 59.6 | 59.6-60.1 | 18 | 64 | |
