RCCN>>Product>>Cable Gland>> RCCN A-EMV Type Brass Cable Gland

RCCN A-EMV Type Brass Cable Gland

Thread:Metric/PG/NPT/G(PF)
Material:Brass,nickel plated
Claw:PA Seal/Oring:silicon rubber
Certificates:CE,EX,ROHS
Tempe.range:-50°C to +150°C
Protection:IP68。

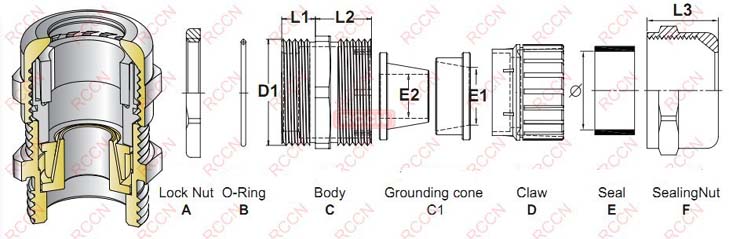

Item No	Cable Range	Thread Length L1	Screen Cone E1/E2	Joint Length L2+L3	Spanner size A&F	Std.Pkg. pcs
M
A-M10*1.5EMV-6.5	3-6.5	6	≤2.5	19	14/14	100PCS
A-M12*1.5EMV-6.5	3-6.5	6	≤2.5	19	14/14
A-M14*1.5EMV-6.5	3-6.5	6	≤2.5	19	18/14
A-M14*1.5EMV-8	4-8	7	≤3.5	19	18/18
A-M16*1.5EMV-8	4-8	7	≤3.5	20	18/18
A-M16*1.5EMV-10	5-10	7	≤3.5	22	20/20
A-M18*1.5EMV-10	5-10	7	≤3.5	22	20/20
A-M18*1.5EMV-12	6-12	7	≤3.5	23	22/22
A-M20*1.5EMV-12	6-12	8	≤4.5	23	22/22
A-M20*1.5EMV-14	10-14	8	≤4.5	23	24/24
A-M22*1.5EMV-12	6-12	8	≤4.5	23	24/22
A-M22*1.5EMV-14	10-14	8	≤4.5	23	24/24
A-M24*1.5EMV-14	10-14	8	≤4.5	23	28/24	50PCS
A-M25*1.5EMV-14	10-14	9	≤4.5	23	28/24
A-M25*1.5EMV-17	11-17	9	≤4.5	23	28/28
A-M25*1.5EMV-18	13-18	9	≤4.5	23	30/30
A-M27*1.5EMV-17	11-17	9	≤4.5	23	30/28
A-M27*2.0EMV-17	11-17	9	≤4.5	23	30/28
A-M27*1.5EMV-18	13-18	9	≤4.5	23	30/30
A-M27*2.0EMV-18	13-18	9	≤5.5	23	30/30
A-M30*2.0EMV-18	13-18	11	≤5.5	32	36/30
A-M30*2.0EMV-21	15-21	11	≤5.5	32	36/36
A-M30*2.0EMV-25	18-25	11	≤5.5	32	40/40
A-M32*1.5EMV-18	13-18	11	≤5.5	32	34/30
A-M32*1.5EMV-21	15-21	11	≤5.5	32	36/36
A-M32*1.5EMV-25	18-25	11	≤5.5	32	40/40
A-M33*2.0EMV-18	13-18	11	≤5.5	32	34/30
A-M33*2.0EMV-21	18-25	11	≤5.5	32	36/36
A-M33*2.0EMV-25	15-21	11	≤5.5	32	40/40
A-M36*2.0EMV-25	18-21	11	≤5.5	32	40/40	5PCS
A-M36*2.0EMV-28	19-28	11	≤5.5	32	44/44
A-M40*1.5EMV-25	18-25	11	≤5.5	32	44/40
A-M40*1.5EMV-28	19-28	11	≤5.5	32	44/44
A-M40*1.5EMV-32	22-32	11	≤5.5	32	50/50
A-M42*2.0EMV-32	22-32	11	≤5.5	32	50/50
A-M48*2.0EMV-32	22-32	11	≤5.5	32	50/50
A-M48*2.0EMV-38	30-38	11	≤5.5	38	58/58
A-M50*1.5EMV-32	22-32	11	≤5.5	38	54/50
A-M50*1.5EMV-38	30-38	11	≤5.5	38	58/58
A-M54*2.0EMV-38	30-38	11	≤5.5	38	58/58
A-M56*2.0EMV-38	330-38	11	≤5.5	38	58/58
A-M60*2.0EMV-44	34-44	14	≤8.5	38	64/64
A-M63*1.5EMV-44	34-44	14	≤8.5	38	68/64
A-M64*2.0EMV-44	34-44	14	≤8.5	45	68/64
A-M72*2.0EMV-55	42-52	15	≤9.5	45	81/81	1PCS
A-M75*1.5EMV-55	42-52	15	≤9.5	50	81/81
A-M80*2.0EMV-60	50-60	20	≤13.5	50	86/86
A-M88*2.0EMV-70	60-70	20	≤13.5	50	96/96
A-M100*2.0EMV-80	70-80	20	≤13.5	50	110
A-M110-2.0-90	80-90	20	≤13.5	50	125
A-M125*2.0EMV-100	90-100	20	≤13.5	50	135
PG
A-PG7EMV-6.5	3-6.5	6	≤2.5	19	14/14	100PCS
A-PG9EMV-8	4-8	7	≤3.5	20	18/18
A-PG9EMV-10	5-10	7	≤3.5	22	20/20
A-PG11EMV-10	5-10	7	≤3.5	23	20/20
A-PG11EMV-12	6-12	7	≤3.5	23	22/22
A-PG13.5EMV-12	6-12	8	≤4.5	23	22/22
A-PG13.5EMV-14	10-14	8	≤4.5	23	24/24
A-PG16EMV-14	10-14	9	≤4.5	23	24/24
A-PG16EMV-17	11-17	9	≤4.5	23	28/28	50PCS
A-PG21EMV-18	13-18	9	≤5.5	23	30/30
A-PG21EMV-21	15-21	11	≤5.5	32	36/36
A-PG29EMV-25	18-25	11	≤5.5	32	40/40	5PCS
A-PG29EMV-28	19-28	11	≤5.5	32	44/44
A-PG36EMV-32	22-32	11	≤5.5	32	50/50
A-PG36EMV-38	30-38	11	≤5.5	32	58/58
A-PG42EMV-38	30-38	11	≤5.5	38	58/58
A-PG48EMV-44	34-44	14	≤8.5	38	64/64
NPT
A-NPT1/4EMV-6.5	3-6.5	6	≤2.5	19	14/14	100PCS
A-NPT3/8EMV-8	4-8	7	≤3.5	20	18/18
A-NPT3/8EMV-10	5-10	7	≤3.5	22	20/20
A-NPT1/2EMV-12	6-12	8	≤4.5	23	22/22
A-NPT1/2EMV-14	10-14	8	≤4.5	23	24/24
A-NPT3/4EMV-14	10-14	9	≤4.5	23	28/24	50PCS
A-NPT3/4EMV-17	11-17	9	≤4.5	23	30/28
A-NPT3/4EMV-18	13-18	9	≤4.5	23	30/30
A-NPT1EMV-18	13-18	11	≤5.5	32	36/30
A-NPT1EMV-21	15-21	11	≤5.5	32	36/36
A-NPT1EMV-25	18-25	11	≤5.5	32	40/40
A-NPT1-1/4EMV-25	18-25	11	≤5.5	32	44/40	5PCS
A-NPT1-1/4EMV-28	19-28	11	≤5.5	32	44/44
A-NPT1-1/4EMV-32	22-32	11	≤5.5	32	50/50
A-NPT1-1/2EMV-32	22-32	11	≤5.5	32	50/50
A-NPT1-1/2EMV-38	30-38	11	≤5.5	32	58/58
A-NPT2EMV-44	34-44	14	≤8.5	38	64/64
A-NPT2-1/2EMV-55	42-52	15	≤9.5	50	81/81	1PCS
A-NPT3EMV-70	60-70	20	≤13.5	50	96/96
A-NPT3-1/2EMV-80	70-80	20	≤13.5	50	110
G
A-G1/4EMV-6.5	3-6.5	6	≤2.5	19	14/14	100PCS
A-G3/8EMV-8	4-8	7	≤3.5	20	18/18
A-G3/8EMV-10	5-10	7	≤3.5	22	18/18
A-G1/2EMV-12	6-12	8	≤4.5	23	22/22
A-G1/2EMV-14	10-14	8	≤4.5	23	24/24
A-G3/4EMV-14	10-14	9	≤4.5	23	28/24	50PCS
A-G3/4EMV-17	11-17	9	≤4.5	23	30/28
A-G3/4EMV-18	13-18	9	≤4.5	23	30/30
A-G1EMV-18	13-18	11	≤5.5	32	36/30
A-G1EMV-21	15-21	11	≤5.5	32	36/36
A-G1EMV-25	18-25	11	≤5.5	32	40/40
A-G1-1/4EMV-25	18-25	11	≤5.5	32	44/40	5PCS
A-G1-1/4EMV-28	19-28	11	≤5.5	32	44/44
A-G1-1/4EMV-32	22-32	11	≤5.5	32	50/50
A-G1-1/2EMV-32	22-32	11	≤5.5	32	50/50
A-G1-1/2EMV-38	30-38	11	≤5.5	32	58/58
A-G2EMV-44	34-44	14	≤8.5	38	64/64
A-G2-1/2EMV-55	42-52	15	≤9.5	50	81/81	1PCS
A-G3EMV-70	60-70	20	≤13.5	50	96/96
A-G3-1/2EMV-80	70-80	20	≤13.5	50	110
