RCCN A-H Type Brass Cable Gland

RCCN A-H Type Brass Cable Gland


RCCN A-H Type Brass Cable Gland


RCCN A-H Type Brass Cable Gland

Thread:Metric/PG/NPT/G(PF)
Material:Brass,nickel plated
Claw:PA   Seal/Oring:silicon rubber
Certificates:CE,EX,ROHS
Tempe.range:-50°C to +150°C
Protection:IP68。

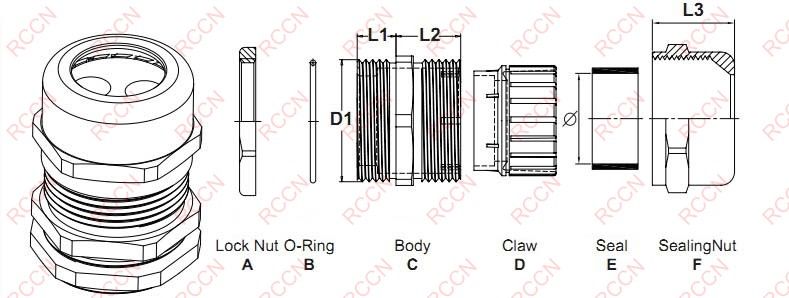

型号 Item No

Cable
Range


 Cable
Range


Thread
Length
L1

+Nut Max
platethick

Joint
Length
L2+L3

Spanner
size
A&F
M
A-M12×1.5-H2-2
2×2
0.5-2
6
 ≤2.5
19
 14/14
A-M12×1.5-H3-2
3×2
0.5-2
6
 ≤2.5
19
 14/14
A-M12×1.5-H4-1
4×1
0.3-1
6
 ≤2.5
19
 14/14
A-M16×1.5-H2-3
2×3
1-3
7
 ≤3.5
20
 18/18
A-M16×1.5-H3-3
3×3
1-3
7
 ≤3.5
20
 18/18
A-M16×1.5-H4-2
4×2
1-2
7
 ≤3.5
20
 18/18
A-M16×1.5-H5-1
5×1
0.3-1
7
 ≤3.5
20
 18/18
A-M20×1.5-H2-4
2*4
2-4
8
 ≤4.5
23
 22/22
A-M20×1.5-H3-4
3*4
2-4
8
 ≤4.5
23
 22/22
A-M20×1.5-H4-3
4*3
1-3
8
 ≤4.5
23
 22/22
A-M20×1.5-H5-2
5×2
0.5-2
8
 ≤4.5
23
 22/22
A-M20×1.5-H6-1
6×1
0.3-1
8
 ≤4.5
23
 22/22
A-M25×1.5-H2-5
2×5
3-5
9
 ≤4.5
23
 28/24
A-M25×1.5-H3-5
3×5
3-5
9
 ≤4.5
23
 8-24/24
A-M25×1.5-H4-4
4×4
2-4
9
 ≤4.5
23
 28/24
A-M25×1.5-H5-3
5×3
1-3
9
 ≤4.5
23
 28/24
A-M25×1.5-H6-2
6×2
0.5-2
9
 ≤4.5
23
 28/24
A-M32×1.5-H2-7
2×7
4-7
9
 ≤4.5
23
 4-30/30
A-M32×1.5-H3-6
3×6
3-6
9
 ≤4.5
23
 4-30/30
A-M32×1.5-H4-6
4×6
3-6
9
 ≤4.5
23
 4-30/30
A-M32×1.5-H5-4
5×4
2-4
9
 ≤4.5
23
 4-30/30
A-M32×1.5-H6-3
6×3
1-3
9
 ≤4.5
23
 4-30/30
A-M32×1.5-H7-2
7×2
0.5-2
9
 ≤4.5
23
 4-30/30
A-M40×1.5-H2-8
2×8
5-8
11
 ≤5.5
32
 4-40/40
A-M40×1.5-H3-8
3×8
5-8
11
 ≤5.5
32
 4-40/40
A-M40×1.5-H4-8
4×8
5-8
11
 ≤5.5
32
 4-40/40
A-M40×1.5-H5-6
5×6
3-6
11
 ≤5.5
32
 4-40/40
A-M40×1.5-H6-5
6×5
3-5
11
 ≤5.5
32
 4-40/40
A-M40×1.5-H7-5
7×5
3-5
11
 ≤5.5
32
 4-40/40
A-M50×1.5-H2-12
×12
22-32
11
 ≤5.5
32
 4-50/50
A-M50×1.5-H3-11
×11
22-32
11
 ≤5.5
32
 4-50/50
A-M50×1.5-H4-9
4×9
22-32
11
 ≤5.5
32
 4-50/50
A-M50×1.5-H5-8
5×8
22-32
11
 ≤5.5
32
 4-50/50
A-M50×1.5-H6-7
6×7
22-32
11
 ≤5.5
32
 4-50/50
A-M50×1.5-H7-7
7×7
22-32
11
 ≤5.5
32
 4-50/50
A-M20×1.5-W4H10
1
4×10
8
 ≤4.5
23
 22/22
A-M20×1.5-W3H11
1
3×11
8
 ≤4.5
23
 22/22
A-M25×1.5-W6H13
1
6×13
9
 ≤4.5
23
 28/24
A-M32×1.5-W5H17
1
5×17
9
 ≤4.5
23
 4-30/30
A-M40×1.5-W8H25
1
8×25
11
 ≤5.5
32
 4-40/40
A-M50×1.5-W6H30
1
6×30
11
 ≤5.5
32
 4-50/50
A-M63×1.5-W9H43
1
9×43
18
 ≤12.5
38
 8-64/64
PG
A-PG7-H2-2
2×2
0.5-2
6
 ≤2.5
19
 14/14
A-PG7-H3-2
3×2
0.5-2
6
 ≤2.5
19
 14/14
A-PG7-H4-1
4×1
0.3-1
6
 ≤2.5
19
 14/14
A-PG9-H2-3
2×3
1-3
7
 ≤3.5
20
 18/18
A-PG9-H3-3
3×3
1-3
7
 ≤3.5
20
 18/18
A-PG9-H4-2
4×2
1-2
7
 ≤3.5
20
 18/18
A-PG9-H5-1
5×1
0.3-1
7
 ≤3.5
20
 18/18
A-PG13.5-H2-4
2*4
2-4
8
 ≤4.5
23
 22/22
A-PG13.5-H3-4
3*4
2-4
8
 ≤4.5
23
 22/22
A-PG13.5-H4-3
4*3
1-3
8
 ≤4.5
23
 22/22
A-PG13.5-H5-2
5×2
0.5-2
8
 ≤4.5
23
 22/22
A-PG13.5-H6-1
6×1
0.3-1
8
 ≤4.5
23
 22/22
A-PG16-H2-5
2×5
3-5
9
 ≤4.5
23
 28/24
A-PG16-H3-5
3×5
3-5
9
 ≤4.5
23
 8-24/24
A-PG16-H4-4
4×4
2-4
9
 ≤4.5
23
 28/24
A-PG16-H5-3
5×3
1-3
9
 ≤4.5
23
 28/24
A-PG16-H6-2
6×2
0.5-2
9
 ≤4.5
23
 28/24
A-PG21-H2-7
2×7
4-7
9
 ≤4.5
23
 4-30/30
A-PG21-H3-6
3×6
3-6
9
 ≤4.5
23
 4-30/30
A-PG21-H4-6
4×6
3-6
9
 ≤4.5
23
 4-30/30
A-PG21-H5-4
5×4
2-4
9
 ≤4.5
23
 4-30/30
A-PG21-H6-3
6×3
1-3
9
 ≤4.5
23
 4-30/30
A-PG21-H7-2
7×2
0.5-2
9
 ≤4.5
23
 4-30/30
A-PG29-H2-8
2×8
5-8
11
 ≤5.5
32
 4-40/40
A-PG29-H3-8
3×8
5-8
11
 ≤5.5
32
 4-40/40
A-PG29-H4-8
4×8
5-8
11
 ≤5.5
32
 4-40/40
A-PG29-H5-6
5×6
3-6
11
 ≤5.5
32
 4-40/40
A-PG29-H6-5
6×5
3-5
11
 ≤5.5
32
 4-40/40
A-PG29-H7-5
7×5
3-5
11
 ≤5.5
32
 4-40/40
A-PG36-H2-12
×12
22-32
11
 ≤5.5
32
 4-50/50
A-PG36-H3-11
×11
22-32
11
 ≤5.5
32
 4-50/50
A-PG36-H4-9
4×9
22-32
11
 ≤5.5
32
 4-50/50
A-PG36-H5-8
5×8
22-32
11
 ≤5.5
32
 4-50/50
A-PG36-H6-7
6×7
22-32
11
 ≤5.5
32
 4-50/50
A-PG36-H7-7
7×7
22-32
11
 ≤5.5
32
 4-50/50
A-PG13.5-W4H10
1
4×10
8
 ≤4.5
23
 22/22
A-PG13.5-W3H11
1
3×11
8
 ≤4.5
23
 22/22
A-PG16-W6H13
1
6×13
9
 ≤4.5
23
 28/24
A-PG21-W5H17
1
5×17
9
 ≤4.5
23
 4-30/30
A-PG29-W8H25
1
8×25
11
 ≤5.5
32
 4-40/40
A-PG36-W6H30
1
6×30
11
 ≤5.5
32
 4-50/50
A-PG48-W9H43
1
9×43
18
 ≤12.5
38
 8-64/64
NPT
A-NPT1/4-H2-2
2×2
0.5-2
6
 ≤2.5
19
 14/14
A-NPT1/4-H3-2
3×2
0.5-2
6
 ≤2.5
19
 14/14
A-NPT1/4-H4-1
4×1
0.3-1
6
 ≤2.5
19
 14/14
A-NPT3/8-H2-3
2×3
1-3
7
 ≤3.5
20
 18/18
A-NPT3/8-H3-3
3×3
1-3
7
 ≤3.5
20
 18/18
A-NPT3/8-H4-2
4×2
1-2
7
 ≤3.5
20
 18/18
A-NPT3/8-H5-1
5×1
0.3-1
7
 ≤3.5
20
 18/18
A-NPT1/2-H2-4
2*4
2-4
8
 ≤4.5
23
 22/22
A-NPT1/2-H3-4
3*4
2-4
8
 ≤4.5
23
 22/22
A-NPT1/2-H4-3
4*3
1-3
8
 ≤4.5
23
 22/22
A-NPT1/2-H5-2
5×2
0.5-2
8
 ≤4.5
23
 22/22
A-NPT1/2-H6-1
6×1
0.3-1
8
 ≤4.5
23
 22/22
A-NPT3/4-H2-5
2×5
3-5
9
 ≤4.5
23
 28/24
A-NPT3/4-H3-5
3×5
3-5
9
 ≤4.5
23
 8-24/24
A-NPT3/4-H4-4
4×4
2-4
9
 ≤4.5
23
 28/24
A-NPT3/4-H5-3
5×3
1-3
9
 ≤4.5
23
 28/24
A-NPT3/4-H6-2
6×2
0.5-2
9
 ≤4.5
23
 28/24
A-NPT3/4-H2-7
2×7
4-7
9
 ≤4.5
23
 4-30/30
A-NPT3/4-H3-6
3×6
3-6
9
 ≤4.5
23
 4-30/30
A-NPT3/4-H4-6
4×6
3-6
9
 ≤4.5
23
 4-30/30
A-NPT3/4-H5-4
5×4
2-4
9
 ≤4.5
23
 4-30/30
A-NPT3/4-H6-3
6×3
1-3
9
 ≤4.5
23
 4-30/30
A-NPT3/4-H7-2
7×2
0.5-2
9
 ≤4.5
23
 4-30/30
A-NPT1-1/4-H2-8
2×8
5-8
11
 ≤5.5
32
 4-40/40
A-NPT1-1/4-H3-8
3×8
5-8
11
 ≤5.5
32
 4-40/40
A-NPT1-1/4-H4-8
4×8
5-8
11
 ≤5.5
32
 4-40/40
A-NPT1-1/4-H5-6
5×6
3-6
11
 ≤5.5
32
 4-40/40
A-NPT1-1/4-H6-5
6×5
3-5
11
 ≤5.5
32
 4-40/40
A-NPT1-1/4-H7-5
7×5
3-5
11
 ≤5.5
32
 4-40/40
A-NPT1-1/2-H2-12
×12
22-32
11
 ≤5.5
32
 4-50/50
A-NPT1-1/2-H3-11
×11
22-32
11
 ≤5.5
32
 4-50/50
A-NPT1-1/2-H4-9
4×9
22-32
11
 ≤5.5
32
 4-50/50
A-NPT1-1/2-H5-8
5×8
22-32
11
 ≤5.5
32
 4-50/50
A-NPT1-1/2-H6-7
6×7
22-32
11
 ≤5.5
32
 4-50/50
A-NPT1-1/2-H7-7
7×7
22-32
11
 ≤5.5
32
 4-50/50
A-NPT1/2-W4H10
1
4×10
8
 ≤4.5
23
 22/22
A-NPT1/2-W3H11
1
3×11
8
 ≤4.5
23
 22/22
A-NPT3/4-W6H13
1
6×13
9
 ≤4.5
23
 28/24
A-NPT3/4-W5H17
1
5×17
9
 ≤4.5
23
 4-30/30
A-NPT1-1/4-W8H25
1
8×25
11
 ≤5.5
32
 4-40/40
A-NPT1-1/2-W6H30
1
6×30
11
 ≤5.5
32
 4-50/50
A-NPT2-W9H43
1
9×43
18
 ≤12.5
38
 8-64/64
G
A-G1/4-H2-2
2×2
0.5-2
6
 ≤2.5
19
 14/14
A-G1/4-H3-2
3×2
0.5-2
6
 ≤2.5
19
 14/14
A-G1/4-H4-1
4×1
0.3-1
6
 ≤2.5
19
 14/14
A-G3/8-H2-3
2×3
1-3
7
 ≤3.5
20
 18/18
A-G3/8-H3-3
3×3
1-3
7
 ≤3.5
20
 18/18
A-G3/8-H4-2
4×2
1-2
7
 ≤3.5
20
 18/18
A-G3/8-H5-1
5×1
0.3-1
7
 ≤3.5
20
 18/18
A-G1/2-H2-4
2*4
2-4
8
 ≤4.5
23
 22/22
A-G1/2-H3-4
3*4
2-4
8
 ≤4.5
23
 22/22
A-G1/2-H4-3
4*3
1-3
8
 ≤4.5
23
 22/22
A-G1/2-H5-2
5×2
0.5-2
8
 ≤4.5
23
 22/22
A-G1/2-H6-1
6×1
0.3-1
8
 ≤4.5
23
 22/22
A-G3/4-H2-5
2×5
3-5
9
 ≤4.5
23
 28/24
A-G3/4-H3-5
3×5
3-5
9
 ≤4.5
23
 8-24/24
A-G3/4-H4-4
4×4
2-4
9
 ≤4.5
23
 28/24
A-G3/4-H5-3
5×3
1-3
9
 ≤4.5
23
 28/24
A-G3/4-H6-2
6×2
0.5-2
9
 ≤4.5
23
 28/24
A-G3/4-H2-7
2×7
4-7
9
 ≤4.5
23
 4-30/30
A-G3/4-H3-6
3×6
3-6
9
 ≤4.5
23
 4-30/30
A-G3/4-H4-6
4×6
3-6
9
 ≤4.5
23
 4-30/30
A-G3/4-H5-4
5×4
2-4
9
 ≤4.5
23
 4-30/30
A-G3/4-H6-3
6×3
1-3
9
 ≤4.5
23
 4-30/30
A-G3/4-H7-2
7×2
0.5-2
9
 ≤4.5
23
 4-30/30
A-G1-1/4-H2-8
2×8
5-8
11
 ≤5.5
32
 4-40/40
A-G1-1/4-H3-8
3×8
5-8
11
 ≤5.5
32
 4-40/40
A-G1-1/4-H4-8
4×8
5-8
11
 ≤5.5
32
 4-40/40
A-G1-1/4-H5-6
5×6
3-6
11
 ≤5.5
32
 4-40/40
A-G1-1/4-H6-5
6×5
3-5
11
 ≤5.5
32
 4-40/40
A-G1-1/4-H7-5
7×5
3-5
11
 ≤5.5
32
 4-40/40
A-G1-1/2-H2-12
×12
22-32
11
 ≤5.5
32
 4-50/50
A-G1-1/2-H3-11
×11
22-32
11
 ≤5.5
32
 4-50/50
A-G1-1/2-H4-9
4×9
22-32
11
 ≤5.5
32
 4-50/50
A-G1-1/2-H5-8
5×8
22-32
11
 ≤5.5
32
 4-50/50
A-G1-1/2-H6-7
6×7
22-32
11
 ≤5.5
32
 4-50/50
A-G1-1/2-H7-7
7×7
22-32
11
 ≤5.5
32
 4-50/50
A-G1/2-W4H10
1
4×10
8
 ≤4.5
23
 22/22
A-G1/2-W3H11
1
3×11
8
 ≤4.5
23
 22/22
A-G3/4-W6H13
1
6×13
9
 ≤4.5
23
 28/24
A-G3/4-W5H17
1
5×17
9
 ≤4.5
23
 4-30/30
A-G1-1/4-W8H25
1
8×25
11
 ≤5.5
32
 4-40/40
A-G1-1/2-W6H30
1
6×30
11
 ≤5.5
32
 4-50/50
A-G2-W9H43
1
9×43
18
 ≤12.5
38
 8-64/64





 RCCN A-H Type Brass Cable Gland

0
  • wiring duct
  • PVC Trunking
  • wire trunking
  • Slotted Trunking
