Thread:Metric/PG/NPT/G(PF) Material:Stainless steel  304                Claw:PA   Seal/Oring:silicon rubber Certificates:CE,EX,ROHS Tempe.range:-50°C to +150°C Protection:IP68。

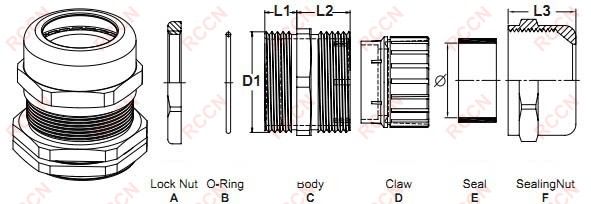

型号Item No.	适用电缆 Cable Range ￠	螺纹长度 Thread Length L1	配套螺母 上限板厚 +Nut Max platethick	接合长度 Joint Length L2+L3	板手 Spanner SW A/F	包装 Std.Pkg. pcs
公制螺纹 M
AS-M8×1.25-4.5	2-4.5	6	≦2.5	13	11/11	100PCS
AS-M12×1.5-6.5	3-6.5	6	≦2.5	19	14/14
AS-M14×1.5-6.5	3-6.5	6	≦2.5	19	18/14
AS-M14×1.5-8	4-8	7	≦3.5	19	18/18
AS-M16×1.5-8	4-8	7	≦3.5	20	18/18
AS-M16×1.5-10	5-10	7	≦3.5	22	20/20
AS-M18×1.5-10	5-10	7	≦3.5	22	20/20
AS-M18×1.5-12	6-12	7	≦3.5	23	22/22
AS-M20×1.5-12	6-12	8	≦4.5	23	22/22
AS-M20×1.5-14	10-14	8	≦4.5	23	24/24
AS-M22×1.5-12	6-12	8	≦4.5	23	24/22
AS-M22×1.5-14	10-14	8	≦4.5	23	24/24
AS-M24×1.5-14	10-14	8	≦4.5	23	28/24	50PCS
AS-M25×1.5-14	10-14	9	≦4.5	23	28/24
AS-M25×1.5-17	11-17	9	≦4.5	23	28/28
AS-M25×1.5-18	13-18	9	≦4.5	23	30/30
AS-M27×1.5-17	11-17	9	≦4.5	23	30/28
AS-M27×2.0-17	11-17	9	≦4.5	23	30/28
AS-M27×1.5-18	13-18	9	≦4.5	23	30/30
AS-M27×2.0-18	13-18	9	≦4.5	23	30/30
AS-M30×2.0-18	13-18	11	≦5.5	23	36/30
AS-M30×2.0-21	15-21	11	≦5.5	32	36/36
AS-M30×2.0-25	18-25	11	≦5.5	32	40/40
AS-M32×1.5-18	13-18	11	≦5.5	32	34/30
AS-M32×1.5-21	15-21	11	≦5.5	32	36/36
AS-M32×1.5-25	18-25	11	≦5.5	32	40/40
AS-M33×2.0-18	13-18	11	≦5.5	32	36/30
AS-M33×2.0-21	15-21	11	≦5.5	32	36/36
AS-M33×2.0-25	18-25	11	≦5.5	32	40/40
AS-M36×2.0-25	18-25	11	≦5.5	32	40/40	5PCS
AS-M36×2.0-28	19-28	11	≦5.5	32	44/44
AS-M40×1.5-25	18-25	11	≦5.5	32	44/40
AS-M40×1.5-28	19-28	11	≦5.5	32	44/44
AS-M40×1.5-32	22-32	11	≦5.5	32	50/50
AS-M42×2.0-32	22-32	11	≦5.5	32	50/50
AS-M48×2.0-32	22-32	11	≦5.5	32	50/50
AS-M48×2.0-38	30-38	11	≦5.5	32	58/58
AS-M50×1.5-32	22-32	11	≦5.5	38	54/50
AS-M50×1.5-38	30-38	11	≦5.5	38	58/58
AS-M54×2.0-38	30-38	11	≦5.5	38	58/58
AS-M56×2.0-38	30-38	11	≦5.5	38	58/58
AS-M60×2.0-44	34-44	14	≦8.5	38	64/64
AS-M63×1.5-44	34-44	14	≦8.5	38	68/64
AS-M64×2.0-44	34-44	14	≦8.5	45	68/64
AS-M72×2.0-55	42-52	15	≦9.5	45	80/80	1PCS
AS-M75×1.5-55	42-52	15	≦9.5	50	80/80
AS-M80×2.0-60	50-60	20	≦13.5	50	86/86
AS-M88×2.0-70	60-70	20	≦13.5	50	95/95
德制螺纹 PG
AS-PG7-6.5	3-6.5	6	≦2.5	19	14/14	100PCS
AS-PG9-8	4-8	7	≦3.5	20	18/18
AS-PG9-10	5-10	7	≦3.5	22	20/20
AS-PG11-10	5-10	7	≦3.5	22	20/20
AS-PG11-12	6-12	7	≦3.5	23	22/22
AS-PG13.5-12	6-12	8	≦4.5	23	22/22
AS-PG13.5-14	10-14	8	≦4.5	23	24/24
AS-PG16-14	10-14	8	≦4.5	23	24/24	50PCS
AS-PG16-17	11-17	9	≦4.5	23	28/28
AS-PG21-18	13-18	9	≦4.5	23	30/30
AS-PG21-21	15-21	11	≦5.5	32	36/36
AS-PG29-25	18-25	11	≦5.5	32	40/40	5PCS
AS-PG29-28	19-28	11	≦5.5	32	44/44
AS-PG36-32	22-32	11	≦5.5	32	50/50
AS-PG36-38	30-38	11	≦5.5	32	58/58
AS-PG42-38	30-38	11	≦5.5	38	58/58
AS-PG48-44	34-44	14	≦8.5	38	64/64
美制螺纹 NPT
AS-NPT1/4-6.5	3-6.5	6	≦2.5	19	14/14	100PCS
AS-NPT3/8-8	4-8	7	≦3.5	20	18/18
AS-NPT3/8-10	5-10	7	≦3.5	22	20/20
AS-NPT1/2-10	6-12	8	≦4.5	23	22/22
AS-NPT1/2-14	10-14	8	≦4.5	23	24/24
AS-NPT3/4-14	10-14	9	≦4.5	23	28/24	50PCS
AS-NPT3/4-17	11-17	9	≦4.5	23	30/28
AS-NPT3/4-18	13-18	9	≦4.5	23	30/30
AS-NPT1-18	13-18	11	≦5.5	32	36/30
AS-NPT1-21	15-21	11	≦5.5	32	36/36
AS-NPT1-25	18-25	11	≦5.5	32	40/40
AS-NPT1-1/4-25	18-25	11	≦5.5	32	44/40	25PCS
AS-NPT1-1/4-28	19-28	11	≦5.5	32	44/44
AS-NPT1-1/4-32	22-32	11	≦5.5	32	50/50
AS-NPT1-1/2-32	22-32	11	≦5.5	32	50/50
AS-NPT1-1/2-38	30-38	11	≦5.5	32	58/58
AS-NPT2-44	34-44	14	≦8.5	38	64/64
AS-NPT2-1/2-55	42-52	15	≦9.5	50	80/80	1PCS
AS-NPT3-70	60-70	20	≦13.5	50	95/95
英制螺纹 G
AS-G1/4-6.5	3-6.5	6	≦2.5	19	14/14	100PCS
AS-G3/8-8	4-8	7	≦3.5	20	18/18
AS-G3/8-10	5-10	7	≦3.5	22	20/20
AS-G1/2-10	6-12	8	≦4.5	23	22/22
AS-G1/2-14	10-14	8	≦4.5	23	24/24
AS-G3/4-14	10-14	9	≦4.5	23	28/24	50PCS
AS-G3/4-17	11-17	9	≦4.5	23	30/28
AS-G3/4-18	13-18	9	≦4.5	23	30/30
AS-G1-18	13-18	11	≦5.5	32	36/30
AS-G1-21	15-21	11	≦5.5	32	36/36
AS-G1-25	18-25	11	≦5.5	32	40/40
AS-G1-1/4-25	18-25	11	≦5.5	32	44/40	25PCS
AS-G1-1/4-28	19-28	11	≦5.5	32	44/44
AS-G1-1/4-32	22-32	11	≦5.5	32	50/50
AS-G1-1/2-32	22-32	11	≦5.5	32	50/50
AS-G1-1/2-38	30-38	11	≦5.5	32	58/58
AS-G2-44	34-44	14	≦8.5	38	64/64
AS-G2-1/2-55	42-52	15	≦9.5	50	80/80	1PCS
AS-G3-70	60-70	20	≦13.5	50	95/95
