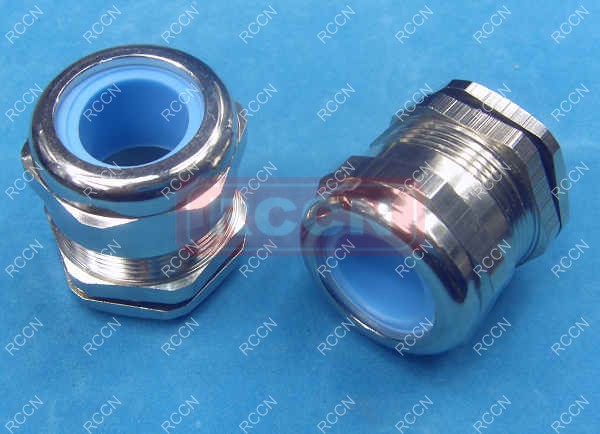

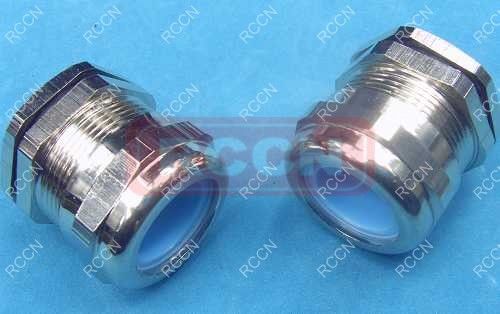

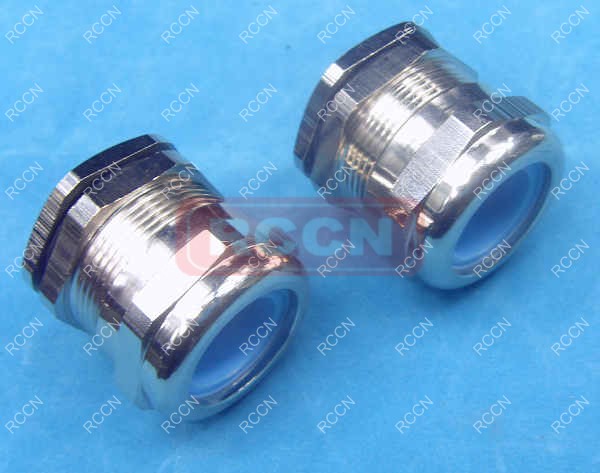

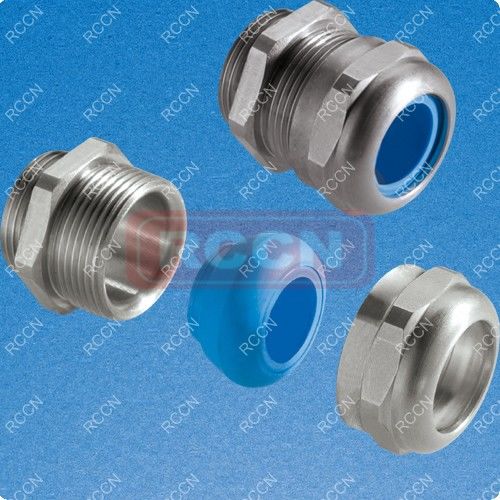

Thread:Metric/PG/NPT/G(PF) Material:Brass,nickel plated Seal/Oring:silicon rubber Certificates:CE,EX,ROHS Tempe.range:-60°C to +250°C Protection:IP68。



Item No.	Cable Range Φ	with inlet E1	without  inlet E2	Thread Length L1	+Nut Max platethick	Joint Length H	Spanner SW A/F	Std.Pkg. pcs
M
BL-M10×1.0-6	1.5-6.0	1.5-3	3-6	7	≤3.5	20	14	100PCS
BL-M12×1.5-8	2-8	2-5	5-8	7	≤3.5	121	18
BL-M16×1.5-11	4-11	4-7	7-11	7	≤3.5	25	20
BL-M18×1.5-11	4-11	4-7	7-11	7	≤3.5	25	22
BL-M20×1.5-14	5-14	5-9	9-14	8	≤4.5	29	24
BL-M22×1.5-14	5-14	5-9	9-14	8	≤4.5	29	26
BL-M24×1.5-20	11-20	11-16	16-20	9	≤4.5	30	30
BL-M25×1.5-20	11-20	11-16	16-20	9	≤4.5	30	30
BL-M27×1.5-20	11-20	11-16	16-20	9	≤4.5	30	30	50PCS
BL-M30×2.0-25	15-25	15-20	20-25	11	≤5.5	32	36
BL-M32×1.5-25	15-25	15-20	20-25	11	≤5.5	32	36
BL-M33×2.0-25	15-25	15-20	20-25	11	≤5.5	32	36
BL-M36×2.0-25	15-25	15-20	20-25	11	≤5.5	32	40	5PCS
BL-M40×1.5-32	20-32	20-26	26-32	11	≤5.5	35	44
BL-M50×1.5-42	31-42	31-35	35-42	11	≤5.5	39	58
BL-M63×1.5-54	41-54	41-54	46-54	14	≤8.5	40	68
BL-M72×2.0-65	54-65	54-58	58-65	15	≤9.5	47	81	1PCS
BL-M75×1.5-65	54-65	54-58	58-65	15	≤9.5	47	81
BL-M85×1.5-77	65-77	65-70	70-77	15	≤9.5	49	96
BL-M90×1.5-77	65-77	65-70	70-77	15	≤9.5	49	96
BL-M100×1.5-89	77-89	77-81	81-89	20	≤13.5	50	110
BL-M110×1.5-101	89-101	89-94	94-101	20	≤13.5	59	125
BL-M120×1.5-113	101-113	101-106	106-113	20	≤13.5	59	125
BL-M125×1.5-113	101-113	101-106	106-113	20	≤13.5	59	135
BL-M130×1.5-125	113-125	113-118	118-125	20	≤13.5	59	135
PG
BL-PG7-8	2-8	2-5	5-8	7	≤3.5	121	18	100PCS
BL-PG9-11	4-11	4-7	7-11	7	≤3.5	25	20
BL-PG11-11	4-11	4-7	7-11	7	≤3.5	25	22
BL-PG13.5-14	5-14	5-9	9-14	8	≤4.5	29	24
BL-PG16-14	5-14	5-9	9-14	8	≤4.5	29	26
BL-PG21-20	11-20	11-16	16-20	9	≤4.5	30	30
BL-PG29-32	20-32	20-26	26-32	11	≤5.5	35	44	50PCS
BL-PG36-42	31-42	31-35	35-42	11	≤5.5	39	58
BL-PG42-42	31-42	31-35	35-42	11	≤5.5	39	58
BL-PG48-54	41-54	41-54	46-54	14	≤8.5	40	68
NPT
BL-NPT1/4-8	2-8	2-5	5-8	7	≤3.5	21	18	100PCS
BL-NPT3/8-11	4-11	4-7	7-11	7	≤3.5	25	22
BL-NPT1/2-14	5-14	5-9	9-14	8	≤4.5	29	24
BL-NPT3/4-20	11-20	11-16	16-20	9	≤4.5	30	30
BL-NPT1-25	15-25	15-20	20-25	11	≤5.5	32	36	50PCS
BL-NPT1-1/4-32	20-32	20-26	26-32	11	≤5.5	35	44	5PCS
BL-NPT1-1/2-42	31-42	31-35	35-42	11	≤5.5	39	58
BL-NPT2-54	41-54	41-54	46-54	14	≤8.5	40	68
BL-NPT2-1/2-65	54-65	54-58	58-65	15	≤9.5	47	81	1PCS
BL-NPT3-77	65-77	65-70	70-77	15	≤9.5	49	96
BL-NPT3-1/2-89	77-89	77-81	81-89	20	≤13.5	50	110
BL-NPT4-101	89-101	89-94	94-101	20	≤13.5	59	125
G
BL-NPT1/4-8	2-8	2-5	5-8	7	≤3.5	21	18	100PCS
BL-G3/8-11	4-11	4-7	7-11	7	≤3.5	25	22
BL-G1/2-14	5-14	5-9	9-14	8	≤4.5	29	24
BL-G3/4-20	11-20	11-16	16-20	9	≤4.5	30	30
BL-G1-25	15-25	15-20	20-25	11	≤5.5	32	36	50PCS
BL-G1-1/4-32	20-32	20-26	26-32	11	≤5.5	35	44	5PCS
BL-G1-1/2-42	31-42	31-35	35-42	11	≤5.5	39	58
BL-G2-54	41-54	41-54	46-54	14	≤8.5	40	68
BL-G2-1/2-65	54-65	54-58	58-65	15	≤9.5	47	81	1PCS
BL-G3-77	65-77	65-70	70-77	15	≤9.5	49	96
BL-G3-1/2-89	77-89	77-81	81-89	20	≤13.5	50	110
BL-G4-101	89-101	89-94	94-101	20	≤13.5	59	125
