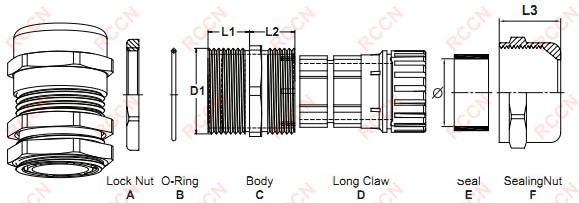

RCCN BS-Type Stainless steel Cable Gland
 |
|
Thread:Metric/PG/NPT/G(PF) |
| Item No. |
Cable |
Thread Length L1 |
+Nut Max platethick |
Joint Length L2+L3 |
Spanner SW A/F |
Std.Pkg. pcs |
|
M
|
||||||
| BS-M12×1.5-6.5 | 3-6.5 | 6 | ≦2.5 | 19 | 14/14 | 100PCS |
| BS-M16×1.5-8 | 4-8 | 7 | ≦3.5 | 20 | 18/18 | |
| BS-M18×1.5-10 | 5-10 | 7 | ≦3.5 | 22 | 20/20 | |
| BS-M20×1.5-12 | 6-12 | 8 | ≦4.5 | 23 | 22/22 | |
| BS-M22×1.5-14 | 10-14 | 8 | ≦4.5 | 23 | 24/24 | |
| BS-M24×1.5-14 | 10-14 | 8 | ≦4.5 | 23 | 28/24 | |
| BS-M25×1.5-14 | 10-14 | 9 | ≦4.5 | 23 | 28/24 | |
| BS-M25×1.5-17 | 11-17 | 9 | ≦4.5 | 23 | 28/28 | |
| BS-M27×1.5-17 | 11-17 | 9 | ≦4.5 | 23 | 30/28 | 50PCS |
| BS-M27×1.5-17 | 11-17 | 9 | ≦4.5 | 23 | 30/28 | |
| BS-M30×2.0-18 | 13-18 | 11 | ≦5.5 | 23 | 36/30 | |
| BS-M32×1.5-18 | 13-18 | 11 | ≦5.5 | 32 | 34/30 | |
| BS-M32×1.5-21 | 15-21 | 11 | ≦5.5 | 32 | 36/36 | |
| BS-M33×2.0-18 | 13-18 | 11 | ≦5.5 | 32 | 36/30 | |
| BS-M33×2.0-21 | 15-21 | 11 | ≦5.5 | 32 | 36/36 | |
| BS-M36×2.0-25 | 18-25 | 11 | ≦5.5 | 32 | 40/40 | |
| BS-M40×1.5-25 | 18-25 | 11 | ≦5.5 | 32 | 44/40 | 5PCS |
| BS-M40×1.5-28 | 19-28 | 11 | ≦5.5 | 32 | 44/44 | |
| BS-M48×2.0-32 | 22-32 | 11 | ≦5.5 | 32 | 50/50 | |
| BS-M50×1.5-35 | 22-32 | 11 | ≦5.5 | 38 | 54/50 | |
| BS-M54×2.0-38 | 30-38 | 11 | ≦5.5 | 38 | 58/58 | |
| BS-M56×2.0-38 | 30-38 | 11 | ≦5.5 | 38 | 58/58 | |
| BS-M60×2.0-44 | 34-44 | 14 | ≦8.5 | 38 | 64/64 | |
| BS-M63×1.5-44 | 34-44 | 14 | ≦8.5 | 38 | 68/64 | |
| BS-M64×2.0-44 | 34-44 | 14 | ≦8.5 | 45 | 68/64 | |
| BS-M72×2.0-55 | 42-52 | 15 | ≦9.5 | 45 | 80/80 | 1PCS |
| BS-M75×1.5-55 | 42-52 | 15 | ≦9.5 | 50 | 80/80 | |
| BS-M80×2.0-60 | 50-60 | 20 | ≦13.5 | 50 | 86/86 | |
| BS-M88×2.0-70 | 60-70 | 20 | ≦13.5 | 50 | 95/95 | |
|
PG
|
||||||
| BS-PG7-6.5 | 3-6.5 | 6 | ≦2.5 | 19 | 14/14 | 100PCS |
| BS-PG9-8 | 4-8 | 7 | ≦3.5 | 20 | 18/18 | |
| BS-PG11-10 | 5-10 | 7 | ≦3.5 | 22 | 20/20 | |
| BS-PG13.5-12 | 6-12 | 8 | ≦4.5 | 23 | 22/22 | |
| BS-PG16-14 | 10-14 | 8 | ≦4.5 | 23 | 24/24 | |
| BS-PG21-18 | 13-18 | 9 | ≦4.5 | 23 | 30/30 | 50PCS |
| BS-PG29-25 | 18-25 | 11 | ≦5.5 | 32 | 40/40 | |
| BS-PG36-32 | 22-32 | 11 | ≦5.5 | 32 | 50/50 | 25PCS |
| BS-PG42-38 | 30-38 | 11 | ≦5.5 | 38 | 58/58 | |
| BS-PG48-44 | 34-44 | 14 | ≦8.5 | 38 | 64/64 | |
|
NPT
|
||||||
| BS-NPT1/4-6.5 | 3-6.5 | 6 | ≦2.5 | 19 | 14/14 | 100PCS |
| BS-NPT3/8-8 | 4-8 | 7 | ≦3.5 | 20 | 18/18 | |
| BS-NPT1/2-12 | 6-12 | 8 | ≦4.5 | 23 | 22/22 | |
| BS-NPT3/4-14 | 10-14 | 9 | ≦4.5 | 23 | 28/24 | |
| BS-NPT3/4-17 | 11-17 | 9 | ≦4.5 | 23 | 30/28 | 50PCS |
| BS-NPT1-18 | 13-18 | 11 | ≦5.5 | 32 | 36/30 | |
| BS-NPT1-21 | 15-21 | 11 | ≦5.5 | 32 | 36/36 | |
| BS-NPT1-1/4-25 | 18-25 | 11 | ≦5.5 | 32 | 44/40 | 25PCS |
| BS-NPT1-1/4-28 | 19-28 | 11 | ≦5.5 | 32 | 44/44 | |
| BS-NPT1-1/2-32 | 22-32 | 11 | ≦5.5 | 32 | 50/50 | |
| BS-NPT2-44 | 34-44 | 14 | ≦8.5 | 38 | 64/64 | |
| BS-NPT2-1/2-55 | 42-52 | 15 | ≦9.5 | 50 | 80/80 | 1PCS |
| BS-NPT3-70 | 60-70 | 20 | ≦13.5 | 50 | 95/95 | |
|
G
|
||||||
| BS-G1/4-6.5 | 3-6.5 | 6 | ≦2.5 | 19 | 14/14 | 100PCS |
| BS-G3/8-8 | 4-8 | 7 | ≦3.5 | 20 | 18/18 | |
| BS-G1/2-12 | 6-12 | 8 | ≦4.5 | 23 | 22/22 | |
| BS-G3/4-14 | 10-14 | 9 | ≦4.5 | 23 | 28/24 | |
| BS-G3/4-17 | 11-17 | 9 | ≦4.5 | 23 | 30/28 | 50PCS |
| BS-G1-18 | 13-18 | 11 | ≦5.5 | 32 | 36/30 | |
| BS-G1-21 | 15-21 | 11 | ≦5.5 | 32 | 36/36 | |
| BS-G1-1/4-25 | 18-25 | 11 | ≦5.5 | 32 | 44/40 | 25PCS |
| BS-G1-1/4-28 | 19-28 | 11 | ≦5.5 | 32 | 44/44 | |
| BS-G1-1/2-32 | 22-32 | 11 | ≦5.5 | 32 | 50/50 | |
| BS-G2-44 | 34-44 | 14 | ≦8.5 | 38 | 64/64 | |
| BS-G2-1/2-55 | 42-52 | 15 | ≦9.5 | 50 | 80/80 | 1PCS |
| BS-G3-70 | 60-70 | 20 | ≦13.5 | 50 | 95/95 | |
