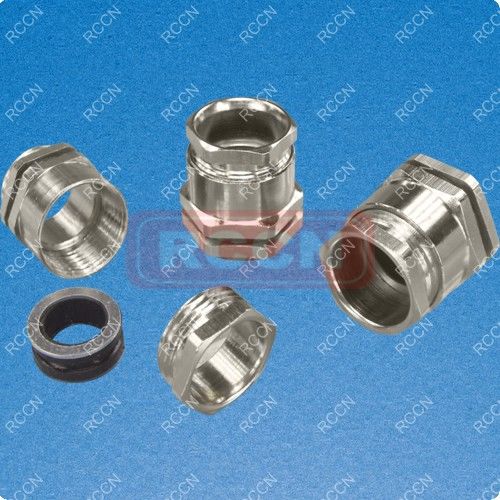

RCCN DIN Brass Cable Gland

RCCN DIN Brass Cable Gland


RCCN DIN Brass Cable Gland


RCCN DIN Brass Cable Gland

Material:brass coated nickel,seal ring made of rubber
Protect grade:up to IP66 using with O ring and claw, underthe fixed range
This items can be produced in round without hexagon adge,
part no. like DINR-M12X1.5-8



Item No. Thread
Length
L1
Inner
sealing
Φ
+Nut Max
platethick
Joint
Length
H
Spanner
SW
A/F
Std.Pkg.
pcs
M
DIN-M12×1.5-8 5 6-8 ≦2 15 14/14 100PCS
DIN-M16×1.5-10 6 8-10 ≦3 15 18/18
DIN-M18×1.5-12 6 10-12 ≦3 17 20/18
DIN-M20×1.5-14 7 12-14 ≦4 20 22/20
DIN-M22×1.5-16 9 14-16 ≦5 22 24/22
DIN-M25×1.5-19 10 17-19 ≦5 24 36/30 10PCS
DIN-M32×1.5-25 11 23-25 ≦5 26 36/30
DIN-M40×1.5-35 11 33-25 ≦5 30 44/40
DIN-M50×1.5-41 11 39-41 ≦5 34 54/50
DIN-M63×1.5-47 14 45-47 ≦9 37 68/64
PG
DIN-PG7-8 5 6-8 ≦2 15 14/14 100PCS
DIN-PG9-10 6 8-10 ≦3 15 18/18
DIN-PG11-12 6 10-12 ≦3 17 20/18
DIN-PG13.5-14 7 12-14 ≦4 20 22/20
DIN-PG16-16 9 14-16 ≦5 22 24/22
DIN-PG21-19 10 17-19 ≦5 24 36/30 10PCS
DIN-PG29-35 11 33-25 ≦5 30 44/40
DIN-PG36-41 11 39-41 ≦5 34 54/50
DIN-PG48-47 14 45-47 ≦9 37 68/64
NPT
DIN-NPT1/4-8 5 6-8 ≦2 15 14/14 100PCS
DIN-NPT3/8-10 6 8-10 ≦3 15 18/18
DIN-NPT1/2-14 7 12-14 ≦4 20 22/20
DIN-NPT3/4-19 10 17-19 ≦5 24 36/30 10PCS
DIN-NPT1-25 11 23-25 ≦5 26 36/30
DIN-NPT1-1/4-35 11 33-25 ≦5 30 44/40
DIN-NPT1-1/2-41 11 39-41 ≦5 34 54/50
DIN-NPT2-47 14 45-47 ≦9 37 68/64
G
DIN-G1/4-8 5 6-8 ≦2 15 14/14 100PCS
DIN-G3/8-10 6 8-10 ≦3 15 18/18
DIN-G1/2-14 7 12-14 ≦4 20 22/20
DIN-G3/4-19 10 17-19 ≦5 24 36/30 10PCS
DIN-G1-25 11 23-25 ≦5 26 36/30
DIN-G1-1/4-35 11 33-25 ≦5 30 44/40
DIN-G1-1/2-41 11 39-41 ≦5 34 54/50
DIN-G2-47 14 45-47 ≦9 37 68/64
