RCCN>>Product>>Cable Gland>> RCCN TNBGMetal Flexible Conduit Fittings

RCCN TNBGMetal Flexible Conduit Fittings

Thread:G,Metric, PG

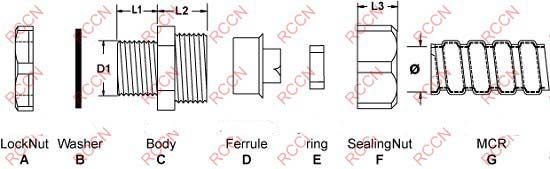

Material:A.C.F are made from zincic metal.B.E
are made of rubber NBR).D is made
of sheet iron .
Certificates:CE
Color:Argentine
Protect class:IP6
Work T.:-40°C to 100°C,120°C in a short time.
Products characteristics: 1.thickness added zincic metal,good looking
2.conmmon impregnant resistant,such as water,salty,alcohol,oil, grease and so on.
3.we can adjust the sizes according to your request.
Marks:The finished goods are including locknut and washer.

Item No.	Thread G/M/PG	MCR			Thread O.D. D1	Thread Length L1
Item No.	Thread G/M/PG	Corresponding item no	Metric ø	British	Thread O.D. D1	Thread Length L1
TNBG-M
TNBG-01M	M14*1.5	MCR-01	6	3/16"	M14*1.5	8
TNBG-02M	M14*1.5	MCR-02	8	5/16"	M14*1.5	8
TNBG-03M	M16*1.5	MCR-03	10	1/4	M16*1.5	8
TNBG-04M	M16*1.5	MCR-04	13	3/8"	M16*1.5	8
TNBG-05M	M20*1.5	MCR-05	16	1/2"	M20*1.5	11
TNBG-06M	M25*1.5	MCR-06	20	3/4"	M25*1.5	14
TNBG-08M	M32*1.5	MCR-08	25	1"	M32*1.5	15
TNBG-10M	M40*1.5	MCR-10	32	11/4"	M40*1.5	15
TNBG-12M	M50*1.5	MCR-12	38	1 1/2	M50*1.5	16
TNBG-16M	M63*1.5	MCR-16	51	2"	M63*1.5	18
TNBG-G
TNBG-01G	G1/4"	MCR-01	6	3/16"	13.2	8
TNBG-02G	G1/4"	MCR-02	8	5/16"	13.2	8
TNBG-03G	G3/8"	MCR-03	10	1/4"	16.5	8
TNBG-04G	G3/8"	MCR-04	13	3/8"	16.5	8
TNBG-05G	G1/2"	MCR-05	16	1/2"	21.3	11
TNBG-06G	G3/4"	MCR-06	20	3/4"	26.6	14
TNBG-08G	G1"	MCR-08	25	1"	33.4	15
TNBG-10G	G1 1/4"	MCR-10	32	11/4"	42.1	15
TNBG-12G	G1 1/2"	MCR-12	38	11/2"	47.8	16
TNBG-16G	G2"	MCR-16	51	2	59.6	18
TNBG-PG
TNBG-03P	PG9	MCR-03	10	1/4"	15.2	8
TNBG-04P	PG11	MCR-04	13	3/8"	18.6	9
TNBG-05P	PG13.5	MCR-05	16	1/2"	20.4	11
TNBG-06P	PG21	MCR-06	20	3/4"	28.3	14
TNBG-08P	PG29	MCR-08	25	1"	37.0	15
TNBG-10P	PG29	MCR-10	32	1 1/4"	37.0	15
TNBG-12P	PG36	MCR-12	38	11/2"	47.0	16
TNBG-16P	PG48	MCR-16	51	2"	59.3	18
TNBG-NPT
TNBG-01N	NPT1/4"	MCR-01	6	3/16"	13.2	8
TNBG-02N	NPT1/4"	MCR-02	8	5/16"	13.2	8
TNBG-03N	NPT3/8"	MCR-03	10	1/4"	16.5	8
TNBG-04N	NPT3/8"	MCR-04	13	3/8"	16.5	8
TNBG-05N	NPT1/2"	MCR-05	16	1/2"	21.3	11
TNBG-06N	NPT3/4"	MCR-06	20	3/4"	26.6	14
TNBG-08N	NPT1"	MCR-08	25	1"	33.4	15
TNBG-10N	NPT1 1/4"	MCR-10	32	11/4"	42.1	15
TNBG-12N	NPT1 1/2"	MCR-12	38	11/2"	47.8	16
TNBG-16N	NPT2"	MCR-16	51	2	59.6	18
