RCCN SKC Tubing Clamp



RCCN SKC Tubing Clamp
RCCN SKC Tubing Clamp

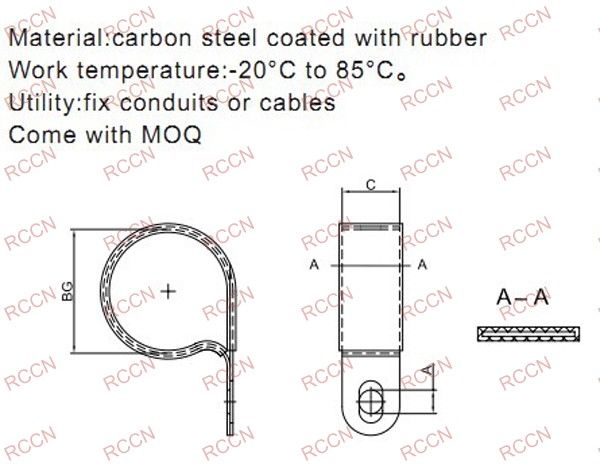

Material:carbon steel coated with rubber
Work temperature:-20°C to 85°C。
Utility:fix conduits or cables
Come with MOQ



Item No.

Inner
dia.
BG


thread
hole
A

Width
C

Thickness


Packing
Pcs

Black White
SKC10B SKC10W 10 10*13 25 1.0 50PCS
SKC13B SKC13W 13 10*13 25 1.0
SKC16B SKC16W 16 10*13 25 1.0
SKC19B SKC19W 19 10*13 25 1.0
SKC20B SKC20W 20 10*13 25 1.0
SKC22B SKC22W 22 10*13 25 1.0
SKC25B SKC25W 25 10*13 25 1.0
SKC29B SKC29W 29 10*13 25 1.0 25PCS
SKC30B SKC30W 30 10*13 25 1.0
SKC32B SKC32W 32 10*13 25 1.0
SKC35B SKC35W 35 10*13 25 1.0
SKC43B SKC43W 43 10*13 25 1.0
SKC46B SKC46W 46 10*13 25 1.0
SKC50B SKC50W 50 10*13 25 1.0
