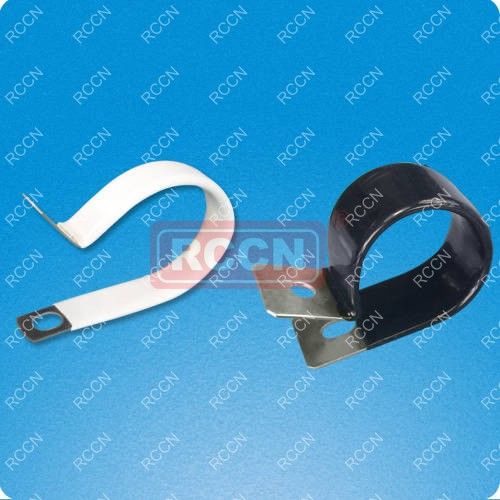

Material:carbon steel coated with rubber Work temperature:-40°C to 150°C。 Utility:fix conduits or cables Come with MOQ

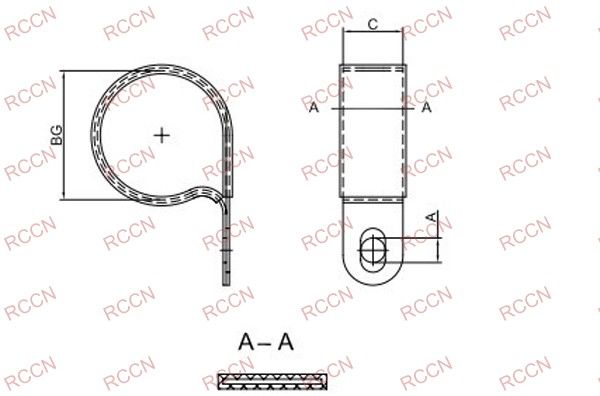

Item No.		RCCN Conduit item no	Conduit outer dia AD	Thread hole A	Width E/C	Thickness F
冷轧钢镀锌	304材质
SKU/M4
SKU BG-07(M4)	SKU BG-07(M4)/304	BG-07	10mm	M4	14/9	0.5
SKU BG-10(M4)	SKU BG-10(M4)/304	BG-10	13mm	M4	14/9	0.5
SKU BG-12(M4)	SKU BG-12(M4)/304	BG-12	15.8mm	M4	14/9	0.5
SKU BG-15(M4)	SKU BG-15(M4)/304	BG-15	18.5mm	M4	14/9	0.5
SKU BG-17(M4)	SKU BG-17(M4)/304	BG-17	21.2mm	M4	14/9	0.5
SKU BG-20(M4)	SKU BG-20(M4)/304	BG-20	25mm	M4	14/9	0.5
SKU BG-23(M4	SKU BG-23(M4/304	BG-23	28.5mm	M4	14/9	0.5
SKU BG-25(M4)	SKU BG-25(M4)/304	BG-25	30.0mm	M4	14/9	0.5
SKU BG-29(M4)	SKU BG-29(M4)/304	BG-29	34.5mm	M4	14/9	0.5
SKU BG-36(M4)	SKU BG-36(M4)/304	BG-36	42.5mm	M4	14/9	0.5
SKU BG-48(M4)	SKU BG-48(M4)/304	BG-48	54.5mm	M4	14/9	0.5
SKU/M6
SKU BG-07(M6)	SKU BG-07(M6)/304	BG-07	10mm	M6	15/12	0.5
SKU BG-10(M6)	SKU BG-10(M6)/304	BG-10	13mm	M6	15/12	0.5
SKU BG-12(M6)	SKU BG-12(M6)/304	BG-12	15.8mm	M6	15/12	0.5
SKU BG-15(M6)	SKU BG-15(M6)/304	BG-15	18.5mm	M6	15/12	0.5
SKU BG-17(M6)	SKU BG-17(M6)/304	BG-17	21.2mm	M6	15/12	0.5
SKU BG-20(M6)	SKU BG-20(M6)/304	BG-20	25mm	M6	15/12	0.5
SKU BG-23(M6)	SKU BG-23(M6)/304	BG-23	28.5mm	M6	15/12	0.5
SKU BG-25(M6)	SKU BG-25(M6)/304	BG-25	30.0mm	M6	15/12	0.5
SKU BG-29(M6)	SKU BG-29(M6)/304	BG-29	34.5mm	M6	15/12	0.5
SKU BG-36(M6)	SKU BG-36(M6)/304	BG-36	42.5mm	M6	15/12	0.5
SKU BG-48(M6)	SKU BG-48(M6)/304	BG-48	54.5mm	M6	15/12	0.5
SKU/M6D
SKU BG-07(M6D)	SKU BG-07(M6D)/304	BG-07	10mm	M6	24.5/20	1.0
SKU BG-10(M6D)	SKU BG-10(M6D)/304	BG-10	13mm	M6	24.5/20	1.0
SKU BG-12(M6D)	SKU BG-12(M6D)/304	BG-12	15.8mm	M6	24.5/20	1.0
SKU BG-15(M6D)	SKU BG-15(M6D)/304	BG-15	18.5mm	M6	24.5/20	1.0
SKU BG-17(M6D)	SKU BG-17(M6D)/304	BG-17	21.2mm	M6	24.5/20	1.0
SKU BG-20(M6D)	SKU BG-20(M6D)/304	BG-20	25mm	M6	24.5/20	1.0
SKU  BG-23(M6D)	SKU BG-23(M6D)/304	BG-23	28.5mm	M6	24.5/20	1.0
SKU BG-25(M6D)	SKU BG-25(M6D)/304	BG-25	30.0mm	M6	24.5/20	1.0
SKU BG-29(M6D)	SKU BG-29(M6D)/304	BG-29	34.5mm	M6	24.5/20	1.0
SKU BG-36(M6D)	SKU BG-36(M6D)/304	BG-36	42.5mm	M6	24.5/20	1.0
SKU BG-48(M6D)	SKU BG-48(M6D)/304	BG-48	54.5mm	M6	24.5/20	1.0
SKU/M8
SKU BG-07(M8)	SKU BG-07(M8)/304	BG-0	10mm	M8	24.5/20	1.0
SKU BG-10(M8)	SKU BG-10(M8)/304	BG-10	13mm	M8	24.5/20	1.0
SKU BG-12(M8)	SKU BG-12(M8)/304	BG-12	15.8mm	M8	24.5/20	1.0
SKU BG-15(M8)	SKU BG-15(M8)/304	BG-15	18.5mm	M8	24.5/20	1.0
SKU BG-17(M8)	SKU BG-17(M8)/304	BG-17	21.2mm	M8	24.5/20	1.0
SKU BG-20(M8)	SKU BG-20(M8)/304	BG-20	25mm	M8	24.5/20	1.0
SKU BG-23(M8)	SKU BG-23(M8)/304	BG-23	28.5mm	M8	24.5/20	1.0
SKU BG-25(M8)	SKU BG-25(M8)/304	BG-25	30.0mm	M8	24.5/20	1.0
SKU BG-29(M8)	SKU BG-29(M8)/304	BG-29	34.5mm	M8	24.5/20	1.0
SKU BG-36(M8)	SKU BG-36(M8)/304	BG-36	42.5mm	M8	24.5/20	1.0
SKU BG-48(M8)	SKU BG-48(M8)/304	BG-48	54.5mm	M8	24.5/20	1.0
SKU/M10
SKU BG-07(M10)	SKU BG-07(M10)/304	BG-07	10mm	M10	30/25	1.0
SKU BG-10(M10)	SKU BG-10(M10)/304	BG-10	13mm	M10	30/25	1.0
SKU BG-12(M10)	SKU BG-12(M10)/304	BG-12	15.8mm	M10	30/25	1.0
SKU BG-15(M10)	SKU BG-15(M10)/304	BG-15	18.5mm	M10	30/25	1.0
SKU BG-17(M10)	SKU BG-17(M10)/304	BG-17	21.2mm	M10	30/25	1.0
SKU BG-20(M10)	SKU BG-20(M10)/304	BG-20	25mm	M10	30/25	1.0
SKU BG-23(M10)	SKU BG-23(M10)/304	BG-23	28.5mm	M10	30/25	1.0
SKU BG-25(M10)	SKU BG-25(M10)/304	BG-25	30.0mm	M10	30/25	1.0
SKU BG-29(M10)	SKU BG-29(M10)/304	BG-29	34.5mm	M10	30/25	1.0
SKU BG-36(M10)	SKU BG-36(M10)/304	BG-36	42.5mm	M10	30/25	1.0
SKU BG-48(M10)	SKU BG-48(M10)/304	BG-48	54.5mm	M10	30/25	1.0
SKU BG-70(M10)	SKU BG-70(M10)/304	BG-67	70.0mm	M10	30/25	1.0
