RCCN>>Product>>Cable Gland>> RCCN SRP-L Sealing Plugs

RCCN SRP-L Sealing Plugs

RCCN SRP-L Sealing Plugs


RCCN SRP-L Sealing Plugs


RCCN SRP-L Sealing Plugs
Materiral:rubber Certificates:SGS。
Operate temperature:-40°C to 85°C。

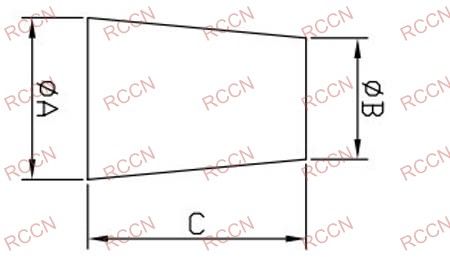

Item No.



A



B



C

suitable
connector
thread range

Std.Pkg
SRP-0512LB 12 5 20 5-12 50PCS
SRP-0815LB 15 8 20 8-15
SRP-1520LB 20 15 27 15-20
SRP-2025LB 25 20 27 20-25
SRP-2532LB 32 25 27 25-32
SRP-3238LB 38 32 27 32-38 25PCS
SRP-3744LB 44 37 27 37-44








 RCCN SRP-L Sealing Plugs
