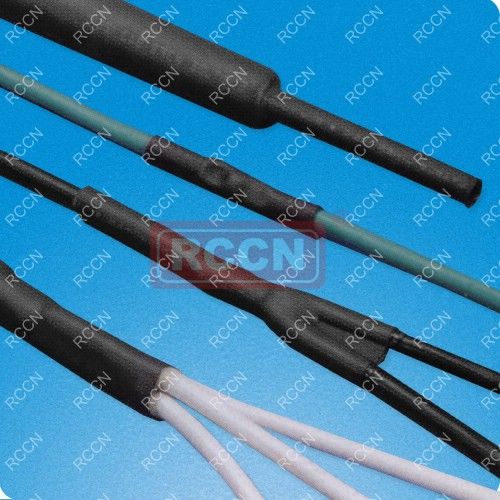

日成含胶W3F2型柔软厚胶热收缩套管
   |
|
材 质：外层:软质、阻燃、环保、无卤、照射交连PE复合物制成. |
|
|
收缩前 |
收缩后 |
包装 Std.Pkg. M |
||||
| 内径 D |
|
内径D1 |
|
|||||
| W3F2-1/8 | 1/8 | Φ3.2 | ≥ 3.2 | 0.45±0.10 | ≤1.0 | 0.95±0.15 | 200 | 1.0~3.1 |
| W3F2-3/16 | 3/16 | Φ4.8 | ≥ 4.8 | 0.60±0.10 | ≤1.6 | 1.20±0.15 | 100 | 1.8~4.6 |
| W3F2-1/4 | 1/4 | Φ6.4 | ≥ 6.4 | 0.70±0.10 | ≤2.2 | 1.35±0.15 | 100 | 2.4~6.4 |
| W3F2-5/16 | 5/16 | Φ7.9 | ≥ 7.9 | 0.75±0.10 | ≤2.7 | 1.50±0.15 | 100 | 2.9~7.7 |
| W3F2-3/8 | 3/8 | Φ9.5 | ≥ 9.5 | 0.85±0.10 | ≤3.2 | 1.65±0.15 | 50 | 3.4~9.4 |
| W3F2-1/2 | 1/2 | Φ12.7 | ≥ 12.7 | 0.90±0.10 | ≤4.2 | 1.80±0.20 | 1.22米/支 | 4.4~12.5 |
| W3F2-5/8 | 5/8 | Φ15 | ≥ 15.0 | 0.90±0.10 | ≤5.2 | 1.80±0.20 | 1.22米/支 | 5.4~14.8 |
| W3F2-3/4 | 3/4 | Φ19.1 | ≥ 19.0 | 1.00±0.10 | ≤6.3 | 2.00±0.20 | 1.22米/支 | 6.5~18.8 |
| W3F2-1 | 1 | Φ25.4 | ≥ 25.4 | 1.05±0.10 | ≤8.5 | 2.10±0.20 | 1.22米/支 | 8.8~25 |
| W3F2-1 1/4 | 1 1/4 | Φ30 | ≥ 30.0 | 1.05±0.10 | ≤10.2 | 2.20±0.20 | 1.22米/支 | 11~30 |
| W3F2-1 1/2 | 1 1/ | Φ38.1 | ≥ 38.1 | 1.15±0.10 | ≤13.5 | 2.40±0.20 | 1.22米/支 | 14~40 |
