FLEXIBLE STRAIN RELIEF BUSHING
Region > China Richeng > ProDUCT > Bushings > FLEXIBLE STRAIN RELIEF BUSHING
Product Information:

086-3 RCCN FLEXIBLE STRAIN RELIEF BUSHING

Pasacables a prei¨®n 90¡ã - con protector de cable -


Material: UL approved Nylon 66, 94V-2 (Black)

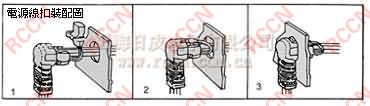

Assemlby according to photoes sequence above.
Protect power cable from computer, house appliance or electronic/electrical
equipment when power cable run out from bottom of equipment.
Strain relief design protect power cord from breakage.

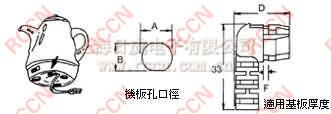

UNIT : mm
Item No.
Cross
Section Shape
Wires Accomodated
Mounting Hole
Part L.
D.
Max. Chassis
Thickness
F
Packing
U.L Ïß
³ß´ç
 A B
SR-F42LF ±âÐÍFlat SPT-2 3.3X6.6 12.7X13.2 10.9 20.5 1.5~2.0
100pcs
3.6X7.2 13.2X13.7
